Summary
This function Show or Hide annotations for rebar, tendons, steel, bolts, and studs.
How to Run
[CIM View Mode]

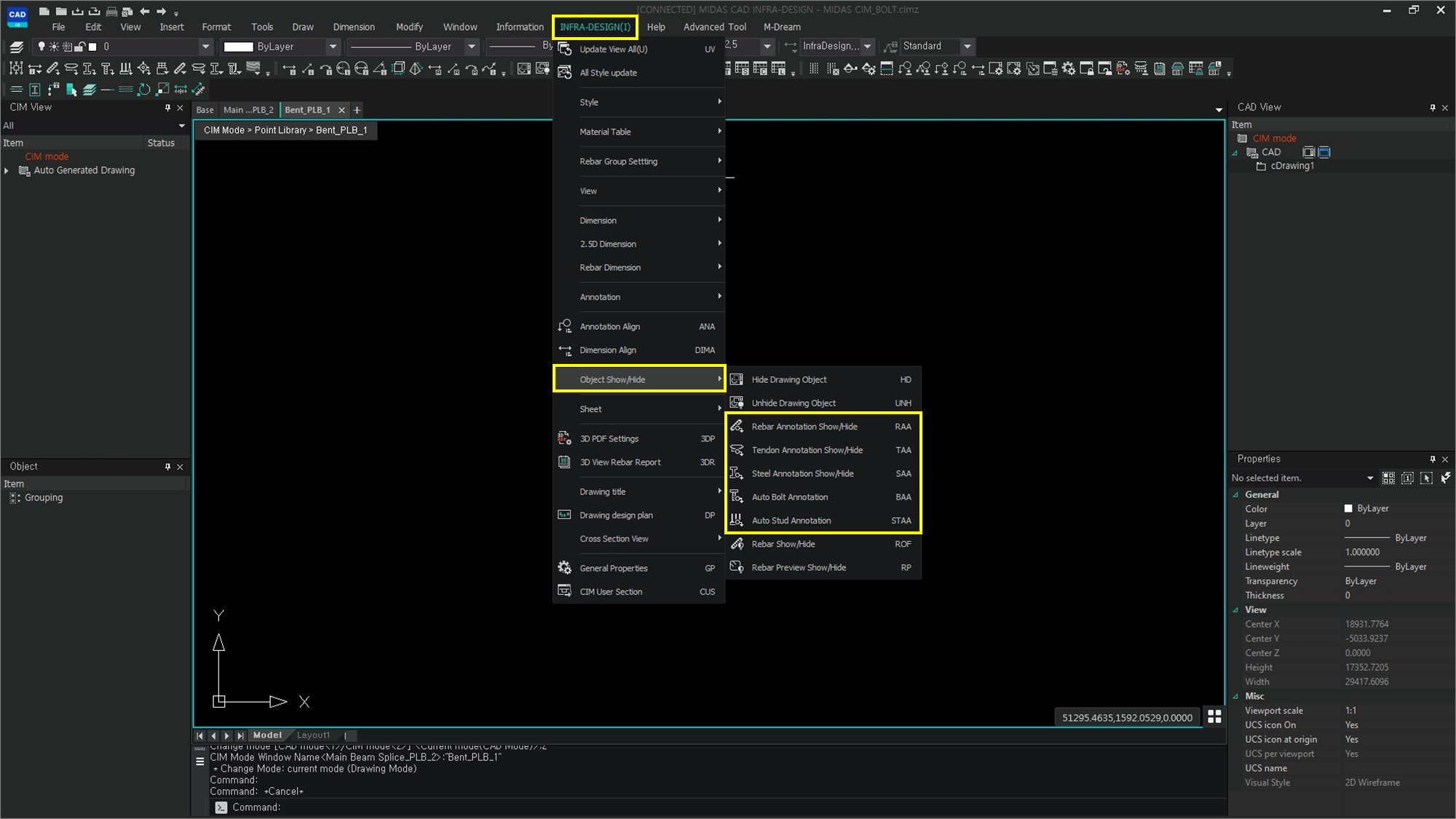

Ribbon Menu > [INFRA-DESIGN] Tab > Object Show/Hide >
Rebar [RAA] / Tendon [TAA] / Steel [SAA] / Bolt [BAA] / Stud [STAA] Annotation Show/Hide
Explanation
How to show and hide detailed object annotations.
The annotation show and hide command can be executed for each object, or the annotation show and hide function can be executed for detailed objects in the object show and hide function of the INFRA-DESIGN menu tab.
Run
[Command]

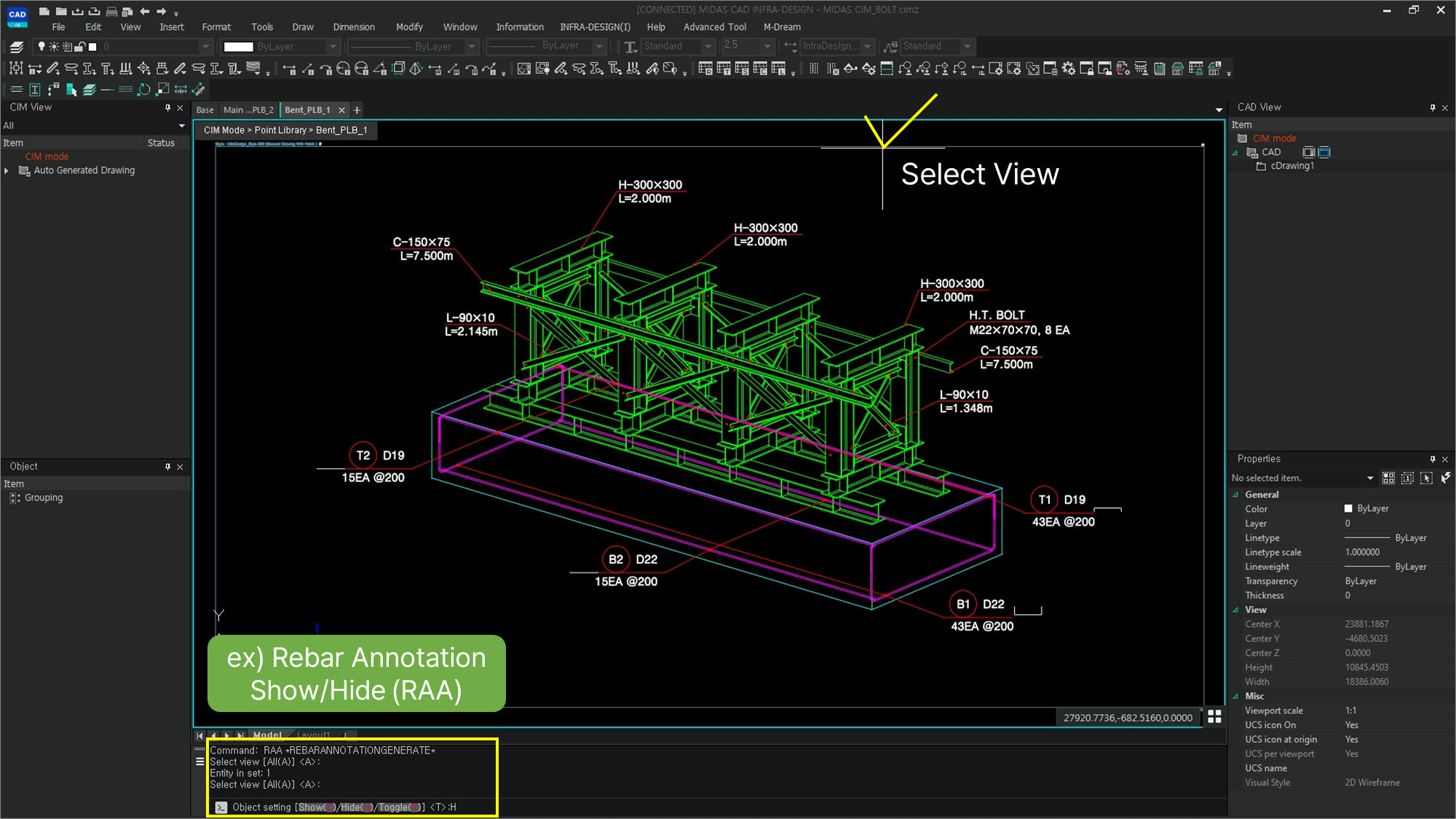

Select view [All(A)] <A> :
Directly select the single-section view to which the function will be applied, or enter A (All) to apply it to
all single-section views.
Object settings [Show (S)/Hide(H)/Toggle(T) <T> :
If you select Show (S) , annotations will be turned on so that they can be displayed.
If you select Hide(H), annotations will be turned off so that they can be hidden.
Selecting Toggle(T) will turn off annotations if they are currently on, and turn them on if they are currently off.

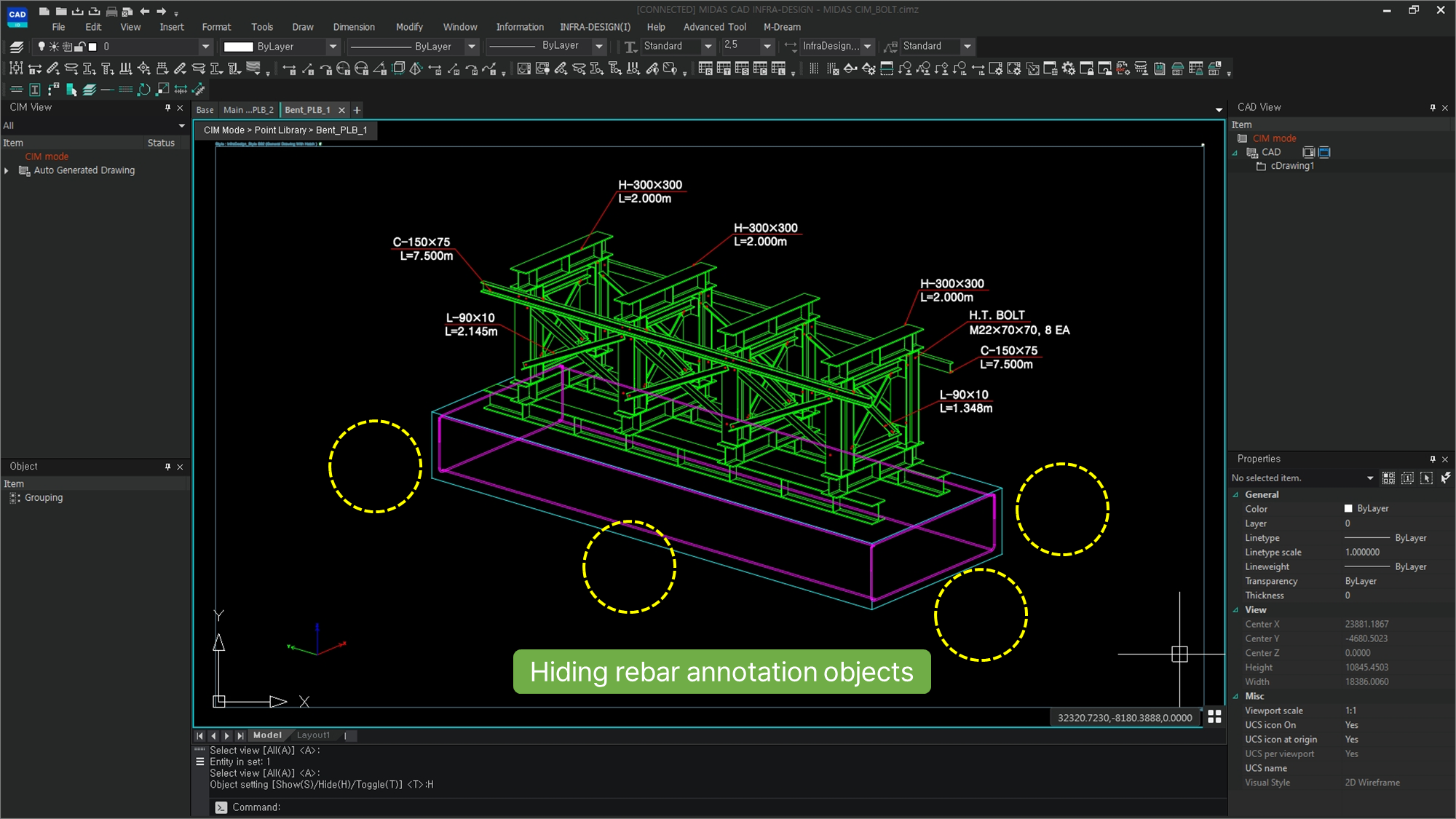

Result of hiding rebar annotation objects
