Summary
This is a function to hide or make visible elements such as objects or annotations in the section view created from CIM.
How to Run
[CIM View Mode]

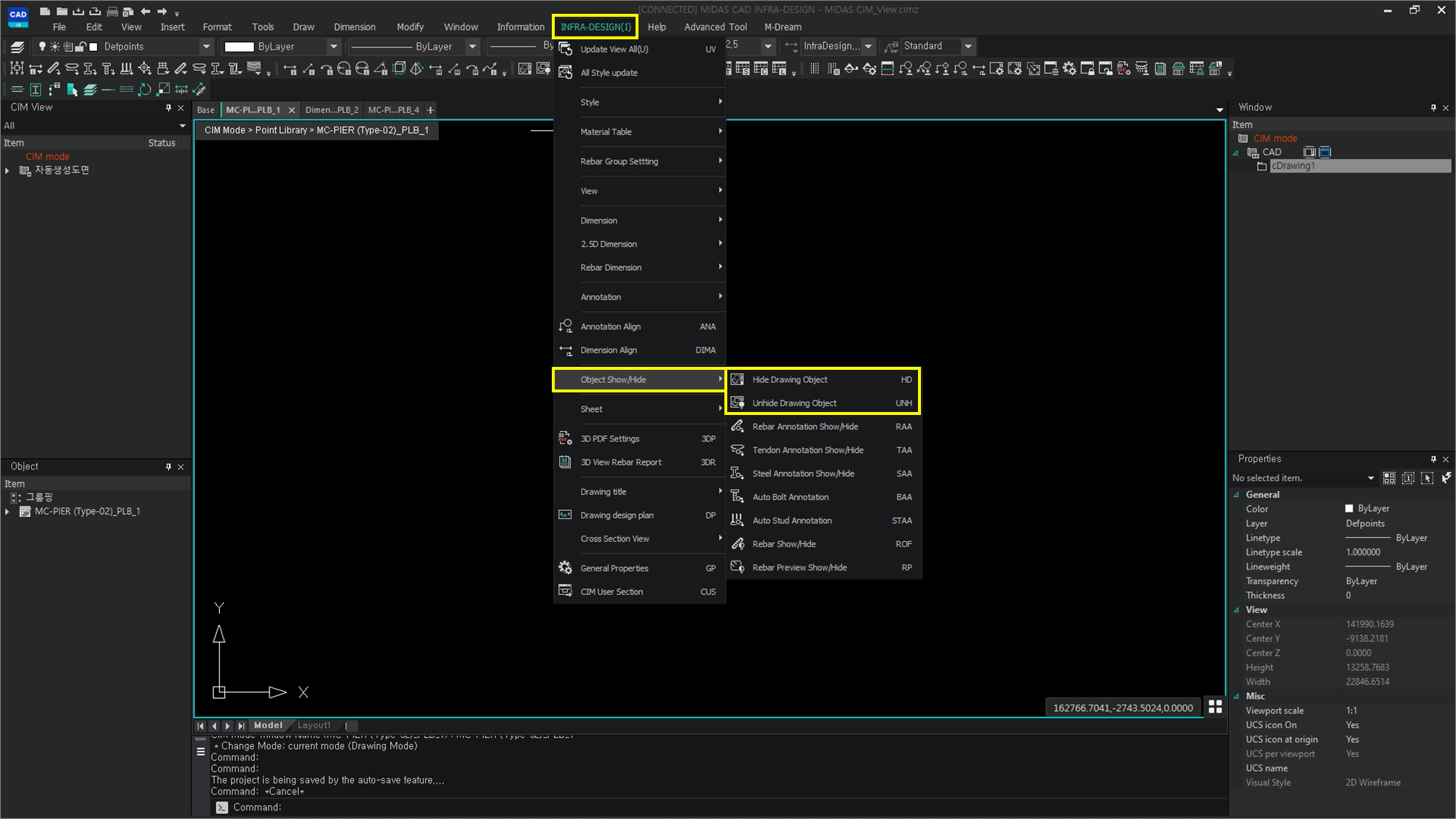

Ribbon Menu > [INFRA-DESIGN] Tab > Object Show/Hide > Hide Drawing Object [HD] / Unhide Drawing Object [UNH]
Explanation
How to use Hide or Unhide Select Object.
Run the Hide Drawing Object [HD] / Unhide Drawing Object [UNH] command or execute the Object Show/Hide function of the INFRA-DESIGN menu tab.
Hide Drawing Object [HD]
[Command]
Select Object Type [All(All) / Member Only(MO) / Rebar Only(RO) / Stiffener Only(SO) / Bolt&Stud Only(BO) / Tendon Only(TO) / Annotation Only(AO) <All> : Enter
Select the objects you want to hide on the screen and apply a filter.
In normal cases, selecting the All type will hide the specified objects from the screen.

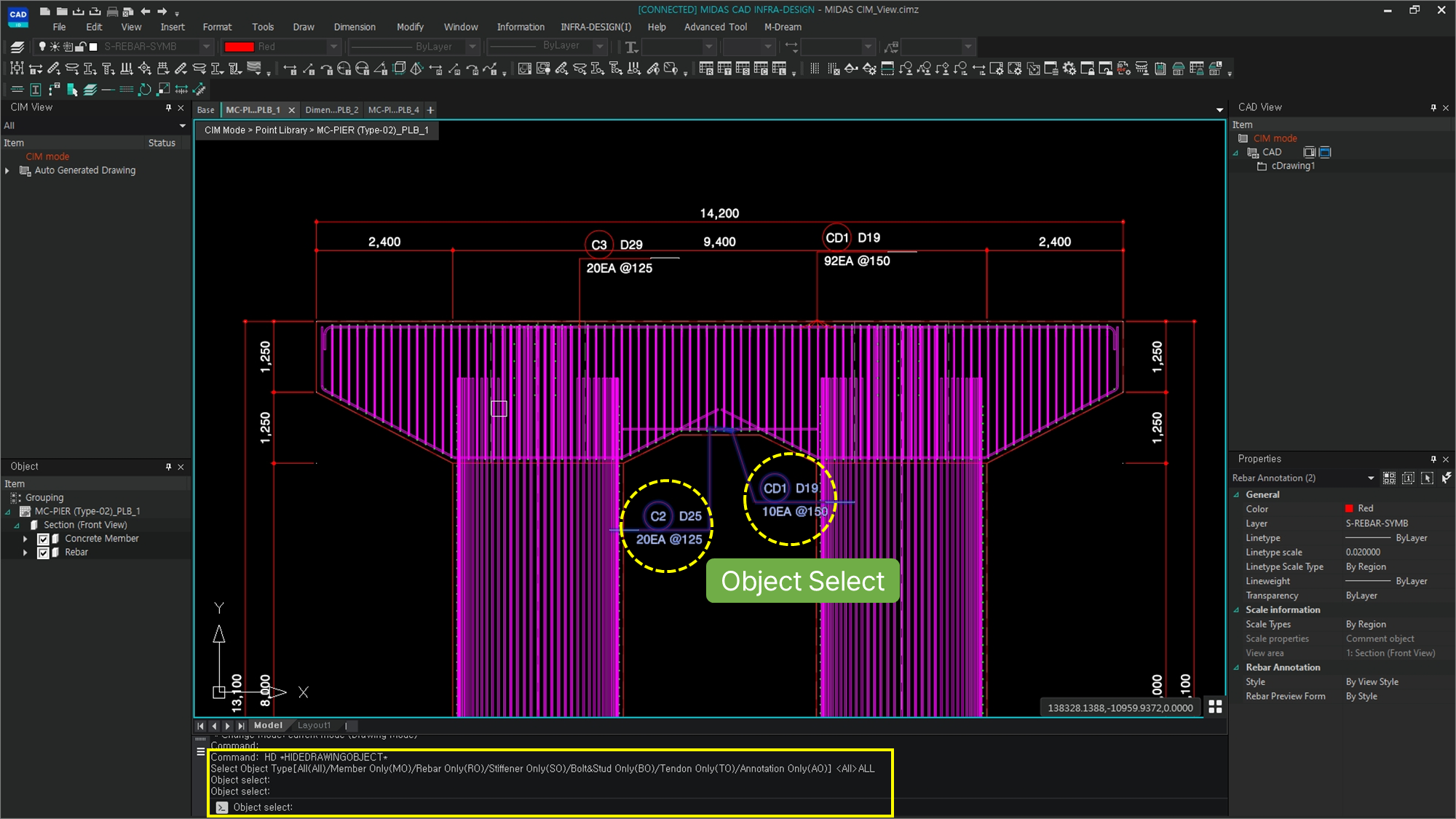

Object select : Select the object you want to hide and press Enter.
(To prevent malfunction of the function, objects can be selected one by one.)
Unhide Drawing Object [UNH]
[Command]
Select Object Type [All(All) / Member Only(MO) / Rebar Only(RO) / Stiffener Only(SO) / Bolt&Stud Only(BO) / Tendon Only(TO) / Annotation Only(AO) <All> : Enter Select and apply filters to objects to be displayed on the screen.
In normal cases, if you select the All type, all hidden objects will be visible.

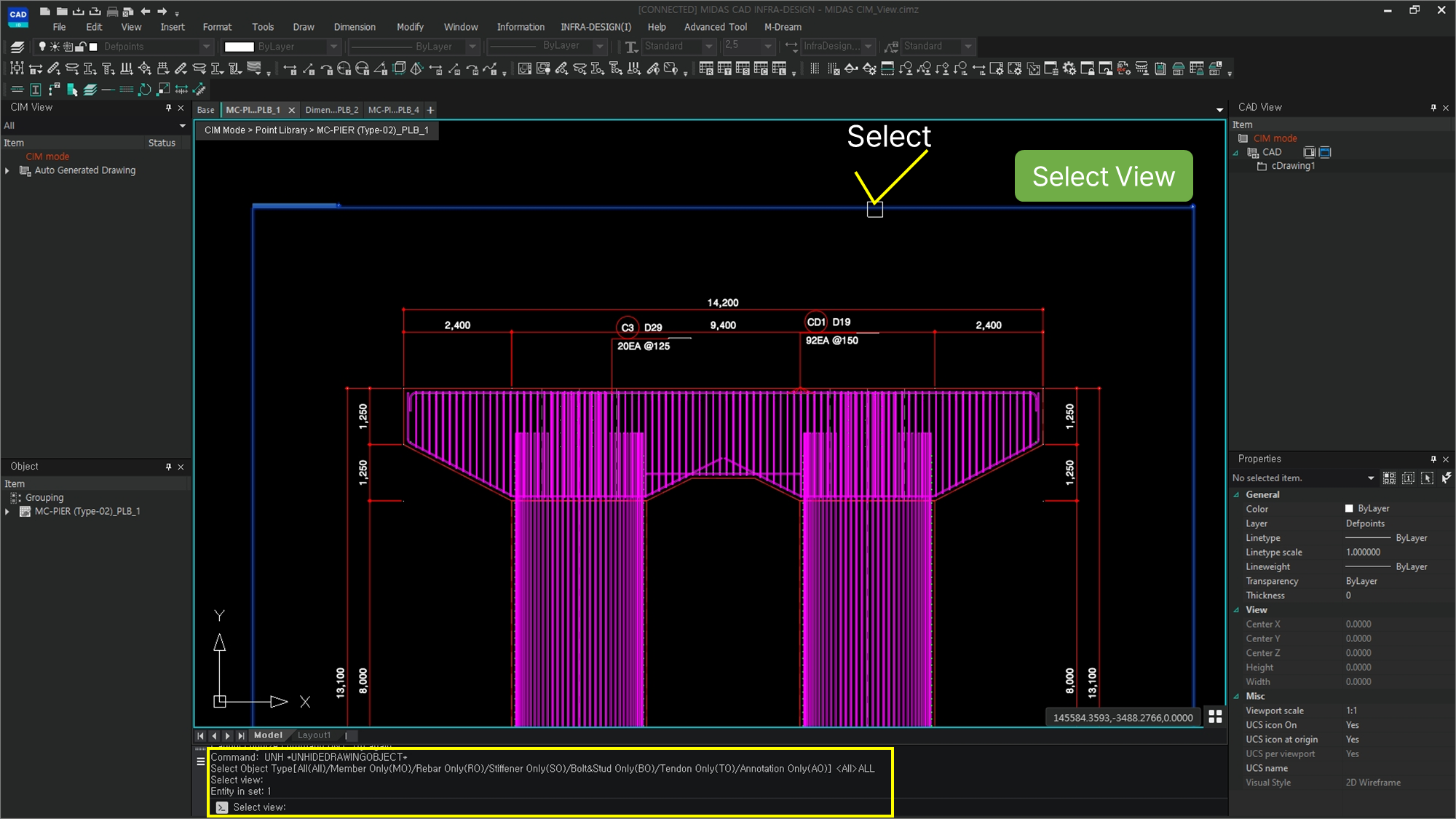

Object select : Select the section view and press Enter.
(When applying the All type, all objects hidden in the corresponding section view are made visible.)
