Summary
This function sets up the placement of a cross-sectional view drawn in CIM View Mode on a sheet.
By defining the sheet area and pre-placing library sections within it, you can save and reuse the corresponding CIM Library file without needing a separate sheet setting process, even when reusing it after exporting and importing.
How to Run
[CIM View Mode]

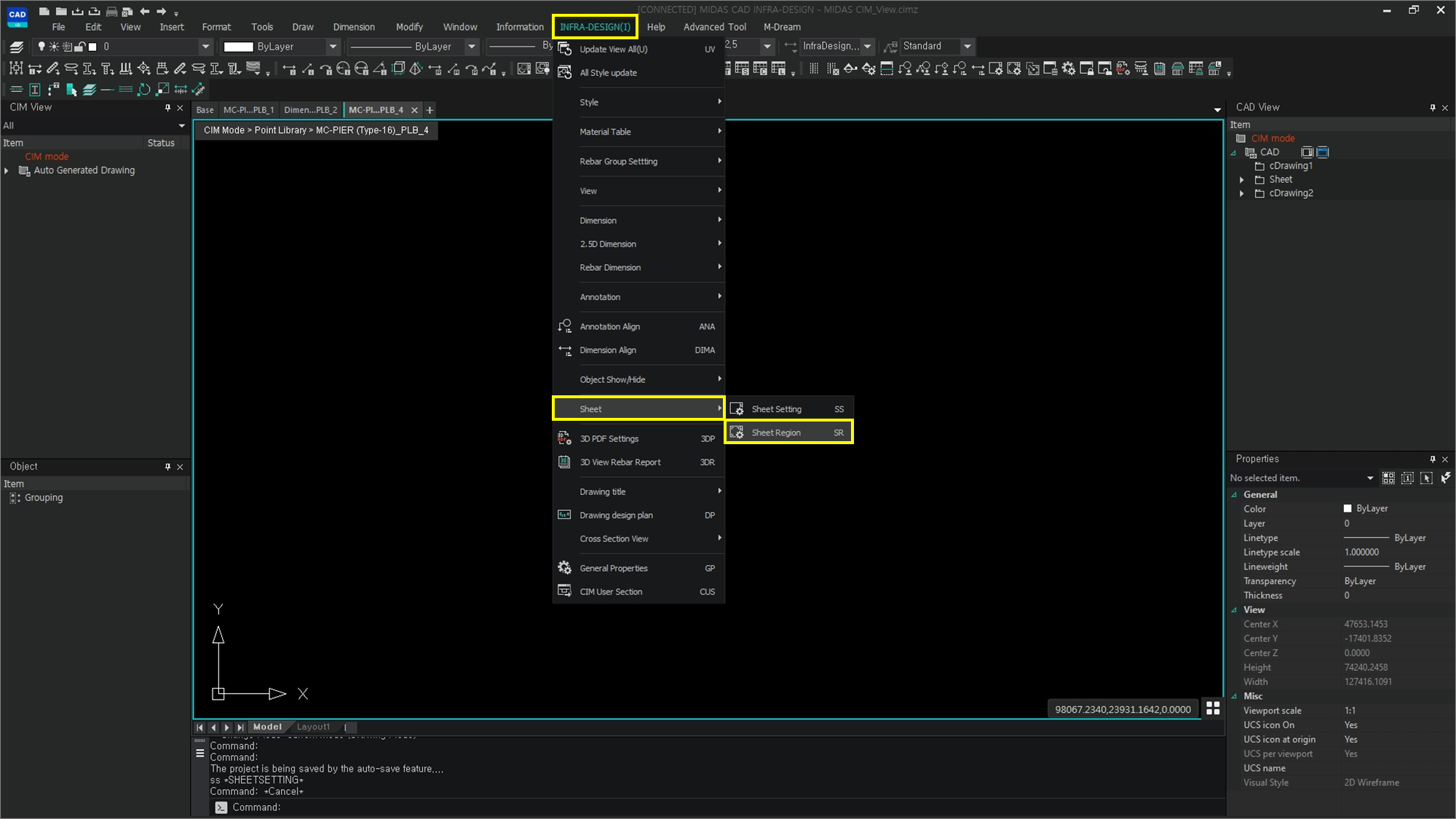

Ribbon Menu > [INFRA-DESIGN] Tab > Sheet > Sheet Region [SR]
Explanation
How to Sheet Setting.
The Sheet Region [SR] command can be executed or accessed through the Sheet Region function under the INFRA-DESIGN menu tab.

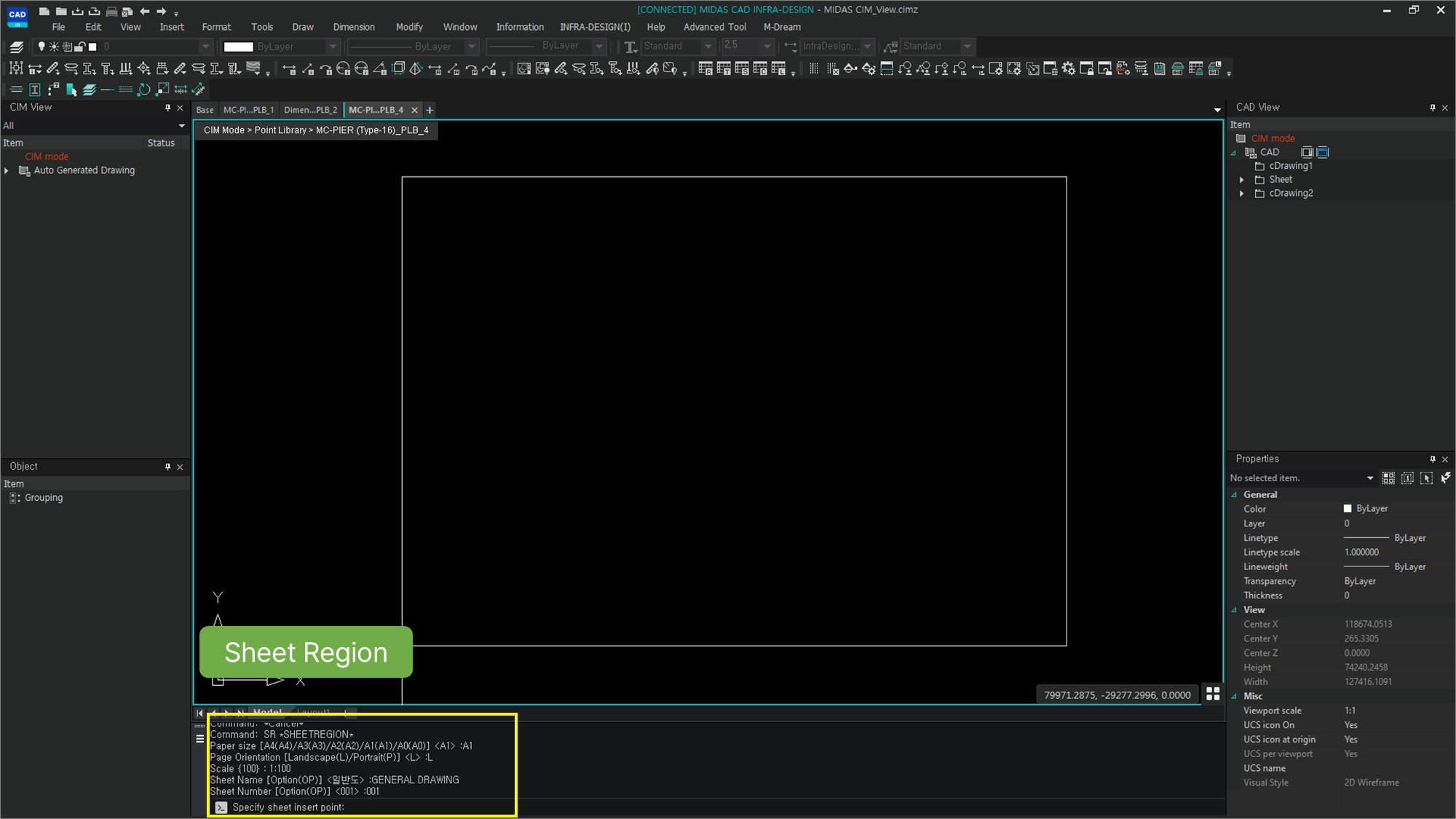

[Run]
[Command]
Paper size [A4(A4)/A3(A3)/ A2(A2)/ A1(A1)/ A0(A0)] <A1> : A1
Set the paper size on which to place the single sided section.
Page Orientation [Landscape(L)/Portrait(P)] <L> : L Set the paper orientation. (horizontal or vertical)
Scale {100} : 1:100
Enter a scale value for the sheet.
Sheet Name [Option(OP)] : GENERAL DRAWING
Enter a name to manage the sheet.
If not entered, the view area name will be used. Entering Option OP will bring up the sheet settings window.
Sheet Number [Option(OP)] <001> : 001
Enter the number to manage the sheet.
Sheet Region feature is applicable only to Views created from the Library.
(The feature is not executed in the BASE and CAD mode.)
[How to utilize the Sheet Region]
① Execute the function.
② Set paper size : A1
③ Set paper orientation : L
④ Set scale : 1:100
⑤ Set Sheet Name : Check and apply in option settings
⑥ Position the sheet.
⑦ Place on the work screen : CAD View Mode New window placed on work screen
