Summary
This function sets up the sheet before drawing in CAD View Mode by placing the section view drawn in CIM View Mode onto the sheet area.
How to Run
[CIM View Mode]

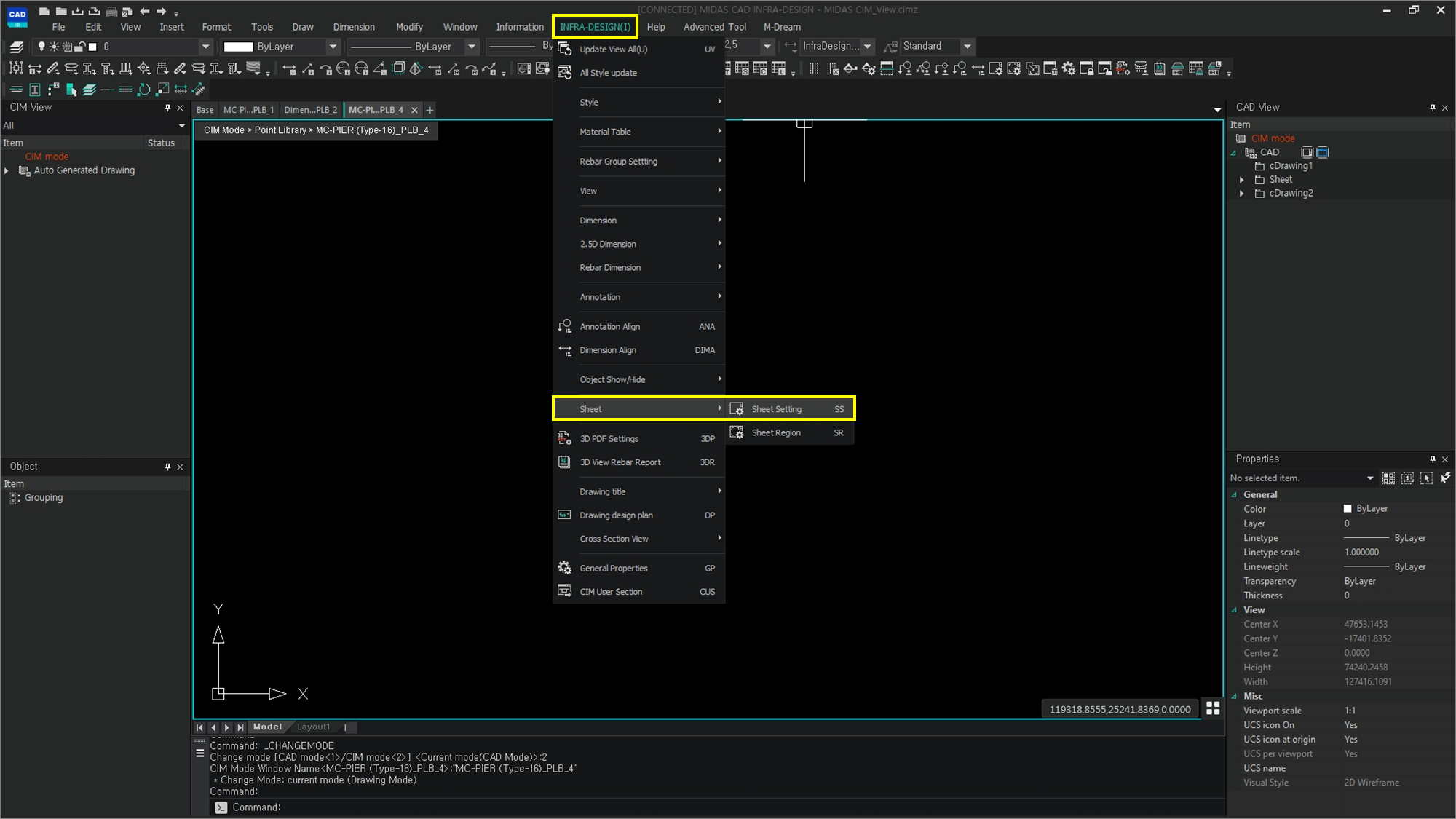

Ribbon Menu > [INFRA-DESIGN] Tab > Sheet > Sheet Setting [SS]
Explanation
How to Sheet Setting.
The Sheet Setting [SS] command can be executed or accessed through the Sheet Setting function under the INFRA-DESIGN menu tab.

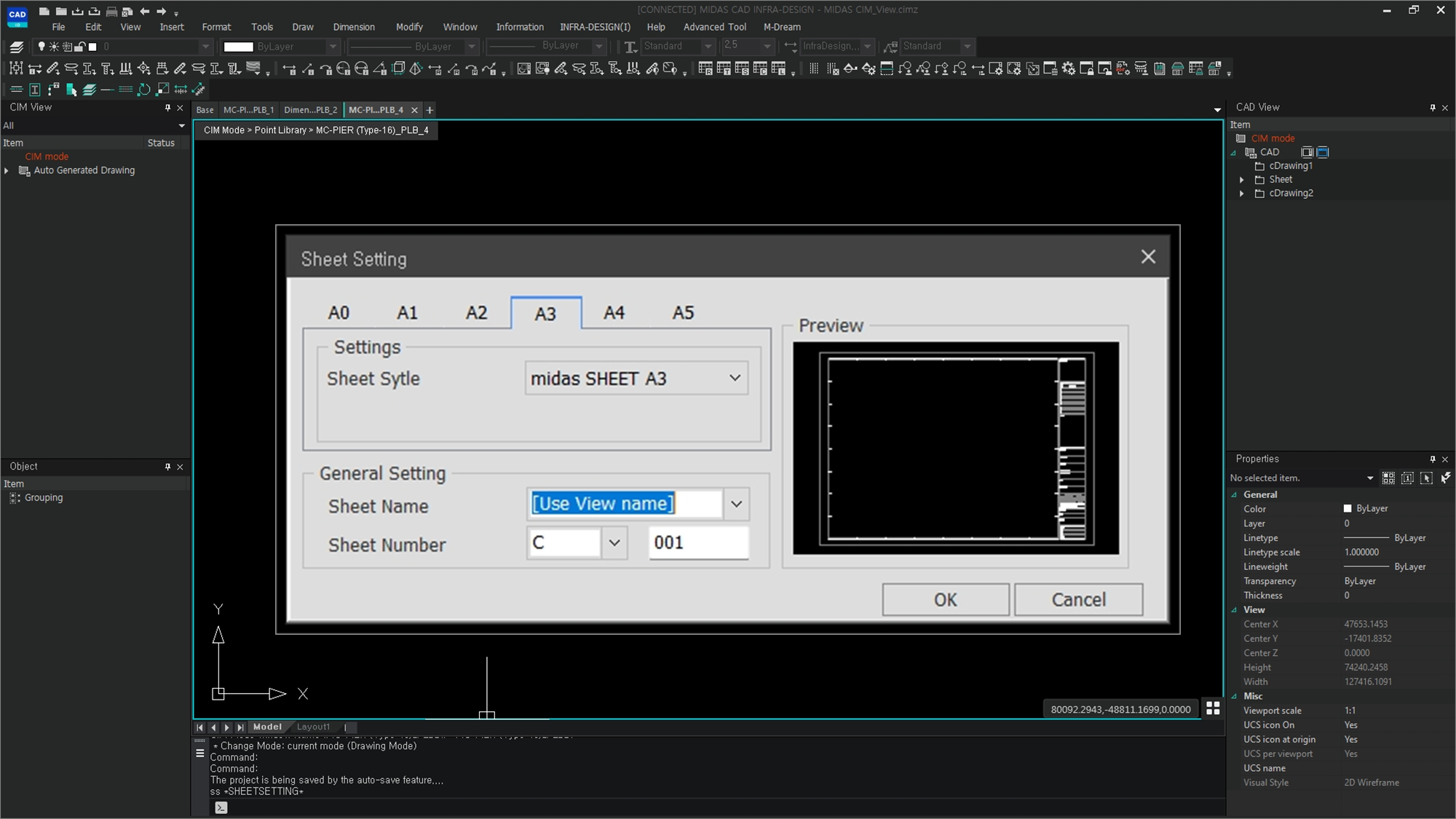

[Sheet Setting]
This is a function to preset sheet blocks for each paper size.
* Use sheet blocks according to the paper size set in the sheet format definition.
* For the feature to define the sheet, refer to the feature description page on the right - Define Sheet Format
Sheet Style :
Set sheets for each paper size.
The default sheet style is midas SHEET for each size.
Sheet Name :
Set a name to apply to each sheet.
The set name will be used as the name of the drawing in the sheet area settings.
Sheet Number :
Set the drawing number to be managed as a sheet.
Preview :
Preview the shape of the selected sheet.
