Summary
This is a function that allows you to customize input when manual input is required among the quantities in the earthwork quantity table created in the Create Cross Section View function.
How to Run
[CIM View Mode]

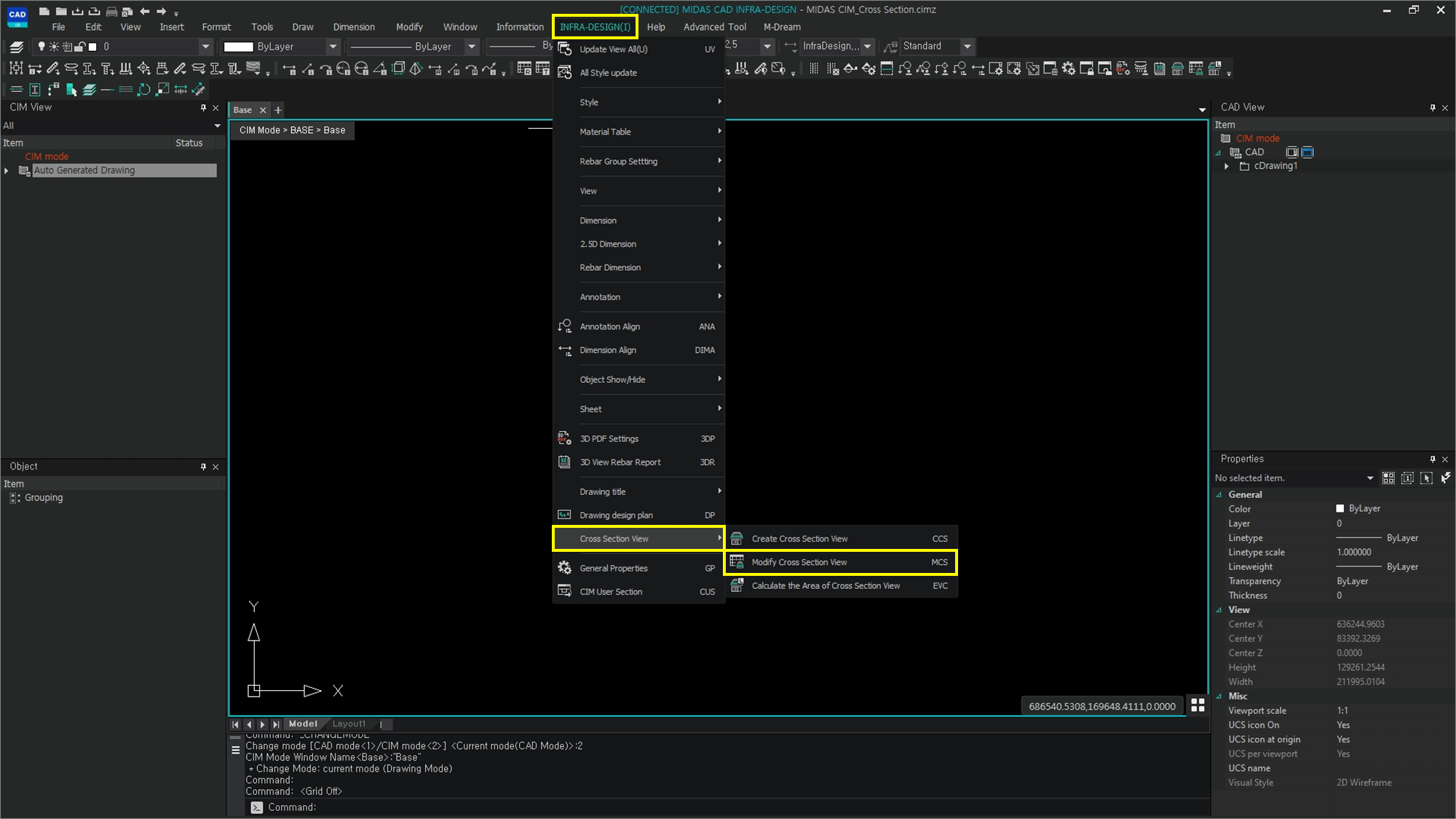

Ribbon Menu > [INFRA-DESIGN] Tab > Cross Section View > Modify Cross Section View [MCS]
Explanation
How to use Create cross section view.
Run the Modify Cross Section View [MCS] command or execute the Modify Cross Section View function in the Cross Section View of the INFRA-DESIGN menu tab.

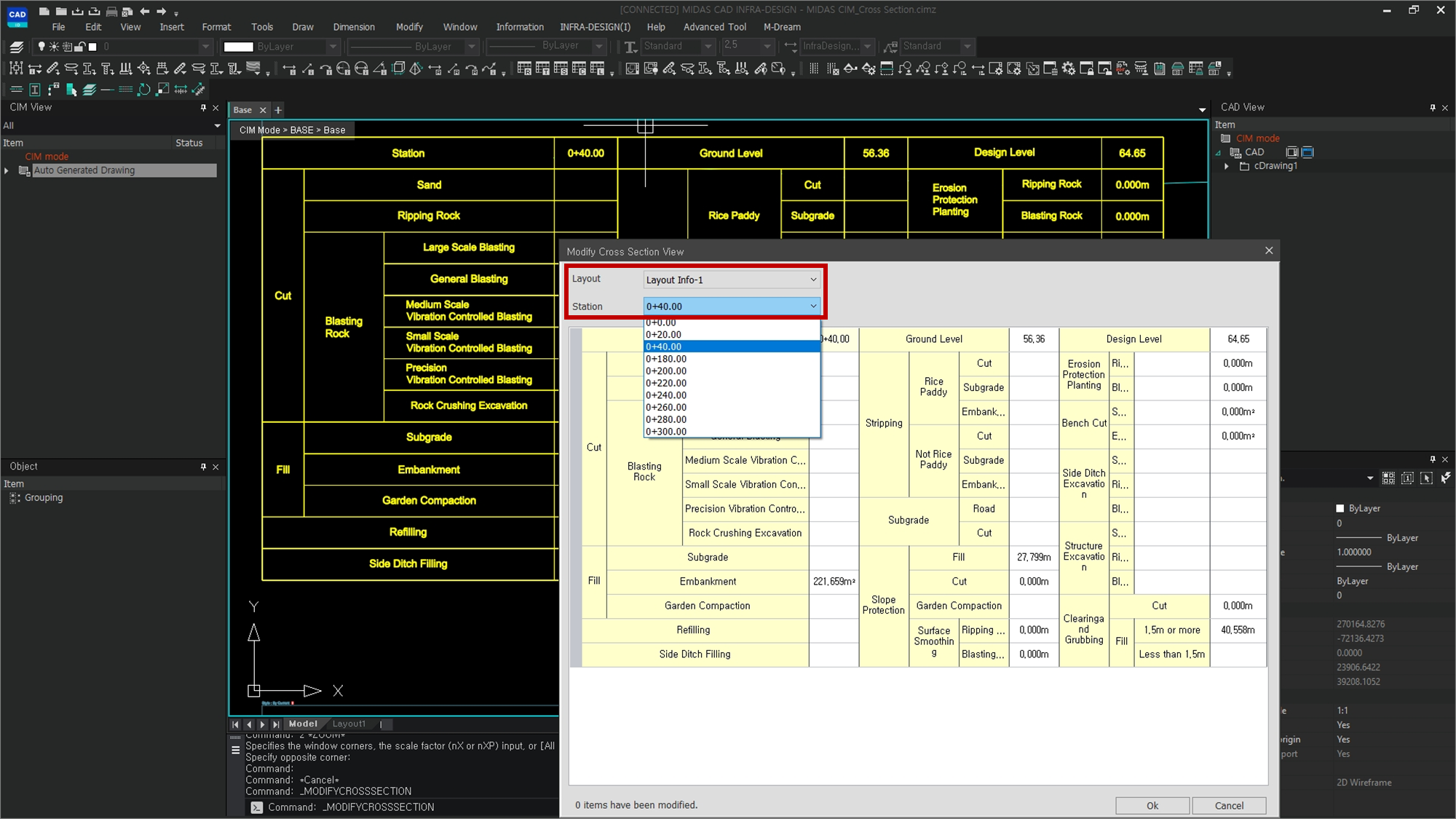

[Earthwork Quantity Table]
If manual input is required among the quantities in the earthwork quantity table generated from the cross section creation function, you can customize it.
Layout : Select the layout used when create cross section view.
Station : You can select a cross section by station.
Earthwork Quantity Table : You can modify the quantity of the selected earthwork quantity table.
[Video of using the earthwork quantity table modification function]
The earthwork quantity table modification function can be checked from 03:45 to 04:20.
