Prestress Created Edited

Post-tension Tendon Property

1. Description

This component operates the Post-tension Tendon Property function in Civil NX.
Define the tendon properties such as tendon area and instantaneous prestress losses.

The Post-tension Tendon Property function can be found in the Civil NX main menu,select
[Load] Tab > [Prestress] Tab > [Prestress Loads] Group > [Tendon Property] Menu

2. Grasshopper Path



[Midas] > [Prestress] > [Post-tension Tendon Property]

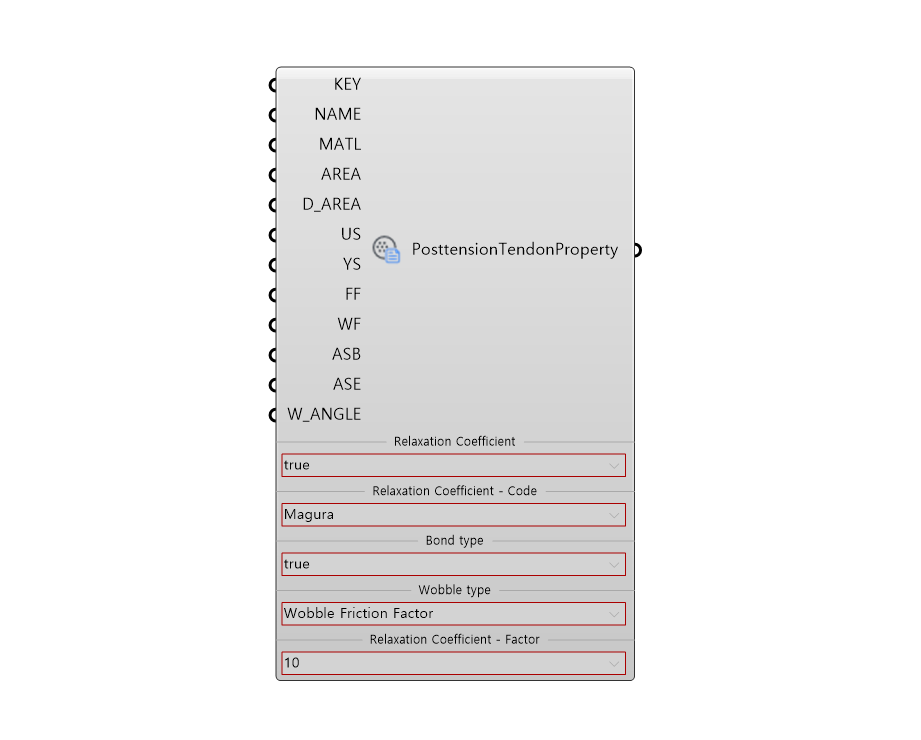

Code Group1 - Magura, IRC:18-2000, IRC:112-2011, KSCE LSD15

3. Component Image


4. Input/Output Value



  • Input Data
Index Name Description Type Default

Previous
Component
1 KEY Tendon Property ID Integer - -
2 NAME Tendon Name String - -
3 MATL Tendon Material No. Integer - -
4 AREA Total Tendon Area Real - -
5 D_AREA Diameter Real - -
6 US Ultimate Strength Real 0 -
7 YS Yield Strength Real 0 -
8 FF Curvature Friction Factor Real 0 -
9 WF ** Wobble Friction Factor Real 0 -
10 ASB Anchorage Slip - Begin Real 0 -
11 ASE Anchorage Slip - End Real 0 -
12 W_ANGLE *** Unintentional Angular Disp. Real 0 -
13 Relaxation Coefficient Activation Relaxation Coefficient Select true -
14 Bond Type Bond Type

· True : Bonded
· false : Unbonded

 Select true -
15 Wobble Type Wobble Type Select Wobble Friction Factor -
16 Relaxation Coefficient
- Factor * 		Factor of Relaxation Coefficient

· Megura : 10 / 45
· IRC : Normal / Low
· KSCE : Ordinary
   /Low / Hot Rolled

 Select 10
Normal
Ordinary		 -



Activation Condition
* Only for if Relaxation Coefficient is true
 ** Only for if Wobble Type is Wobble Friction Factor
*** Only for if Wobble Type is Unintentional Angular Displacement(k)

  • Output Data
Index Command Description Type Method

Next
Component
1 TDNT Create Post-tension Tendon Property
(Magura, IRC:18-2000, IRC:112-2011, KSCE LSD15)		 Json PUT/DELETE -

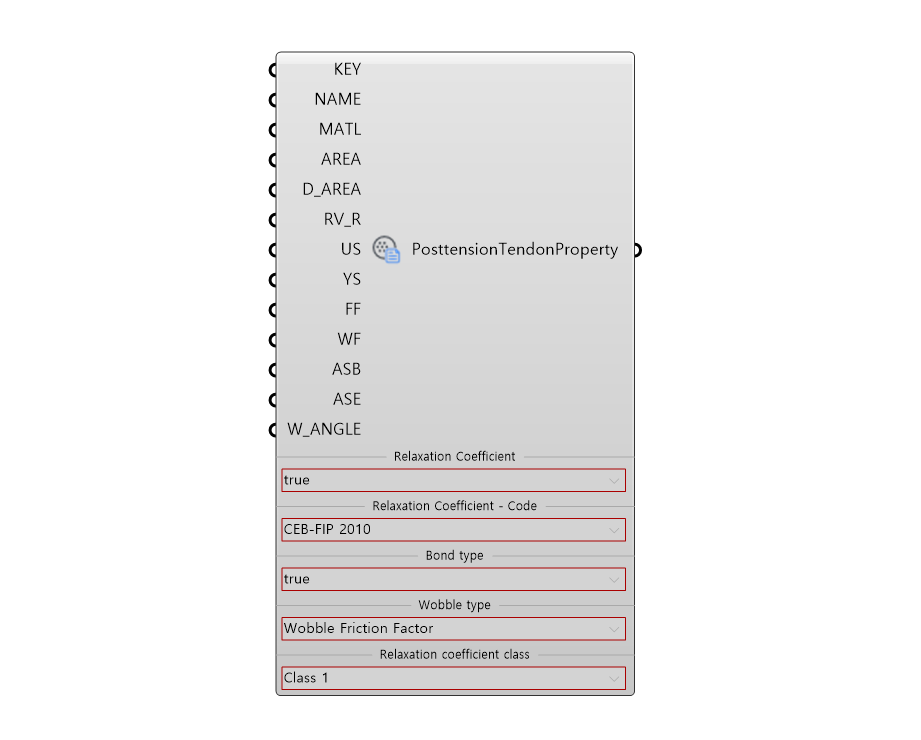

Code Group2 - CEB-FIP 1978, 1990, 2010, European

3. Component Image


4. Input/Output Value



  • Input Data
Index Name Description Type Default

Previous
Component
1 KEY Tendon Property ID Integer - -
2 NAME Tendon Name String - -
3 MATL Tendon Material No. Integer - -
4 AREA Total Tendon Area Real - -
5 D_AREA Diameter Real - -
6-1 RV_R * Factor of Relaxation Coefficient
(CEB-FIP Only)		 Real 0 -
6-2 Relaxation Coefficient
- Factor * 		Factor of Relaxation Coefficient
(European Only)

· European :Ordinary /
Low / Hot Rolled

 Select Ordinary -
7 US Ultimate Strength Real 0 -
8 YS Yield Strength Real 0 -
8 FF Curvature Friction Factor Real 0 -
9 WF ** Wobble Friction Factor Real 0 -
10 ASB Anchorage Slip - Begin Real 0 -
11 ASE Anchorage Slip - End Real 0 -
12 W_ANGLE *** Unintentional Angular Disp. Real 0 -
13 Relaxation Coefficient Activation Relaxation Coefficient Select true -
14 Bond Type Bond Type

· True : Bonded
· false : Unbonded

 Select true -
15 Wobble Type Wobble Type Select Wobble Friction Factor -
16 Relaxation Coefficient
Class * 		Class of Relaxation Coefficient

· CEB-FIP 2010 : Class 1,2,3

 Select Class 1 -



Activation Condition
* Only for if Relaxation Coefficient is true
** Only for if Wobble Type is Wobble Friction Factor
*** Only for if Wobble Type is Unintentional Angular Displacement(k)

  • Output Data
Index Command Description Type Method

Next
Component
1 TDNT Create Post-tension Tendon Property
(CEB-FIP 1978, 1990, 2010, European)		 Json PUT/DELETE -

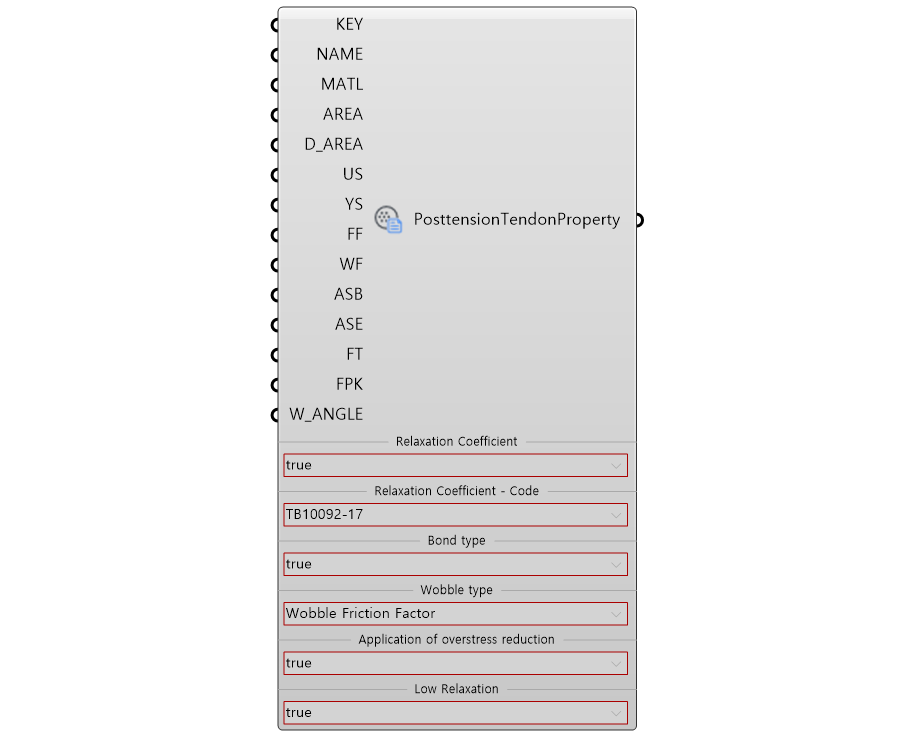

Code Group3 - TB05, TB10092-17, Q/CR 9300-18

3. Component Image


4. Input/Output Value



  • Input Data
Index Name Description Type Default

Previous
Component
1 KEY Tendon Property ID Integer - -
2 NAME Tendon Name String - -
3 MATL Tendon Material No. Integer - -
4 AREA Total Tendon Area Real - -
5 D_AREA Diameter Real - -
6 US Ultimate Strength Real 0 -
7 YS Yield Strength Real 0 -
8 FF Curvature Friction Factor Real 0 -
9 WF ** Wobble Friction Factor Real 0 -
10 ASB Anchorage Slip - Begin Real 0 -
11 ASE Anchorage Slip - End Real 0 -
12 FT * Factor of Relaxation Coefficient Real - -
13 FPK Characteristic Value of Strength Real - -
14 W_ANGLE *** Unintentional Angular Disp. Real 0 -
15 Relaxation Coefficient Activation Relaxation Coefficient Select true -
16 Bond Type Bond Type

· True : Bonded
· false : Unbonded

 Select true -
17 Wobble Type Wobble Type Select Wobble Friction Factor -
18 Application of Overstress Reduction Factor Application of Overstress Reduction Factor Select true -
19 Low Relaxation Low Relaxation Select true -



Activation Condition
* Only for if Relaxation Coefficient is true
** Only for if Wobble Type is Wobble Friction Factor
*** Only for if Wobble Type is Unintentional Angular Displacement(k)

  • Output Data
Index Command Description Type Method

Next
Component
1 TDNT Create Post-tension Tendon Property (TB05, TB10092-17, Q/CR 9300-18) Json PUT/DELETE -

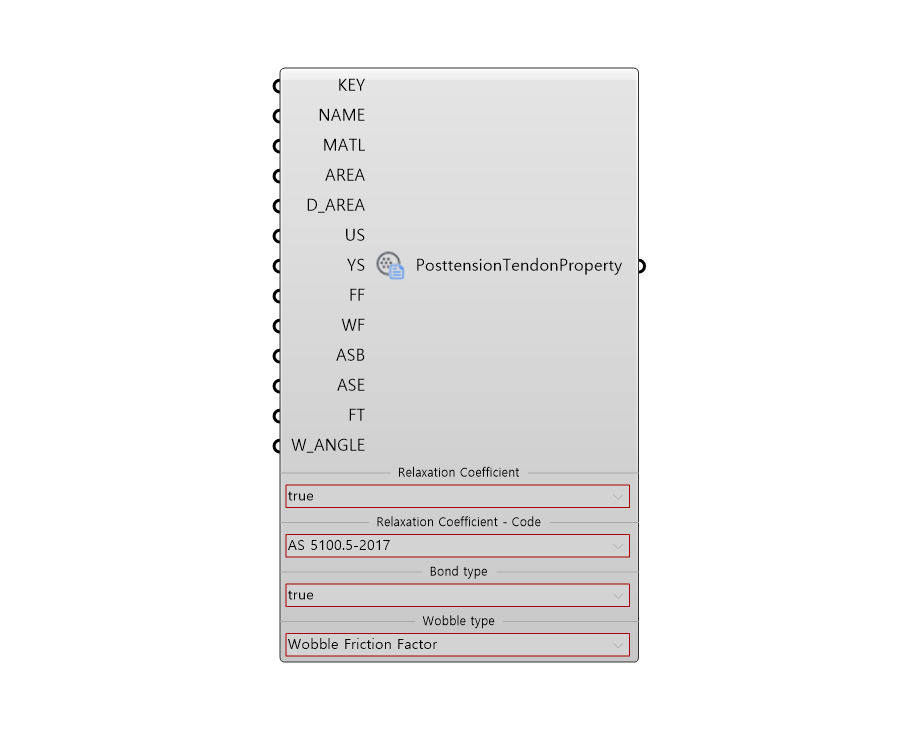

Code Group4 - AS 5100.5-2017

3. Component Image


4. Input/Output Value



  • Input Data
Index Name Description Type Default

Previous
Component
1 KEY Tendon Property ID Integer - -
2 NAME Tendon Name String - -
3 MATL Tendon Material No. Integer - -
4 AREA Total Tendon Area Real - -
5 D_AREA Diameter Real - -
6 US Ultimate Strength Real 0 -
7 YS Yield Strength Real 0 -
8 FF Curvature Friction Factor Real 0 -
9 WF ** Wobble Friction Factor Real 0 -
10 ASB Anchorage Slip - Begin Real 0 -
11 ASE Anchorage Slip - End Real 0 -
12 FT * Factor of Relaxation Coefficient Real - -
13 W_ANGLE *** Unintentional Angular Disp. Real 0 -
14 Relaxation Coefficient Activation Relaxation Coefficient Select true -
15 Bond Type Bond Type

· True : Bonded
· false : Unbonded

 Select true -
16 Wobble Type Wobble Type Select Wobble Friction Factor -



Activation Condition
* Only for if Relaxation Coefficient is true
** Only for if Wobble Type is Wobble Friction Factor
*** Only for if Wobble Type is Unintentional Angular Displacement(k)

  • Output Data
Index Command Description Type Method

Next
Component
1 TDNT Create Post-tension Tendon Property
(AS 5100.5-2017)		 Json PUT/DELETE -

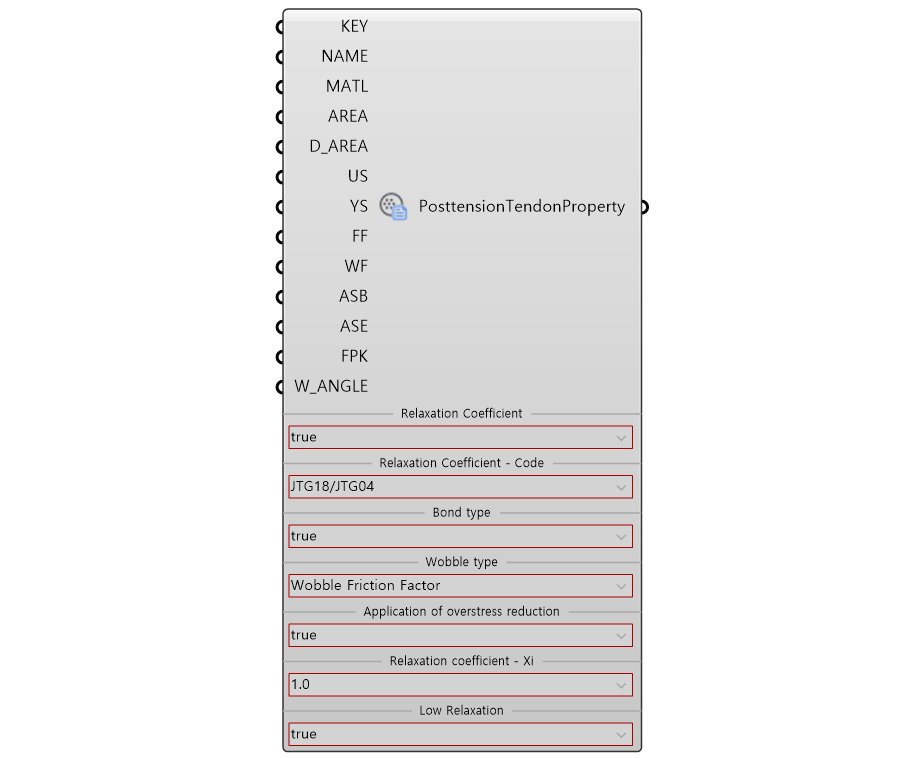

Code Group5 - JTG18/JTG04

3. Component Image


4. Input/Output Value



  • Input Data
Index Name Description Type Default

Previous
Component
1 KEY Tendon Property ID Integer - -
2 NAME Tendon Name String - -
3 MATL Tendon Material No. Integer - -
4 AREA Total Tendon Area Real - -
5 D_AREA Diameter Real - -
6 US Ultimate Strength Real 0 -
7 YS Yield Strength Real 0 -
8 FF Curvature Friction Factor Real 0 -
9 WF ** Wobble Friction Factor Real 0 -
10 ASB Anchorage Slip - Begin Real 0 -
11 ASE Anchorage Slip - End Real 0 -
12 FPK Characteristic Value of Strength Real - -
13 W_ANGLE *** Unintentional Angular Disp. Real 0 -
14 Relaxation Coefficient Activation Relaxation Coefficient Select true -
15 Bond Type Bond Type

· True : Bonded
· false : Unbonded

 Select true -
16 Wobble Type Wobble Type Select Wobble Friction Factor -
17 Application of Overstress Reduction Factor Application of Overstress Reduction Factor Select true -
18 Relaxation Coefficient - Xi * Factor of Relaxation Coefficient Select 1.0 -
19 Low Relaxation Low Relaxation Select true -



Activation Condition
* Only for if Relaxation Coefficient is true
** Only for if Wobble Type is Wobble Friction Factor
*** Only for if Wobble Type is Unintentional Angular Displacement(k)

  • Output Data
Index Command Description Type Method

Next
Component
1 TDNT Create Post-tension Tendon Property
(JTG18/JTG04)		 Json PUT/DELETE -

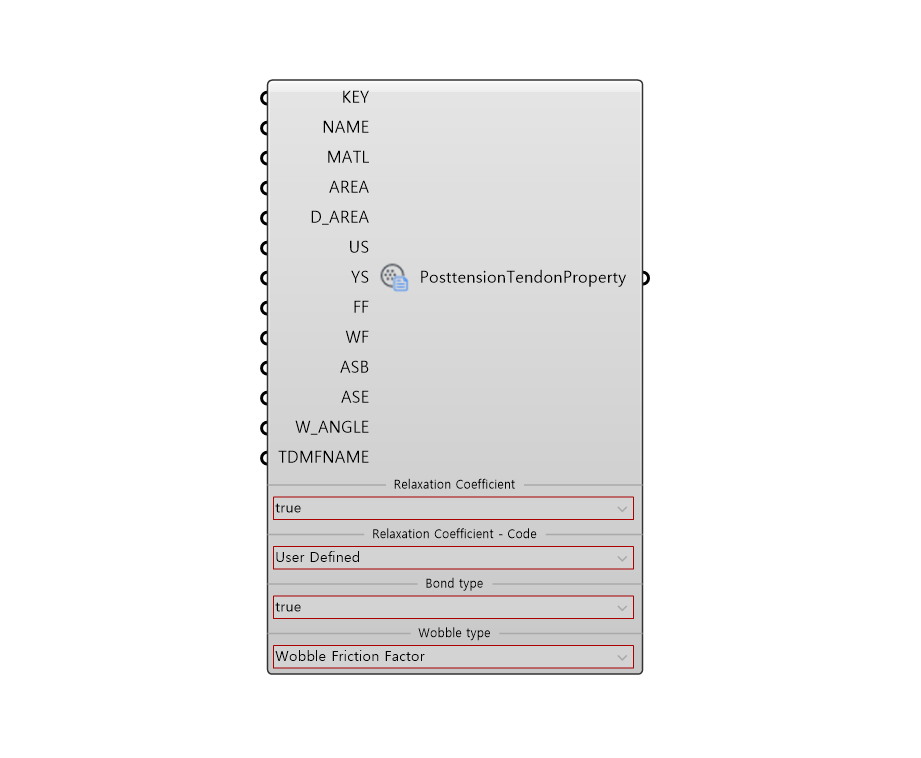

Code Group6 - User Defined

3. Component Image


4. Input/Output Value



  • Input Data
Index Name Description Type Default

Previous
Component
1 KEY Tendon Property ID Integer - -
2 NAME Tendon Name String - -
3 MATL Tendon Material No. Integer - -
4 AREA Total Tendon Area Real - -
5 D_AREA Diameter Real - -
6 US Ultimate Strength Real 0 -
7 YS Yield Strength Real 0 -
8 FF Curvature Friction Factor Real 0 -
9 WF ** Wobble Friction Factor Real 0 -
10 ASB Anchorage Slip - Begin Real 0 -
11 ASE Anchorage Slip - End Real 0 -
12 W_ANGLE *** Unintentional Angular Disp. Real 0 -
13 TDMFNAME * Relaxation Function Name String - -
14 Relaxation Coefficient Activation Relaxation Coefficient Select true -
15 Bond Type Bond Type

· True : Bonded
· false : Unbonded

 Select true -
16 Wobble Type Wobble Type Select Wobble Friction Factor -



Activation Condition
* Only for if Relaxation Coefficient is true
** Only for if Wobble Type is Wobble Friction Factor
*** Only for if Wobble Type is Unintentional Angular Displacement(k)

  • Output Data
Index Command Description Type Method

Next
Component
1 TDNT Create Post-tension Tendon Property
(User Defined)		 Json PUT/DELETE -







5. Reference API Manual Link

Tendon Property
