1. Description
This component operates the Tendon Profile Item function in Civil NX.
Define a tendon profile along the length of elements. Create the tendon profile relative to its own coordinate system, which will then be inserted relative to the elements.
The Tendon Profile Item function can be found in the Civil NX main menu,select
[Load] Tab > [Prestress] Tab > [Prestress Loads] Group > [Tendon Profile] Menu > [Tendon Profile]
2. Grasshopper Path
[Midas] > [Prestress] > [Tendon Profile Item]

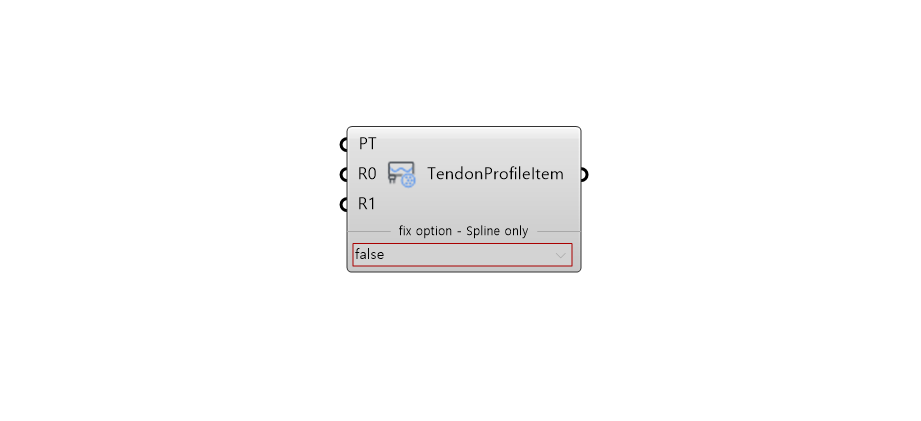

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | PT | Coordinate | Object | - | Point |
| 2 | R0 | Radius Y | Real | 0 | - |
| 3 | R1 | Radius Z | Real | 0 | - |
| 4 | fix Option | Fix Option | Select | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDNA | Create Tendon Profile Item | Object | - | 3D Spline Tendon Profile |
5. Reference API Manual Link
