1. Description
This component operates the Tendon Prestress function in Civil NX.
Define the prestress loads to be applied to the selected tendons.
The Tendon Prestress function can be found in the Civil NX main menu,select
[Load] Tab > [Prestress] Tab > [Prestress Loads] Group > [Tendon Prestress] Menu
2. Grasshopper Path
[Midas] > [Prestress] > [Tendon Prestress]

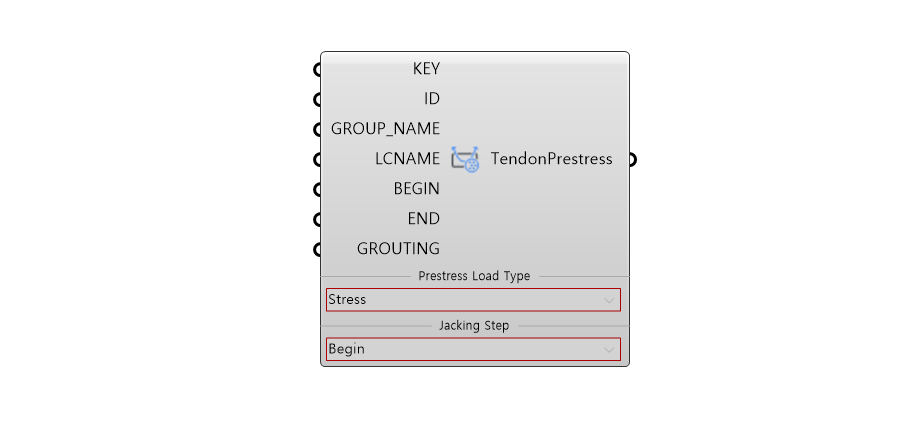

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Tendon Profile Number | Integer | 1 | - |
| 2 | ID | Serial Number | Integer | 1 | - |
| 3 | GROUP_NAME | Load Group Name | String | - | - |
| 4 | LCNAME | Load Case Name | String | - | - |
| 4 | BEGIN | Jaking Force at Begin | Real | - | - |
| 4 | END | Jaking Force at End | Real | - | - |
| 4 | GROUTING | Grouting Stage | Integer | 0 | - |
| 4 | Prestress Load Type | Prestress Load Type | Select | Stress | - |
| 4 | Jacking Step | Jacking Step | Select | Begin | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDPL | Create Tendon Prestress | Json | PUT/DELETE | - |
5. Reference API Manual Link
