1. Description
This component operates the Pretension Loads function in Civil NX.
Specify pretension loads for Truss elements or tension-only elements (hook & cable). Or, modify or delete previously specified loads.
The Pretension Loads function can be found in the Civil NX main menu,select
[Load] Tab > [Prestress] Tab > [Prestress Loads] Group > [Pretension Loads] Menu
2. Grasshopper Path
[Midas] > [Prestress] > [Pretension Loads]

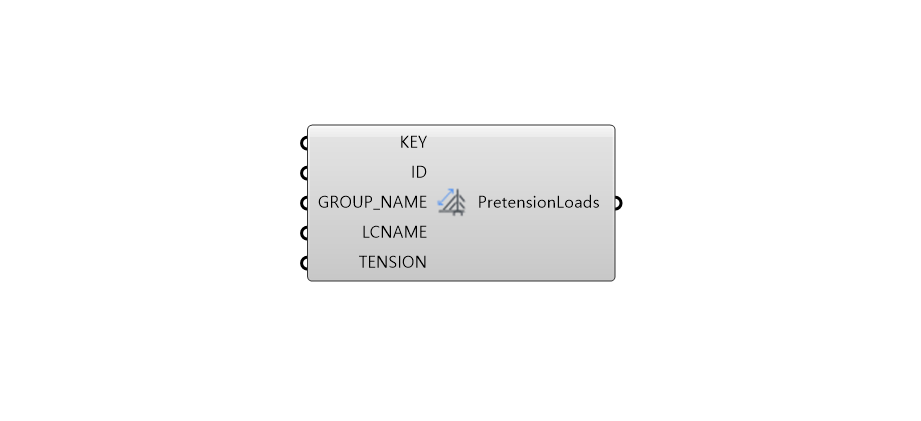

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Element NO. (only Truss Element) |
Integer | - | - |
| 2 | ID | Serial Number | Integer | 1 | - |
| 3 | GROUP_NAME | Load Group Name | String | - | - |
| 4 | LCNAME | Load Case Name | String | - | - |
| 5 | TENSION | Pretension Load | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | PTNS | Create Pretension Loads | Json | PUT/DELETE | - |
