1. Description
This component operates the C.S Deact.Structure Group function in Civil NX.
This function allows us to define necessary construction stages to analyze a bridge structure reflecting the effects of evolving structure configurations and elastic and time dependent (creep and shrinkage) displacements.
The C.S Deact.Structure Group function can be found in the Civil NX main menu,select
[Load] Tab > [Construction Stage] Tab > [Construction Stage Data] Group > [Define C.S] Menu
2. Grasshopper Path
[Midas] > [Construction Stage] > [C.S Deact.Structure Group]

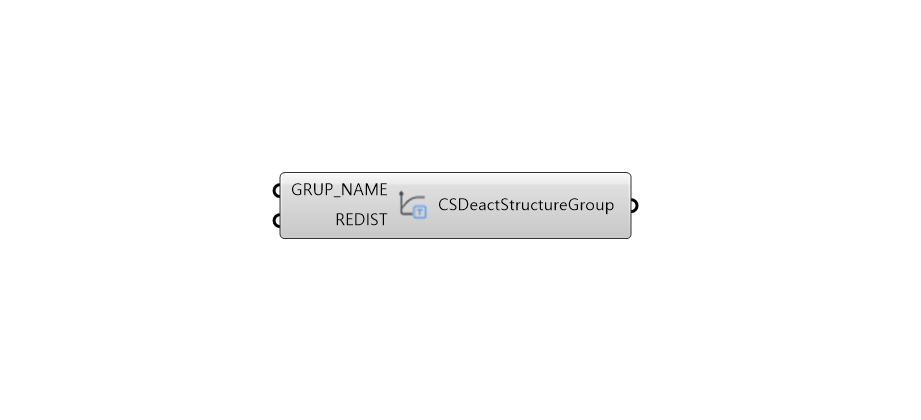

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | GRUP_NAME | Deactivated Structure Group Name | String | - | - |
| 2 | REDIST | Element force redistribution (%) | Real | 0 | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | STAG | Create C.S Deact.Structure Group | Object | - | Define C.S |
