1. Description
This component operates the C.S Act Load Group function in Civil NX.
This function allows us to define necessary construction stages to analyze a bridge structure reflecting the effects of evolving structure configurations and elastic and time dependent (creep and shrinkage) displacements.
The C.S Act Load Group function can be found in the Civil NX main menu,select
[Load] Tab > [Construction Stage] Tab > [Construction Stage Data] Group > [Define C.S] Menu
2. Grasshopper Path
[Midas] > [Construction Stage] > [C.S Act Load Group]

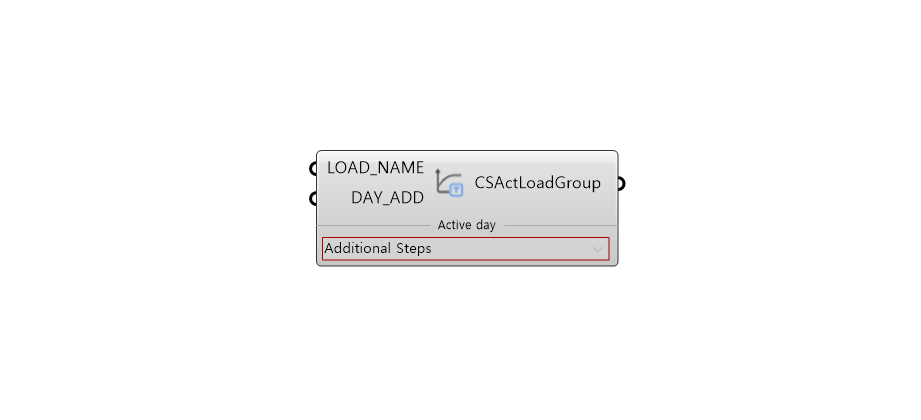

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | LOAD_NAME | Activated Load Group Name | String | - | - |
| 2 | DAY_ADD * | Additional Steps Day | Real | - | - |
| 3 | Active day | Active day | Select | FIRST | - |
Activation Condition
* Only for if Active day is Additional Steps
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | STAG | Create C.S Act Load Group | Object | - | Define C.S |
5. Reference API Manual Link
