1. Description
This component operates the RS Functions function in Gen/Civil NX.
Enter spectral data for response spectrum analysis.
The RS Functions function can be found in the Civil NX main menu,select
[Load] Tab > [Dynamic Loads] Tab > [Response Spectrum Data] Group > [RS Functions] Menu
2. Grasshopper Path
[Midas] > [Dynamic Load] > [RS Functions]

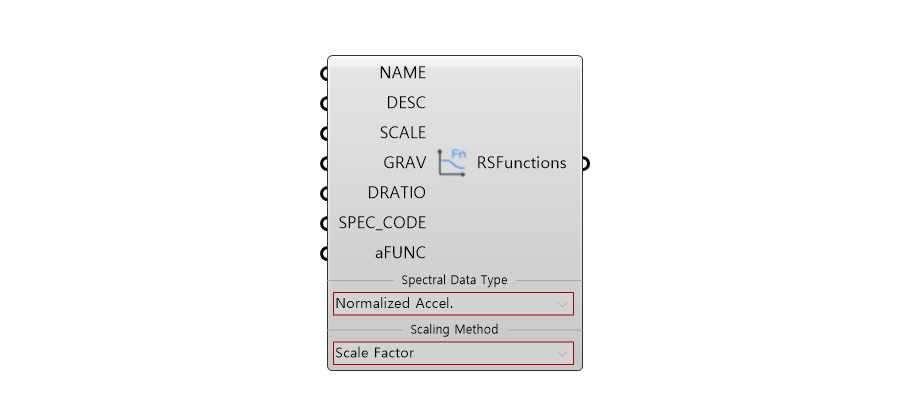

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | NAME | RS Function Name | String | - | - |
| 2 | DESC | Description | String | - | - |
| 3 | SCALE | Scaling Value | Real | - | - |
| 4 | GRAV * | Gracity | Real | - | - |
| 5 | DRATIO | Damping Ratio | Real | 0.05 | - |
| 6 | SPEC_CODE | Design Spectrum Type | String | OTHERCODE | - |
| 7 | aFUNC |
Function Data [Period,Value] |
Array [Real,Real] |
- | - |
| 8 | Spectral Data Type | Spectral Data Type | Select | Normalized Accel. | - |
| 9 | Scaling Method | Scaling Method | Select | Scale Factor | - |
Activation Condition
* Only for if Spectral Data Type is Normalized Accel.
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SPFC | Create RS Functions | Json | PUT/DELETE | - |
5. Reference API Manual Link
