1. Description
This component operates the Strucutre Group function in Civil NX.
Define (create, modify & delete) structure group names to which specific nodes and elements are later assigned.
The Strucutre Group function can be found in the Civil NX main menu,select
[Project] Tab> [Group] Group > [Group] Menu > [Structure Group] Menu
2. Grasshopper Path
[Midas] > [Project] > [Strucutre Group]

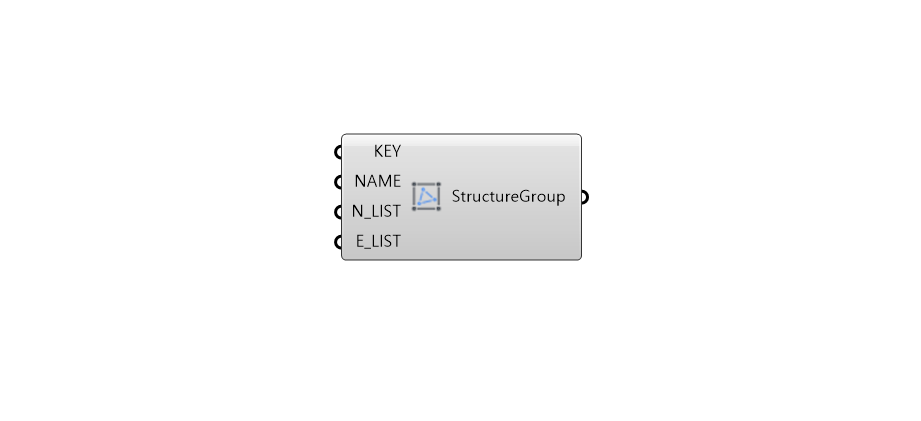

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Structure Group ID | Integer | - | - |
| 2 | NAME | Structure Group Name | String | - | - |
| 3 | N_LIST | Node List | Integer | - | - |
| 4 | E_LIST | Element List | Integer | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | GRUP | Create Strucutre Group | Json | PUT/DELETE | - |
5. Reference API Manual Link
