1. Description
This component operates the Load Group function in Civil NX.
Define (create, modify & delete) load group names to which loaded nodes and elements are later assigned.
The Load Group function can be found in the Civil NX main menu,select
[Project] Tab> [Group] Group > [Group] Menu > [Load Group] Menu
2. Grasshopper Path
[Midas] > [Project] > [Load Group]

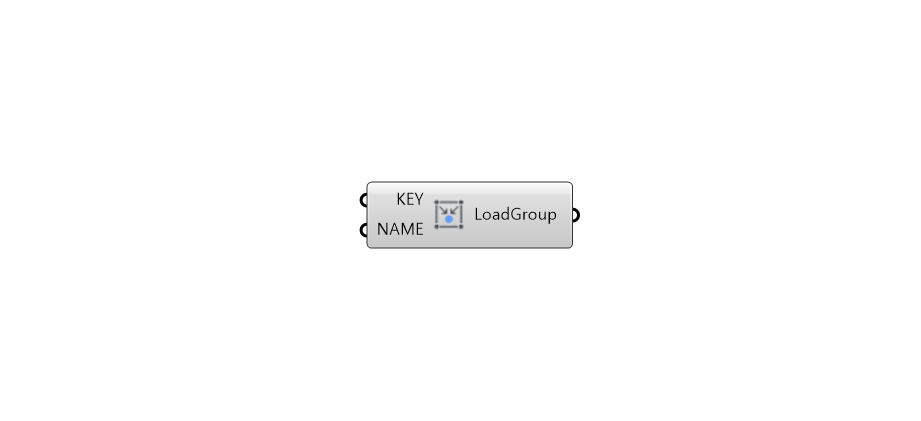

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Load Group ID | Integer | - | - |
| 2 | NAME | Load Group Name | String | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | LDGR | Create Load Group | Json | PUT/DELETE | - |
5. Reference API Manual Link
