1. Description
This component operates the Time Dependent Material Link function in Civil NX.
The time dependent material properties defined in "Time Dependent Material (Creep/Shrinkage)" are related to the conventional material data already entered. The properties entered here are applied to Construction Stage analysis and Heat of Hydration analysis but not to other analyses.
The Time Dependent Material Link function can be found in the Civil NX main menu,select
[Properties] Tab > [Material Properties] Group > [Material Link] Menu
2. Grasshopper Path
[Midas] > [Properties] > [Time Dependent Material Link]

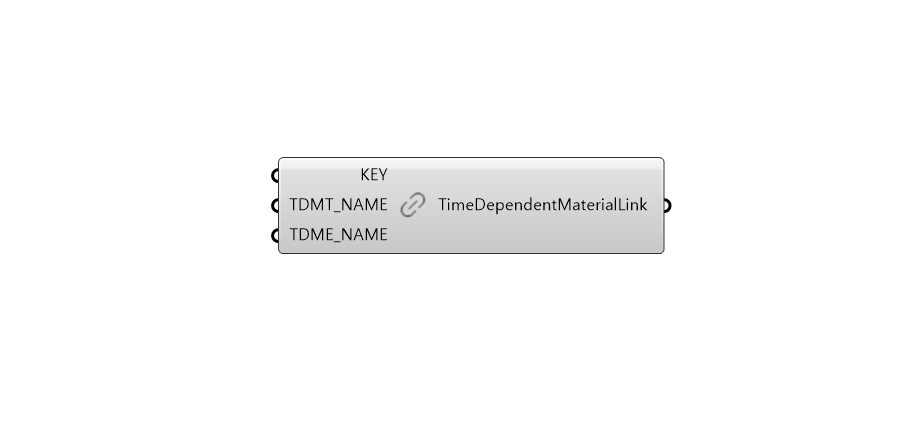

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Link ID | Integer | - | - |
| 2 | TDMT_NAME | Creep/Shrinkage Name | String | - | - |
| 3 | TDME_NAME | Comp.Strength Name | String | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TMAT | Create Time Dependent Material Link | Json | PUT/DELETE | - |
5. Reference API Manual Link
