1. Description
This component operates the Thickness function in Civil NX.
Enter thickness data for planar elements (plate element, plane stress element).
The Thickness function can be found in the Civil NX main menu,select
[Properties] Tab > [Section Properties] Group > [Thickness] Menu
2. Grasshopper Path
[Midas] > [Properties] > [Thickness]

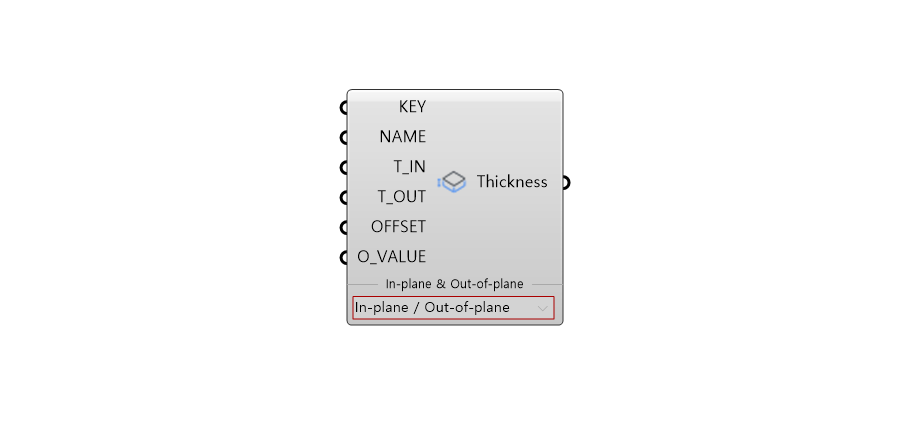

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Thickness ID | Integer | - | - |
| 2 | NAME | Thickness Name | String | - | - |
| 3 | T_IN | In-plane Thickness | Real | - | - |
| 4 | T_OUT * | Out-of-plane Thickness | Real | - | - |
| 5 | OFFSET |
Plate Offset Option · None : "0" |
Integer | 0 | - |
| 6 | O_VALUE | Local Z Direction Offset Value | Real | 0 | - |
| 7 | In-plane & Out-of-plane | Plane Type | Select | In-plane & Out-of-plane | - |
Activation Condition
* Only for if In-plane & Out-of-plane is In-plane / Out-of-plane
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | THIK | Create Thickness | Json | PUT/DELETE | - |
5. Reference API Manual Link
