1. Description
This component generates Stiffener Item of Composite Steel Shape(Type1) function in the Civil NX.
Chose the stiffener to be positioned on the left or right or both sides of the web of Steel-I girder.
The Stiffener Item of Composite Steel Shape(Type1) funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [Composite] tab > Stiffener
2. Grasshopper Path
[Midas] > [Properties] > [Stiffener Item of Composite Steel Shape(Type1)]

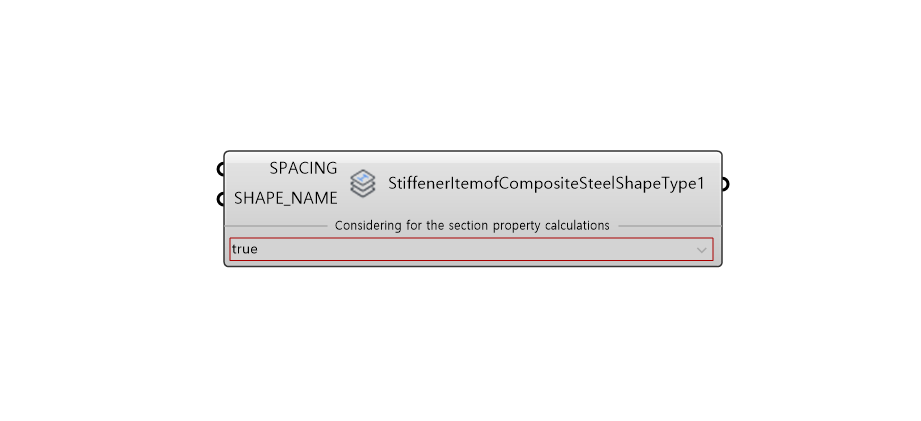

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | SPACING | Stiffener Spacing | Real | - | - |
| 2 | SHAPE_NAME | Stiffener Shape Name | String | - | - |
| 3 | Considering for the section property calculations | Considering for the section property calculations | Select | true | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Stiffener Item of Composite Steel Shape(Type1) Data | Object | - | Stiffener of Composite Steel Shape Type1 |
5. Reference API Manual Link
Section Properties - Composite - Steel
