1. Description
This component generates Distance from Reference Line of Composite Shape(Type2) function in the Civil NX.
Slab Dimension includes only the Type for Steel Girder, and the detailed configuration items are as follows
a. Steel-Box [ Type 1, 2 ]
b. Steel-I [ Type 1, 2 ]
c. Steel -Tub [ Type 1, 2 ]
The Distance from Reference Line of Composite Shape(Type2) funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [Composite] tab
2. Grasshopper Path
[Midas] > [Properties] > [Distance from Reference Line of Composite Shape(Type2)]

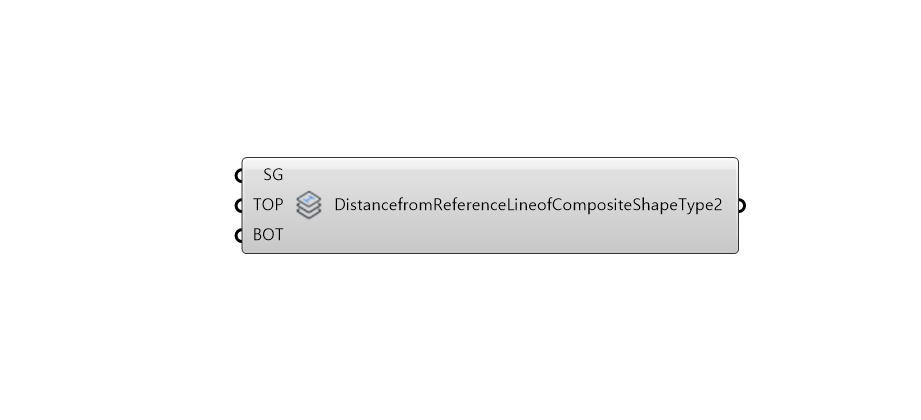

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 |
SG |
Slab Distance from Ref. Line | Real | - | - |
| 2 |
TOP |
Top Flange Distance from Ref. Line | Real | - | - |
| 3 | BOT | Bottom Flange Distance from Ref. Line | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Distance from Reference Line of Composite Shape(Type2) Data | Object | - | Composite Steel Shape (Type 2) |
5. Reference API Manual Link
Section Properties - Composite - Steel
