1. Description

This component operates the Result Table Beam function in Civil NX.
Check internal forces in beam elements

The Result Table Beam function can be found in the Civil NX main menu,select
[Results] Tab > [Analysis Result] Tab > [Table] Group > [Result Table] Menu > Beam Menu

2. Grasshopper Path

[Midas] > [Results] > [Result Table Beam]

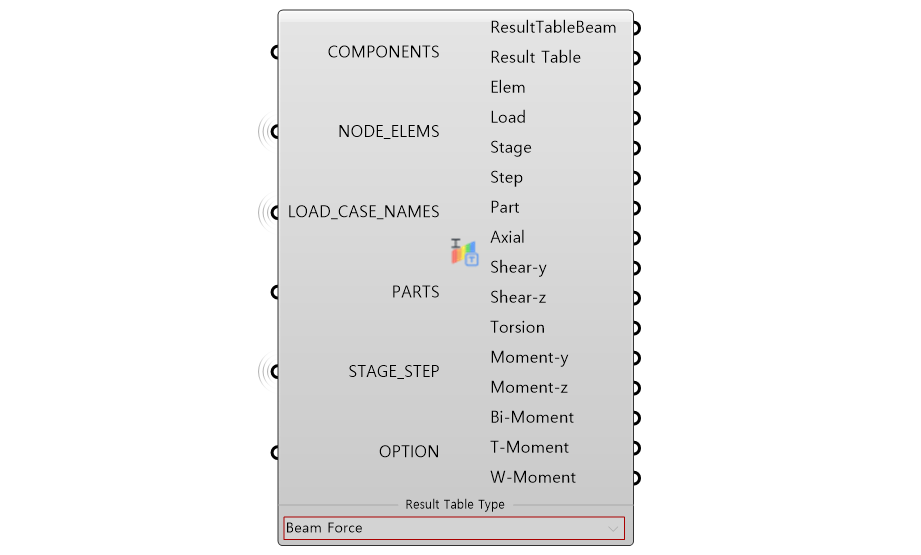

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	COMPONENTS	Components of Result Table (If you want to specify a component, only the entered components will be displayed)	String	-	-
2	NODE_ELEMS	Node or element number to check the result	Object	-	Elems of Result Table
3	LOAD_CASE _NAMES	Static Load/Load Combination Name & Type · Static Load Cases a.NAME + "(ST)" Ex) DL(ST) · Load Combinations a.NAME + "(CB)" b.NAME + "(CB:all)" c.NAME + "(CB:max)" d.NAME + "(CB:min)" EX) gLCB1(CB) ※ Load Combinations of Design Type a. General : "CB" b. Concrete : "CBC" c. Steel : "CBS" d. SRC : "CBR" e. Composite : "CBSC" · Construction Stage a.NAME + "(CS)" EX) Summation(CS) · Response Spectrum a.NAME + "(RS)" EX) RX(RS) · Moving Load a.NAME + "(MV)" EX) DB1(MV) · Settlement Load a.NAME + "(SM)" EX) STL1(SM)	String	-	-
4	PARTS	Element Part Number · "Part I" · "Part 1/4" · "Part 2/4" · "Part 3/4" · "Part J"	String	"Part I" "Part J"	-
5	STAGE_STEP	Stage Step Name · Stage Name + " : Step Number"+"(Step Name)" EX) CS01:001(first)	String	-	-
6	OPTION	Reponse Number Format	Object	-	Option of Result Table
7	Result Table Type	Result Table Type	Select	Beam Force	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	TABLE	Create Result Table Beam	String	POST	-

※ To export in CSV format, right-click the icon and click Export.

5. Reference API Manual Link

Beam Force - Analysis Result Table

Beam Force (Static Prestress) - Analysis Result Table

Beam Stress - Analysis Result Table
