1. Description
This component operates the Option of Result Table function in Civil NX.
Specifies the units used in the Result Table.
The Option of Result Table can be found in the Civil NX main menu,select
[Results] Tab > [Analysis Result] Tab > [Table] Group > [Result Table] Menu
2. Grasshopper Path
[Midas] > [Results] > [Option of Result Table]

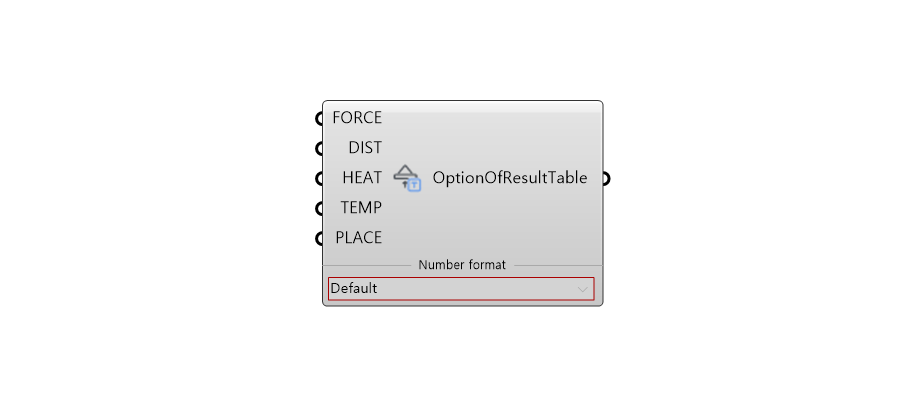

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | FORCE | Force Unit | String | - | - |
| 2 | DIST | Length Unit | String | - | - |
| 3 | HEAT | Heat Unit | String | - | - |
| 4 | TEMP | Temperature Unit | String | - | - |
| 5 | PLACE | Digit Place | Integer | - | - |
| 6 | Number format | Number format | String | Default | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TABLE | Create Option of Result Table | Object | - | Result Table (Reaction, Displacements, Beam) |
5. Reference API Manual Link
Beam Force - Analysis Result Table
Beam Force (Static Prestress) - Analysis Result Table
Beam Stress - Analysis Result Table
