1. Description
This component operates the Main Control Data function in Civil NX.
Enter the settlement load cases for support settlement analysis.
The Main Control Data function can be found in the Civil NX main menu,select [Analysis] tab > [Analysis Control] Group > [Main Control Data] Menu
2. Grasshopper Path
[Midas] > [Analysis] > [Main Control Data]

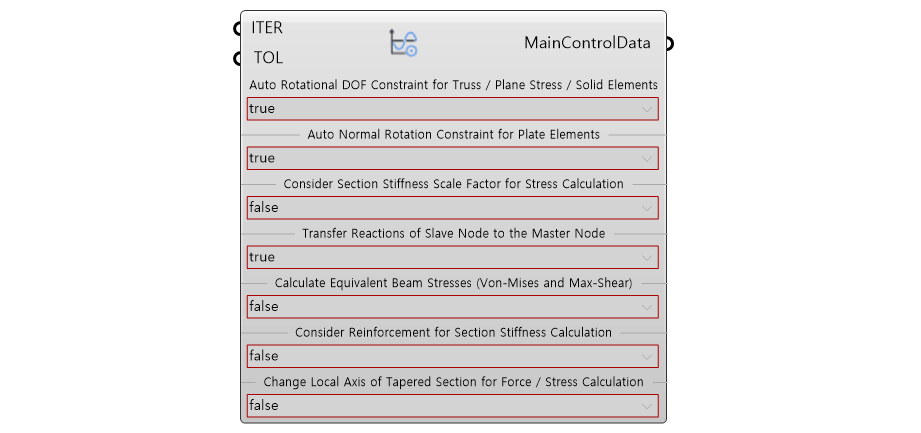

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | ITER | Number of Iteration /Load Case |
Real | - | - |
| 2 | TOL | Settlement Load Case Name | String | - | - |
| 3 | Auto Ratational DOF Constraint | Auto Rotational DOF Constraint for Truss / Plane Stress / Solid Elements | Select | true | - |
| 4 | Auto Normal Rotation Constraint | Auto Normal Rotation Constraint for Plate Elements | Select | true | - |
| 5 | Consider Section Stiffness Scale Factor | Consider Section Stiffness Scale Factor for Stress Calculation | Select | false | - |
| 6 | Transfer Reactions of Slave Node to the Master Node | Transfer Reactions of Slave Node to the Master Node | Select | true | - |
| 7 | Calculate Equivalent Beam Stresses | Calculate Equivalent Beam Stresses (Von-Mises and Max-Shear) |
Select | false | - |
| 8 | Consider Reinforcement for Section Stiffness Calculation | Consider Reinforcement for Section Stiffness Calculation | Select | false | - |
| 9 | Change Local Axis of Tapered Section | Change Local Axis of Tapered Section for Force / Stress Calculation | Select | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | ACTL | Create Main Control Data | Json | PUT |
- |
5. Reference API Manual Link
