1. Description
This component operates the P-Delta Analysis Control function in Civil NX.
Enter the load cases and the control parameters for iterations used in the P-Delta analysis of a structure. In order to consider the P-Delta effects in the processes of general static and dynamic analyses, we need to define the load condition to formulate the geometric stiffness matrix. We need to also specify the convergence requirements.
The P-Delta Analysis Control can be found in the Civil NX main menu,select [Analysis] tab > [Analysis Control] Group > [P-Delta] Menu
2. Grasshopper Path
[Midas] > [Analysis] > [P-Delta Analysis Control]

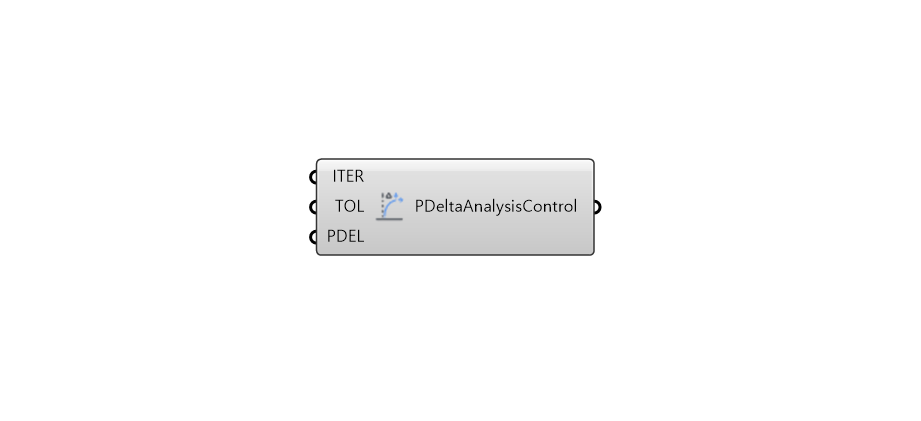

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | ITER | Number of Iteration | Real | - | - |
| 2 | TOL | Convergence Tolerance | Real | - | - |
| 3 | PDEL | P-Delta Combination [Load Case,Scale Factor] Ex) DL,1.0 |
Array [String.Real] |
- | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | PDEL | Create P-Delta Analysis Control | Json | PUT |
- |
5. Reference API Manual Link
