1. Description
This component operates the Buckling Analysis Control function in Civil NX.
Enter the settlement load cases for support settlement analysis.
The Buckling Analysis Control can be found in the Civil NX main menu,select [Analysis] tab > [Analysis Control] Group > [Buckling] Menu
2. Grasshopper Path
[Midas] > [Analysis] > [Buckling Analysis Control]

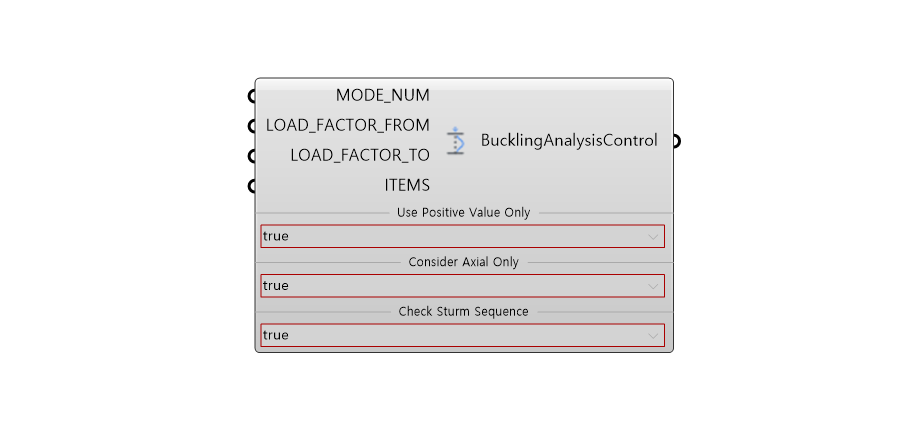

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | MODE_NUM | Number of Modes | Integer | - | - |
| 2 | LOAD_FACTOR _FROM |
Load Factor Search From |
Real | 0 | - |
| 3 | LOAD_FACTOR _TO |
Load Factor Search To |
Real | 0 | - |
| 4 | ITEMS | Buckling Combination | Object | - | Buckling Combination |
| 5 | Use Positive Value Only | Load Factor Range Type
· Positive Value Only : true |
Select | true | - |
| 6 | Consider Axial Only | Consider Axial Only | Select | true | - |
| 7 | Check Sturm Sequence | Check Sturm Sequence | Select | true | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | BUCK | Create Buckling Analysis Control | Json | PUT |
- |
5. Reference API Manual Link
