1. Description
This component operates the Buckling Combination function in Civil NX.
Enter the settlement load cases for support settlement analysis.
The Buckling Combination can be found in the Civil NX main menu,select [Analysis] tab > [Analysis Control] Group > [Buckling] Menu
2. Grasshopper Path
[Midas] > [Analysis] > [Buckling Combination]

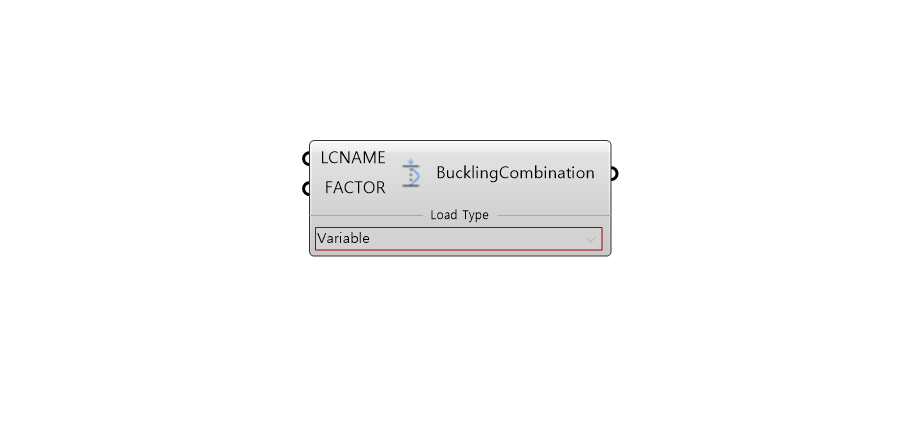

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | LCNAME | Load Case Name | String | - | - |
| 2 | FACTOR | Scale Factor | Real | - | - |
| 3 | Load Type | Load Type | Select | Variable | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Buckling Combination | Object | - |
- |
5. Reference API Manual Link
