1. Description
This component operates the Settlement function in Civil NX.
Enter settings for Settlement Analysis.
The Settlement function can be found in the Civil NX main menu,select [Analysis] tab > [Analysis Control] Group > [Settlement] Menu
2. Grasshopper Path
[Midas] > [Analysis] > [Settlement]

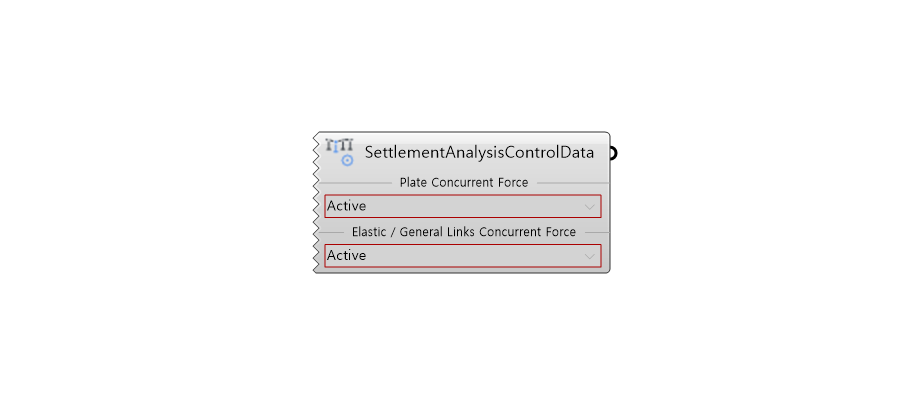

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Plate Concurrent Force | Select | Active | - | |
| 2 | Elastic/General Links Concurrent Force | Select | Active | - | |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SMCT | Create Settlement | Json | PUT | - |
5. Reference API Manual Link
