1. Description
This component operates the Large Disp. Initial Forces for Geometric Stiffness function in Civil NX.
Enter initial axial forces into selected members for geometric stiffness calculation specifically used in large displacement analysis.
The Large Disp. Initial Forces for Geometric Stiffness function can be found in the Civil NX main menu,select [Load] tab > [Misc.] tab > [Initial Forces] Group > [Large Displacement] Menu > [Initial FOrces for Geometric Stiffness] Menu
2. Grasshopper Path
[Midas] > [Misc.] > [Large Disp. Initial Forces for Geometric Stiffness]

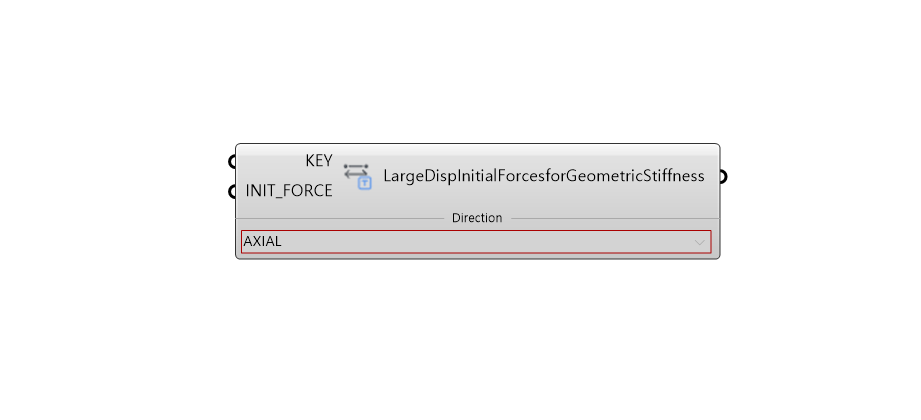

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Initial Force ID | Integer | - | - |
| 2 | INIT_FORCE | Initial Force | Real | - | - |
| 3 | Direction | Select | Axial | - | |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | IFGS | Create Large Disp. Initial Forces for Geometric Stiffness | Json | PUT/DELETE |
- |
5. Reference API Manual Link
Large Displacement - Initial Forces for Geometric Stiffness
