1. Description

This component operates the Small Disp. Initial Force Control Data function in Civil NX.
Initial member forces are generated from Member forces due to a specific load combination

The Small Disp. Initial Force Control Data function can be found in the Civil NX main menu,select [Load] tab > [Misc.] tab > [Initial Forces] Group > [Small Displacement] Menu > [Initial Force Control Data] Menu

2. Grasshopper Path

[Midas] > [Misc.] > [Small Disp. Initial Force Control Data]

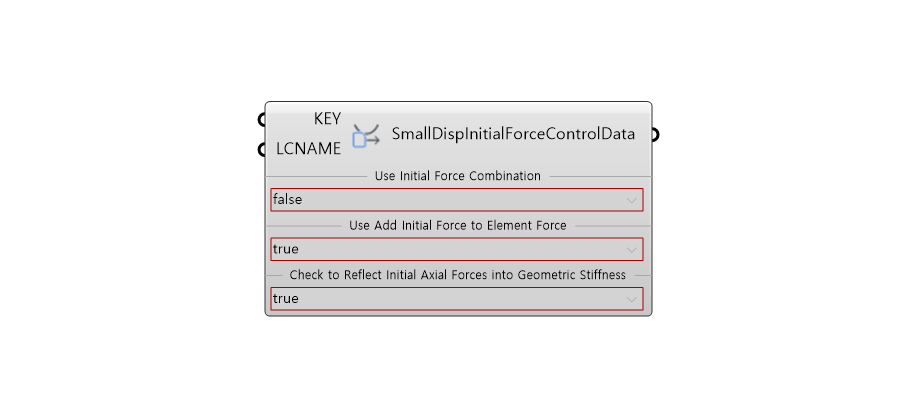

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	KEY	Initial Force ID	Integer	-	-
2-1	LCNAME *	Load Case	String	-	-
2-2	COMB_LIST **	Load Combination List [Load Case,Scale]	Array [String,Real]	-	-
3	Use Initial Force Combination		Select	false	-
4	Use Add Initial Force to Element Force **		Select	false	-
5	Check to Reflect Initial Axial into Geometric Stiffness *		Select	false	-

Activation Condition
* Only for if Use Initial Force Combination is true
** Only for if Use Initial Force Combination is false

Output Data

Index	Command	Description	Type	Method	Next Component
1	EFCT	Create Small Disp. Initial Force Control Data	Json	PUT/DELETE	-

5. Reference API Manual Link

Small Displacement - Initial Force Control Data
