1. Description
This component operates the Element Temp. function in Civil NX.
Specify element temperatures, or modify or delete previously defined temperatures for thermal analysis.
The Element Temp. function can be found in the Civil NX main menu,select [Load] tab > [Temperature] tab > [Temperature Loads] Group > [Element Temp.] Menu
2. Grasshopper Path
[Midas] > [Temperature] > [Element Temp.]

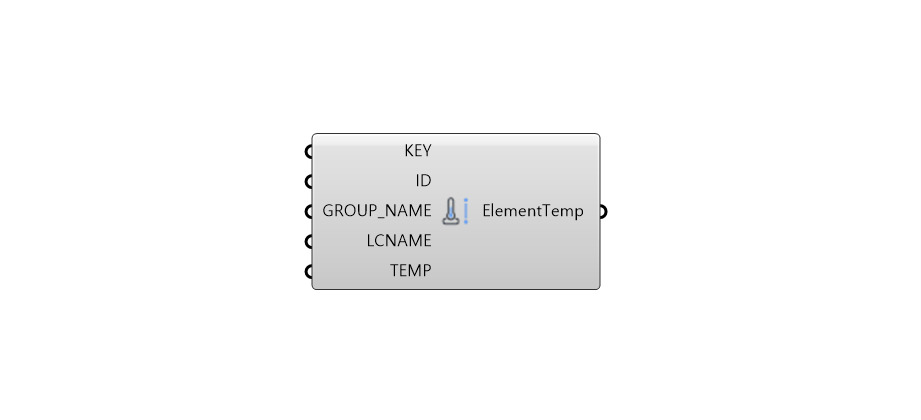

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Temperature ID | Integer | - | - |
| 2 | ID | Serial Number | Integer | 0 | - |
| 3 | GROUP_NAME | Load Group Name | String | - | - |
| 4 | LCNAME | Load Case Name | String | - | - |
| 5 | TEMP | Temperature | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | ETMP | Create Element Temp. | Json | PUT/DELETE |
- |
5. Reference API Manual Link
