1. Description

This component operates the Temperature Gradient function in Civil NX.
Enter the temperature differences between the tops and bottoms of beam or plate elements for thermal stress analysis. Modify or delete previously entered temperature differences.

The Temperature Gradient function can be found in the Civil NX main menu,select [Load] tab > [Temperature] tab > [Temperature Loads] Group > [Temperature Gradient] Menu

2. Grasshopper Path

[Midas] > [Temperature] > [Temperature Gradient]

Type 1 : Beam

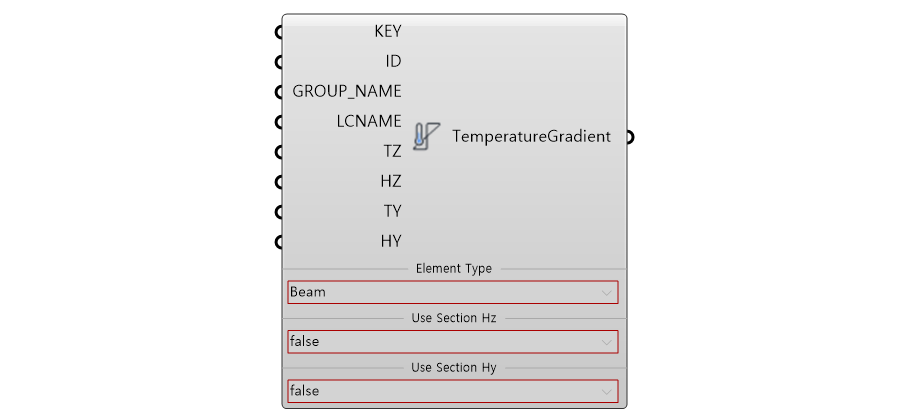

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	KEY	Temperature ID	Integer	-	-
2	ID	Serial Number	Integer	0	-
3	GROUP_NAME	Load Group Name	String	-	-
4	LCNAME	Load Case Name	String	-	-
5	TZ	T2z-T1z	Real	-	-
6	HZ *	Hz value	Real	-	-
7	TY	T2y-T1y	Real	-	-
8	HY **	Hy value	Real	-	-
9	Use Section HZ		Select	true	-
10	Use Section HY		Select	false	-

Activation Condition
* Only for if Use Section HZ is false
** Only for if Use Section HY is false

Output Data

Index	Command	Description	Type	Method	Next Component
1	GTMP	Create Temperature Gradient (Beam)	Json	PUT/DELETE	-

Type 2 : Plate

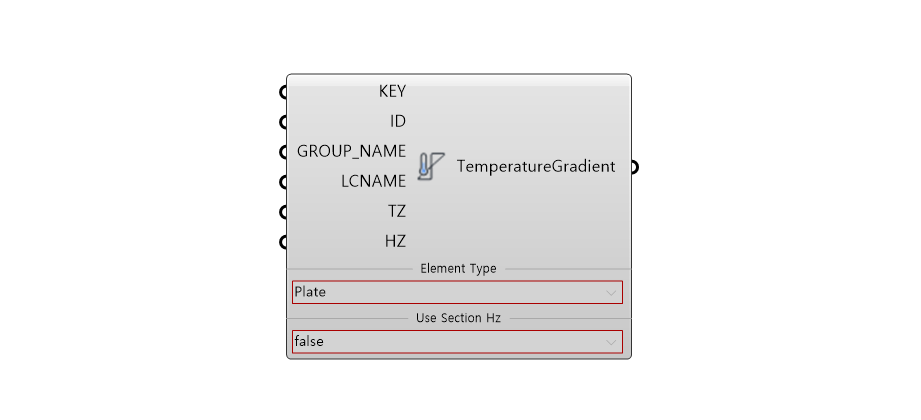

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	KEY	Temperature ID	Integer	-	-
2	ID	Serial Number	Integer	0	-
3	GROUP_NAME	Load Group Name	String	-	-
4	LCNAME	Load Case Name	String	-	-
5	TZ	T2z-T1z	Real	-	-
6	HZ *	Hz value	Real	-	-
7	Use Section HZ		Select	true	-

Activation Condition
* Only for if Use Section HZ is false

Output Data

Index	Command	Description	Type	Method	Next Component
1	GTMP	Create Temperature Gradient (Plate)	Json	PUT/DELETE	-

5. Reference API Manual Link

Temperature Gradient
