1. Description
This component operates the Beam Section Temp.(General) function in Civil NX.
Enter the temperature differences between specific locations of beam for thermal stress analysis. The vertical temperature gradient is considered in concrete and steel superstructures with concrete decks, which are subject to temperature difference due to direct sun light and shade.
The Beam Section Temp.(General) function can be found in the Civil NX main menu,select [Load] tab > [Temperature] tab > [Temperature Loads] Group > [Beam Section Temp.] Menu
2. Grasshopper Path
[Midas] > [Temperature] > [Beam Section Temp.]

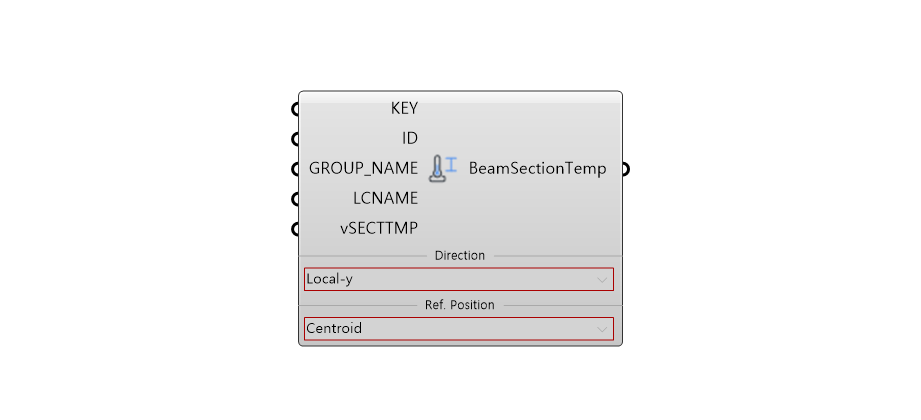

3. Component Image

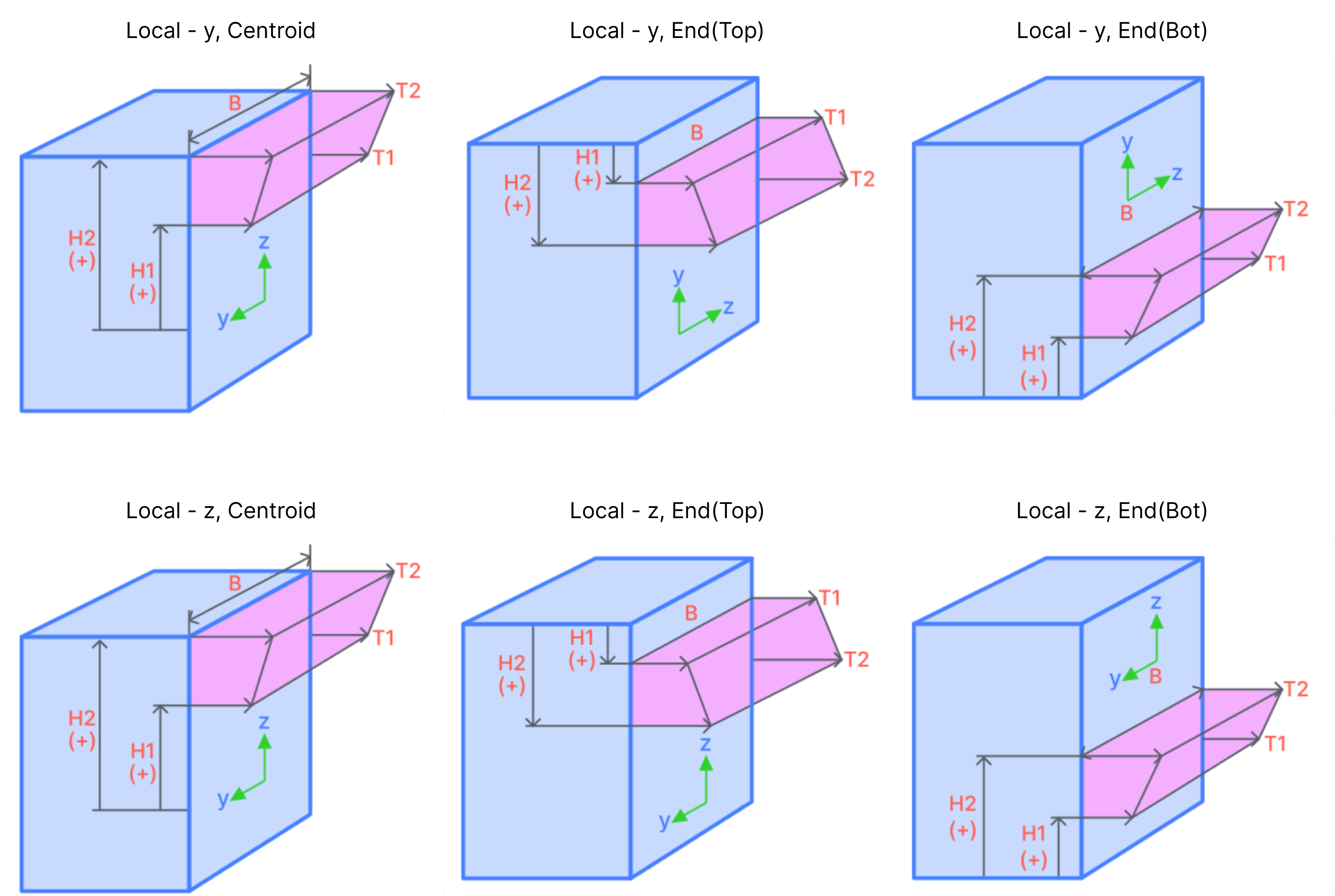

※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Temperature ID | Integer | - | - |
| 2 | ID | Serial Number | Integer | 0 | - |
| 3 | GROUP_NAME | Load Group Name | String | - | - |
| 4 | LCNAME | Load Case Name | String | - | - |
| 5 | vSECTTMP | Section Temperature List | Object | - | Sect Temp.of Beam Section Temp |
| 6 | Direction | Select | Loca-y | - | |
| 7 | Ref. Position | Select | Centroid | - | |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | BTMP | Create Beam Section Temp. | Json | PUT/DELETE |
- |
5. Reference API Manual Link
