1. Description
This component operates the Sect Temp.of Beam Section Temp. function in Civil NX.
Enter the temperature differences between specific locations of beam for thermal stress analysis. The vertical temperature gradient is considered in concrete and steel superstructures with concrete decks, which are subject to temperature difference due to direct sun light and shade.
The Sect Temp.of Beam Section Temp. function can be found in the Civil NX main menu,select [Load] tab > [Temperature] tab > [Temperature Loads] Group > [Beam Section Temp.] Menu
2. Grasshopper Path
[Midas] > [Temperature] > [Sect Temp.of Beam Section Temp.]

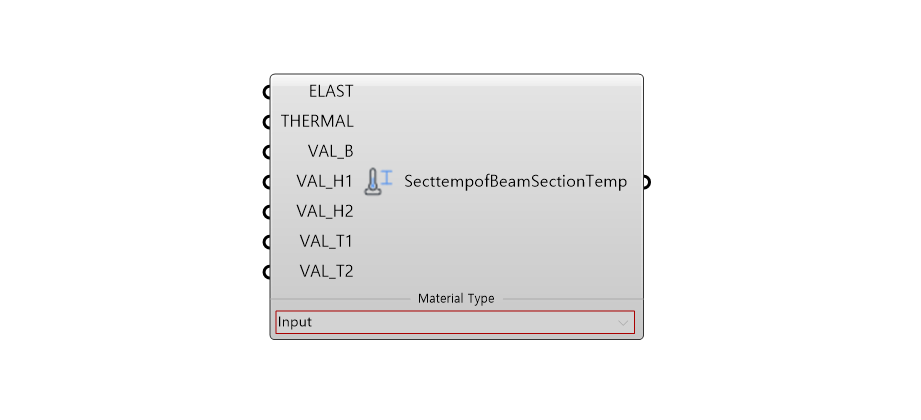

3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | ELAST * | Modulus of Elasticity | Real | - | - |
| 2 | THERMAL * | Thermal Coefficient | Real | - | - |
| 3 | VAL_B | B Value | Real | - | - |
| 4 | VAL_H1 | H1 Value | Real | - | - |
| 5 | VAL_H2 | H2 Value | Real | - | - |
| 6 | VAL_T1 | T1 Value | Real | 0 | - |
| 7 | VAL_T2 | T2 Value | Real | 0 | - |
| 8 | Material Type | Select | Element | - | |
Activation Condition
* Only for if Material Type is Input
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Sect Temp.of Beam Section Temp. | Object | - | Beam Section Temp. |
5. Reference API Manual Link
