1. Description
This component operates the Nodal Temp. function in Civil NX.
Enter nodal temperatures for thermal stress analysis, and modify or delete previously entered temperatures.
The Nodal Temp. function can be found in the Civil NX main menu,select [Load] tab > [Temperature] tab > [Temperature Loads] Group > [Nodal Temp.] Menu
2. Grasshopper Path
[Midas] > [Temperature] > [Nodal Temp.]

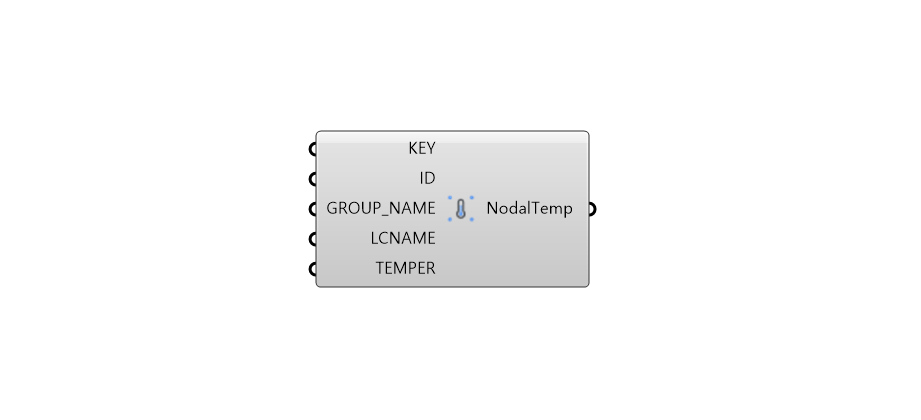

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Temperature ID | Integer | - | - |
| 2 | ID | Serial Number | String | - | - |
| 3 | GROUP_NAME | Load Group Name | String | - | - |
| 4 | LCNAME | Load Case Name | String | - | - |
| 5 | TEMPER | Tmperaure | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | STMP | Create Nodal Temp. | Json | PUT/DELETE |
- |
5. Reference API Manual Link
