1. Description
This component operates the Using Load Combinations function in Civil NX.
Convert a load combination containing a number of load cases into a single static load case.
The Using Load Combinations function can be found in the Civil NX main menu,select
[Load] Tab > [Static Loads] Tab > [Create Load Cases] Group > [Using Load Combinations] Menu
2. Grasshopper Path
[Midas] > [Static Loads] > [Using Load Combinations]

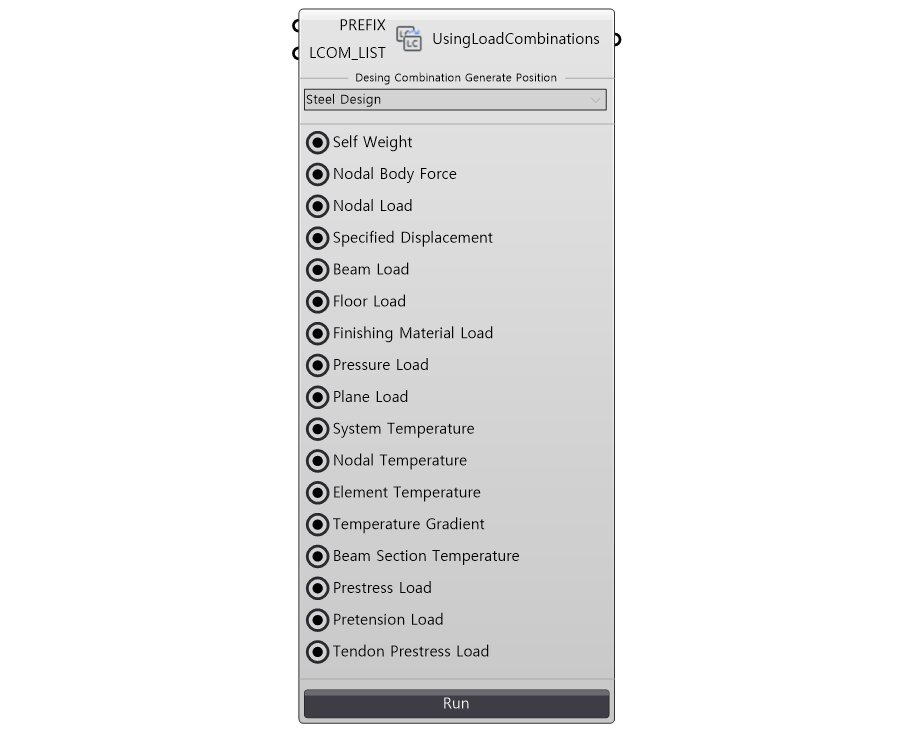

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | PREFIX | Text to prcede an existing load combination name | Integer | - | - |
| 2 | LCOM_LIST | Load Combination List | Object | - | Combinations of Using Load Combinations |
| 3 | Design Combination Generate Position | Select | Steel Design | - | |
| 4 | Load Type to consider | Select | Active | - | |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | USLC | Create Using Load Combinations | Json | POST | - |
5. Reference API Manual Link
