1. Description
This component operates the Combinations of Using Load Combinations function in Civil NX.
Convert a load combination containing a number of load cases into a single static load case.
The Combinations of Using Load Combinations function can be found in the Civil NX main menu,select
[Load] Tab > [Static Loads] Tab > [Create Load Cases] Group > [Using Load Combinations] Menu
2. Grasshopper Path
[Midas] > [Static Loads] > [Combinations of Using Load Combinations]

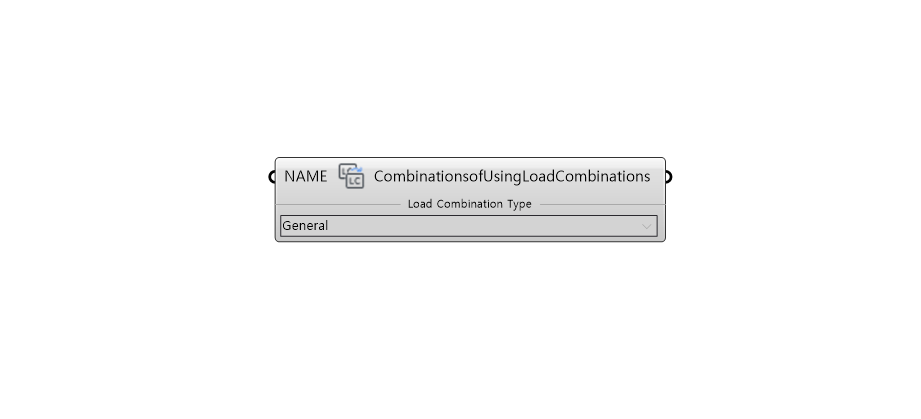

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | NAME | Load Combination Name | String | - | - |
| 2 | Load Combination Type | Select | General | - | |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Combinations of Using Load Combinations | Object | - | Using Load Combinations |
5. Reference API Manual Link
