1. Description
This component operates the Plate Element for Influ.Surface function in Civil NX.
Use plate elements to represent additional surfaces for which an influence surface analysis is to be carried out. When influence surface analysis results are required for additional surfaces beyond the range of the traffic surface lane, plate elements are used for the moving load analysis.
The Plate Element for Influ.Surface function can be found in the Civil NX main menu,select
[Load] Tab > [Moving Load] Tab > [Advanced] Group > [Plate Element for Influ.Surface] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Plate Element for Influ.Surface]

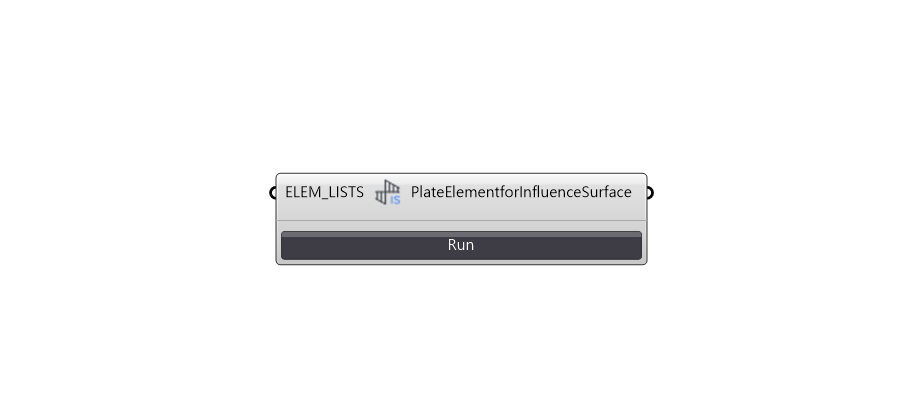

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | ELEM_LISTS | Assigned Element List | Integer | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SINF | Create Plate Element for Influ.Surface | Json | PUT/DELETE | - |
5. Reference API Manual Link
Plate Element for Influence Surface
