Summary
CIM is connected with CAD ID via real-time interworking.
The model is modified in CIM and updates are delivered to CAD ID; furthermore, only the view that the user wants to update on CAD ID can be selectively updated by reflecting the latest model changes.
Explanation
Run & Update Process
CAD ID's View Update is updated through the following process.
How to Run
Base Mode

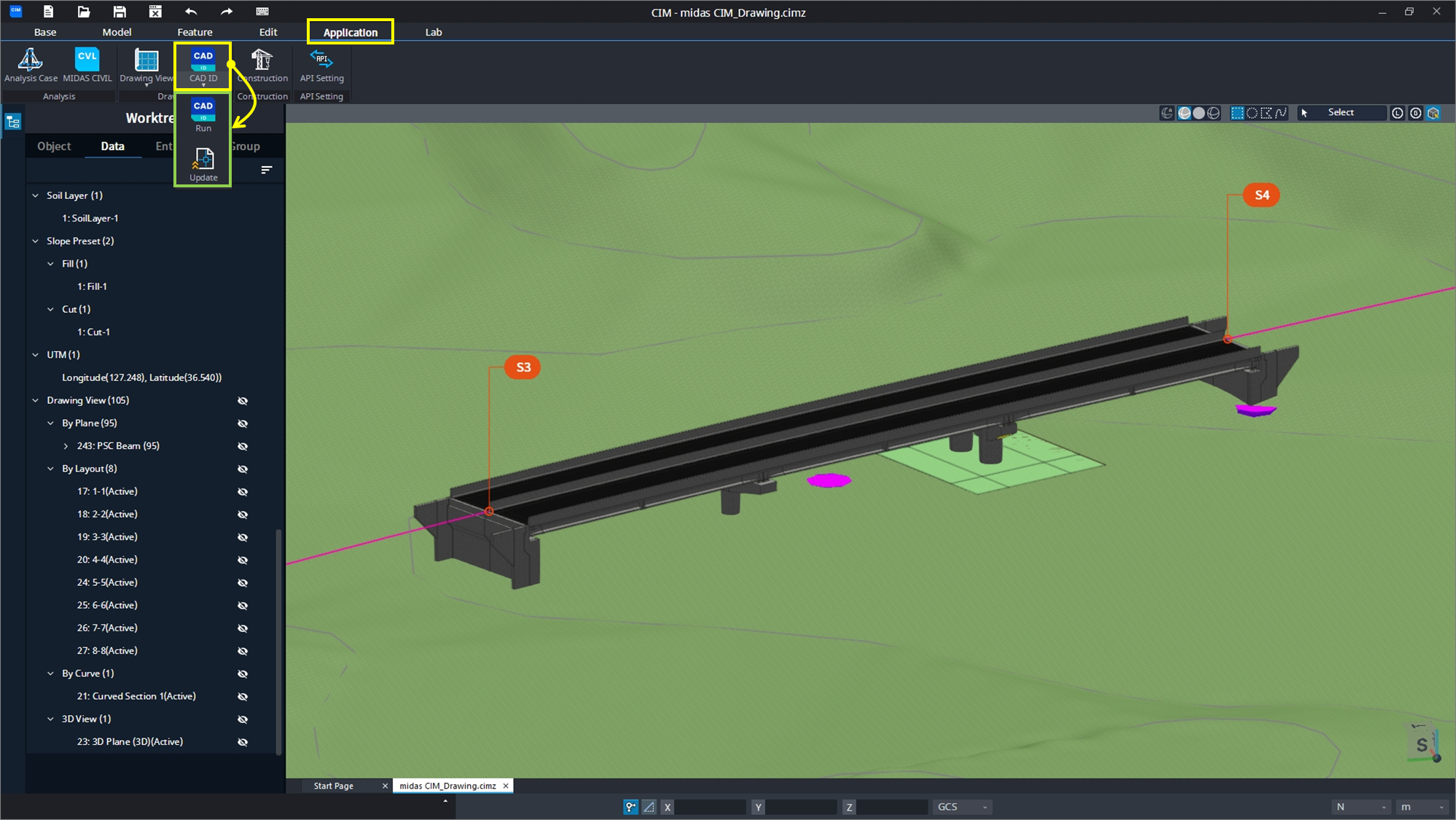

• Ribbon Menu > [Application] Tab > [Drawing] Group > CAD ID > Run
CIM > Application> CAD ID Function Execution
After creating or modifying the model in CIM, execute the Application > Update function to deliver the update to CAD ID.
Before CAD ID execution
: CAD ID is executed, and the [CONNECTED] message is displayed in green at the top center of the product.
Executing linkage with CAD ID
: In the CAD ID Command window, the [_SYNCDB] message linking data is displayed after the [_UPDATEFILE] message.
After executing the Update function in CIM, it returns to CAD ID..
Changes when Updated
When CAD ID's View is updated, the following items are also reflected.
ㆍChanges in CIM's model
ㆍChanges in CIM’s View
ㆍCAD ID's Style Changes
ㆍView of CIM Mode referenced in CAD Mode
ㆍMaterial List (Rebar Schedule, Steel Member Table, Tendon Coordinate Table, etc)
