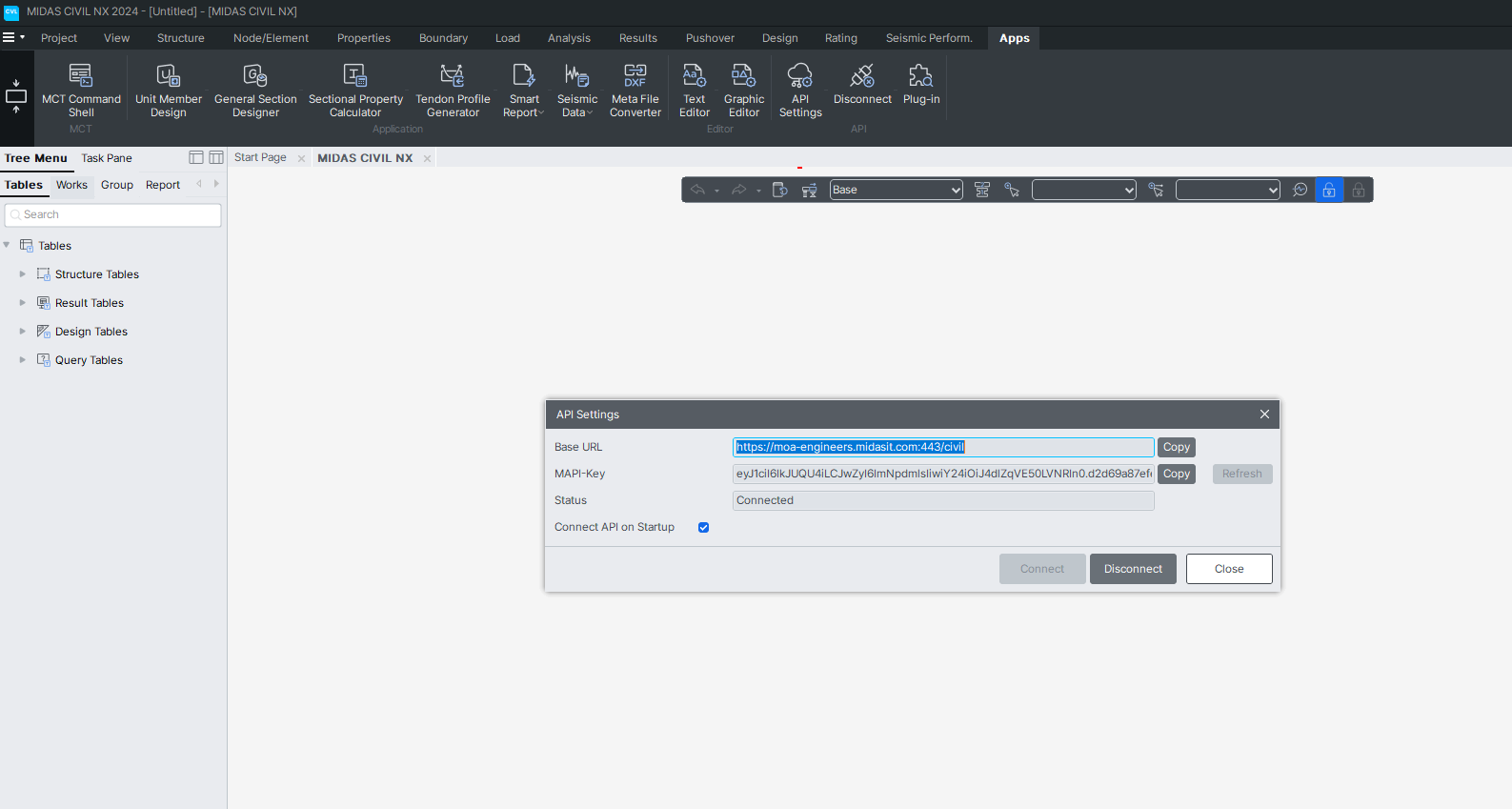

Normal Connection Status
Problem
When the user click the Connect button, but Status does not change.
Cause
Installed firewall on the users' computer can block "http Request" from internal(company) to external or refuse websocket connection.

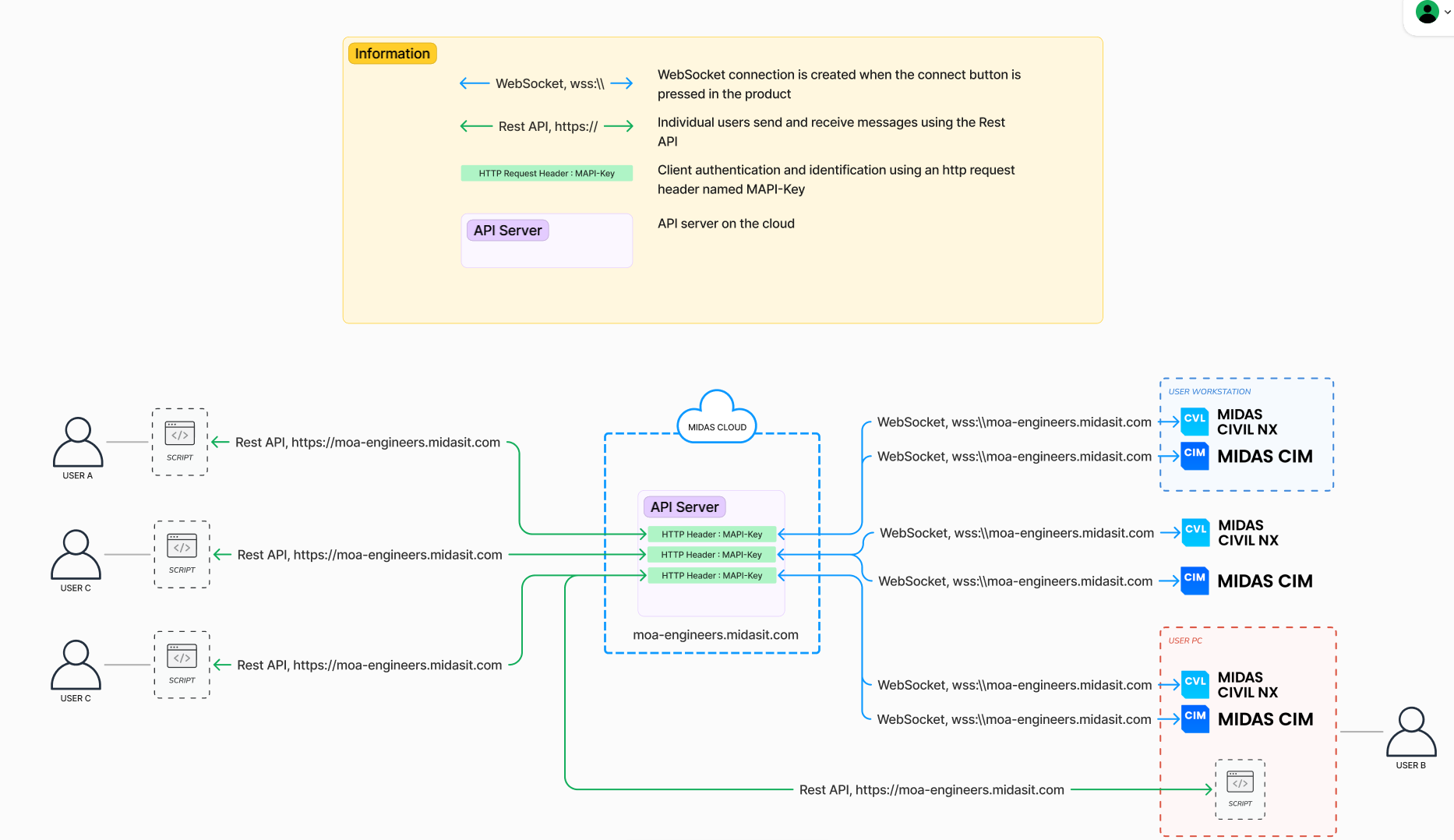

MIDAS API Connection schematic diagram
Solution
Please ask your Network Security department to allow the outbound connections required by MIDAS API and related online services.
Depending on your company's security policy, domain-based allowlisting, IP-based allowlisting, or both may be required.
1. URL / Domain Allowlist
Please allow access to the following domains required for MIDAS API and related online product functions.
| URL / Domain | Port | Protocol | Purpose |
| moa-engineers.midasit.com | 443 | HTTPS, WSS | MIDAS API and online product feature integration |
| moa.midasit.com | 443 | HTTPS | Web-based product features and service integration |
| moa-slaas.midasit.com | 443 | HTTPS | Execution of web-based product features |
2. MIDAS API Server IP Allowlist
If your company's security policy restricts outbound connections by destination IP address, please allow the IP address corresponding to your region.
The following IP addresses are used for moa-engineers.midasit.com.
| IP Address | Port | Protocol | Remarks |
| 43.203.33.189 | 443 | TCP | moa-engineers.midasit.com / Africa, Antarctica, Asia, South Korea, Oceania |
| 52.56.240.109 | 443 | TCP | moa-engineers.midasit.com / Europe, United Kingdom |
| 100.25.210.56 | 443 | TCP | moa-engineers.midasit.com / North America, South America, United States |
| 13.203.131.36 | 443 | TCP | moa-engineers.midasit.com / India |
Note: These regional IP addresses apply only to moa-engineers.midasit.com.
3. Proxy / SSL Inspection
If your company uses a web proxy, SSL inspection, or SSL interception, communication with the MIDAS API server may still be blocked even after the required domain or IP address has been added to the allowlist.
In this case, please ask your Network Security department to check whether moa-engineers.midasit.com can be excluded from SSL inspection.
Please also verify that WSS (WebSocket Secure) communication over port 443 is permitted.
If WebSocket communication itself is blocked by the company's network policy, adding the domain or IP address to the allowlist alone will not resolve the connection issue.
Previous Experiences
- Customer A Company
We proceeded to a SSL bypass to the URL provided by Midas.
We use a web proxy by which all user requests pass through. This web proxy performs SSL interception and certain hosts refuse this type of practice so it ends up getting blocked. We then excluded the URL from the SSL interception and it solved the issue"
- Customer B Company
I’m part of the 'Some Company' Cybersecurity Architecture team and I assisted engineers in resolving the issue. The issue was related to the SSL inspection on our firewalls. Like many large companies, we perform SSL inspection on most of our traffic. We needed to exclude the API server(moa-engineers.midasit.com). access from SSL inspection, which resolved the issue.
