[CIM] I followed the CIM tutorial on the Midas website, and each step was saved. However, when I open the file, the model disappears. How can I access it?

Question

I followed the CIM tutorial on the Midas website, and each step was saved. However, when I open the file, the model disappears. How can I access it?

Answer

Kindly follow the steps below to access the model.

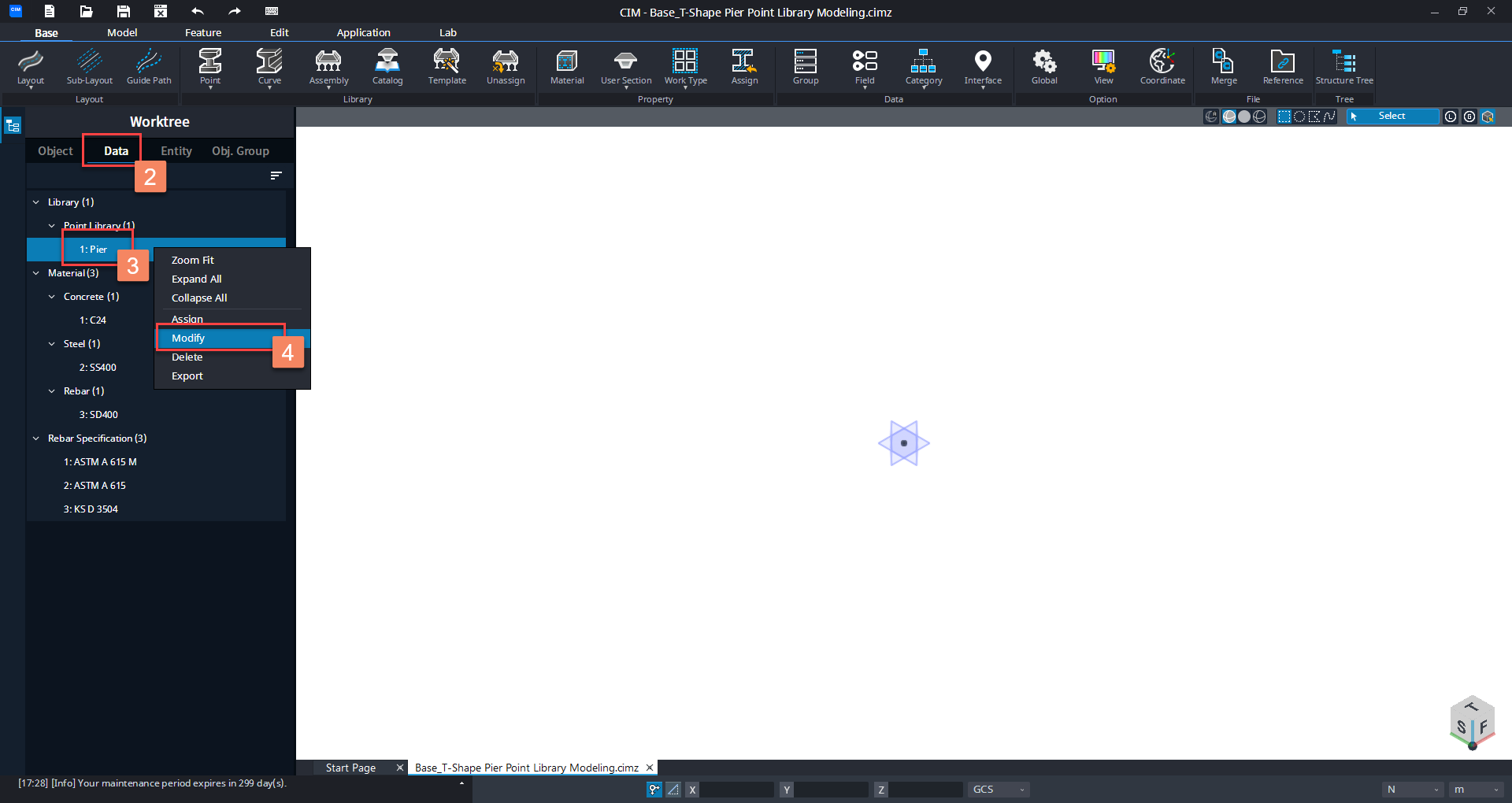

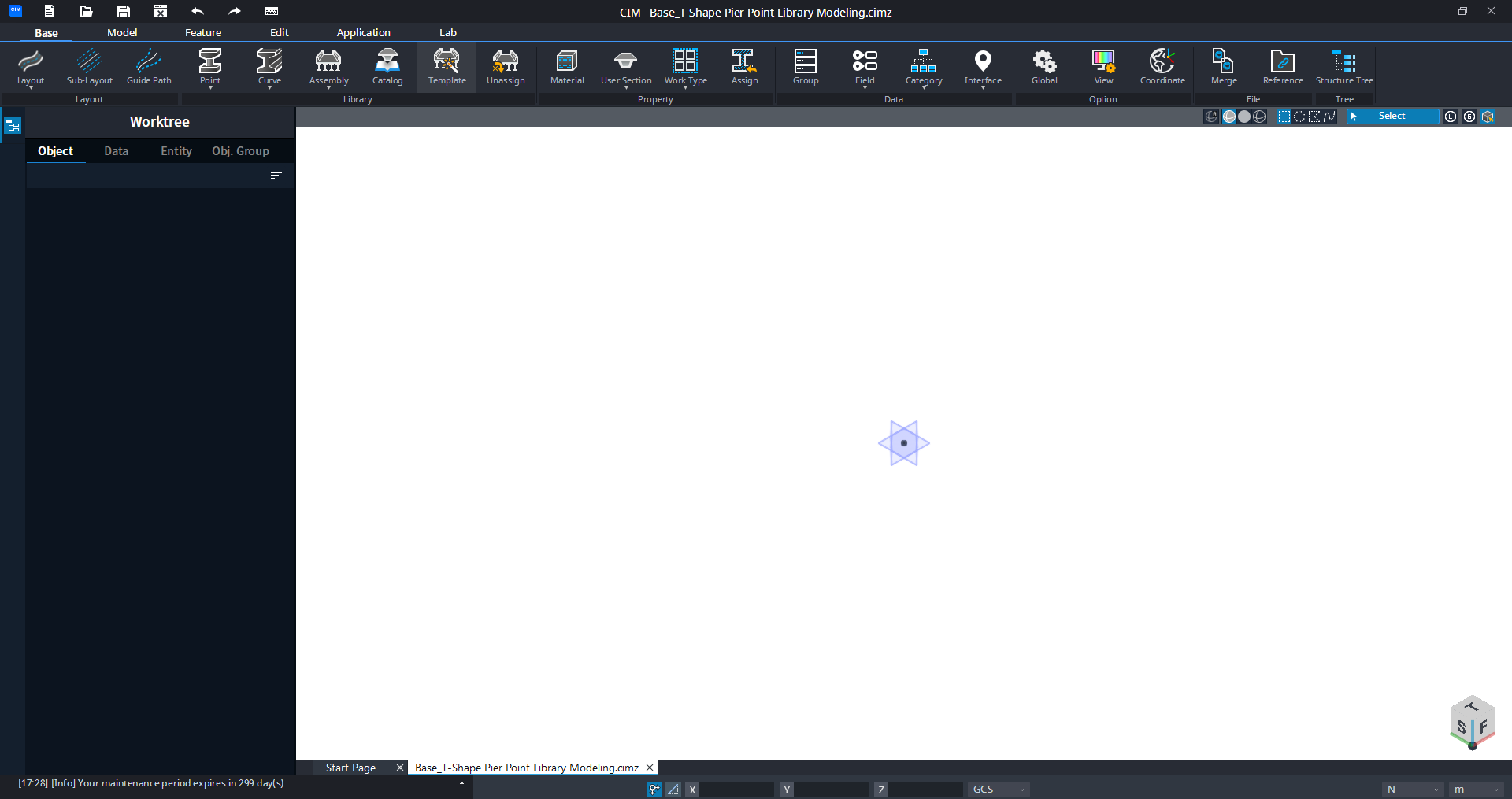

1. Open the CIM model file—the following screen will be displayed.

2. Under Worktree, select the Data tab.
3. Under Point Library, right-click on '1: Pier'.
4. From the drop-down menu, select the Modify option.

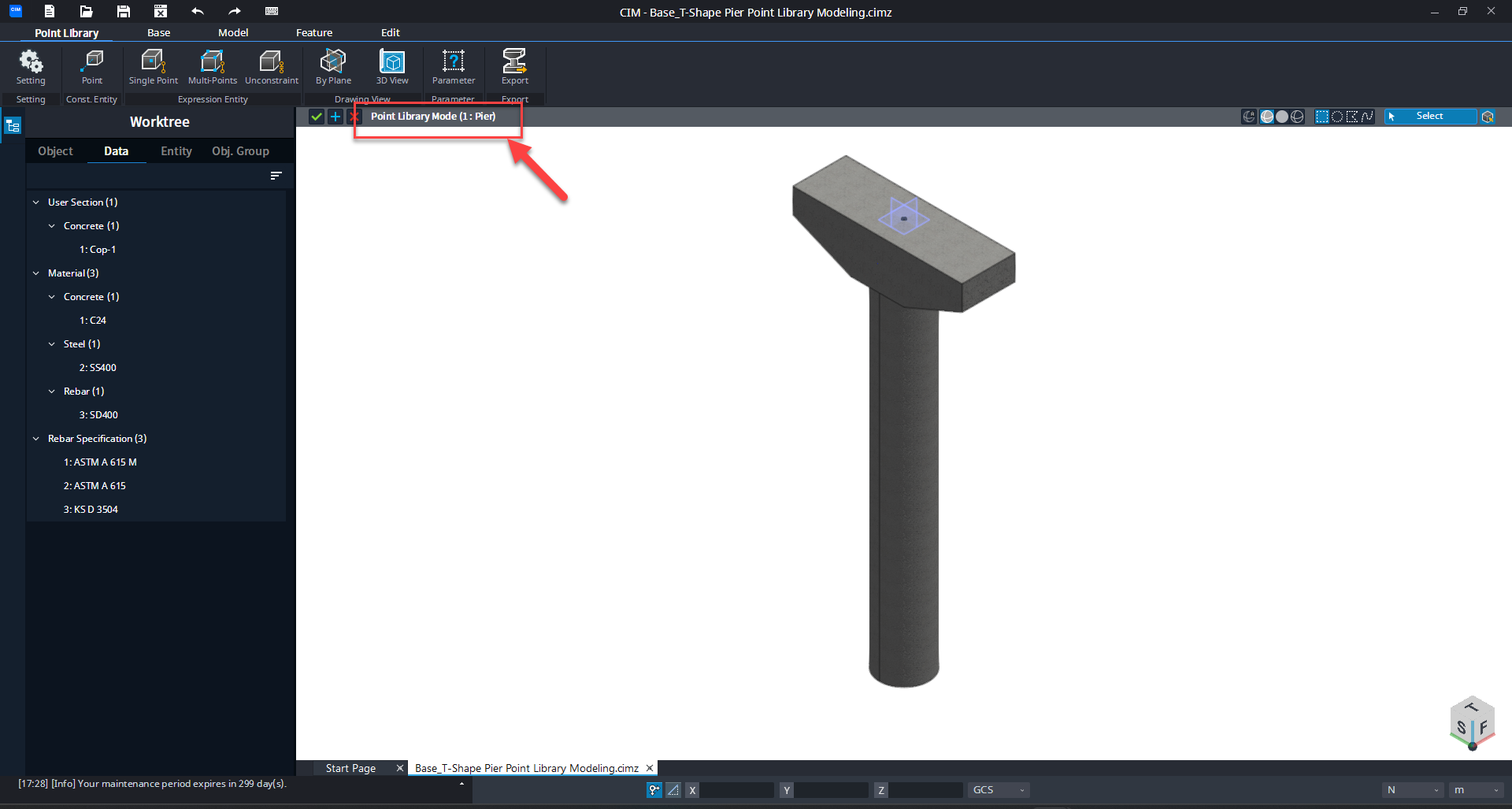

5. The library you modeled will then be displayed.

All the libraries that you model, shall be displayed under the Worktree> Data.
