How to model lap in rebar?
Answer
Rebar Lap can be modeled in CIM by defining the lap properties in the Property Tab of the rebar.
[Note: To understand the basics of rebar modeling, you may click on this link.]
Using the following method, the rebar lap can be modeled for both transverse and longitudinal rebar:

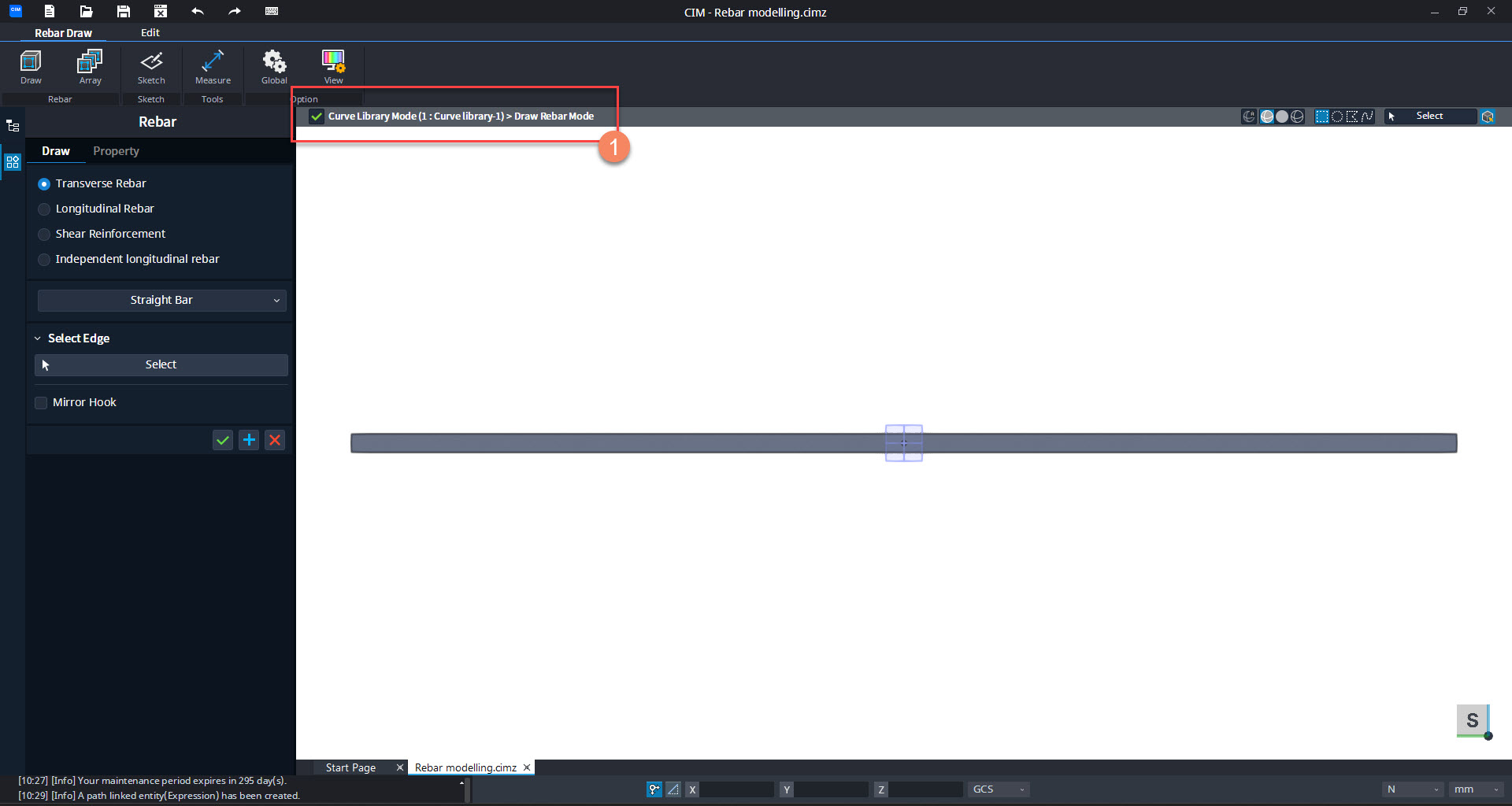

- To model the lap in rebar, first, enter the Draw Rebar mode in the Library.

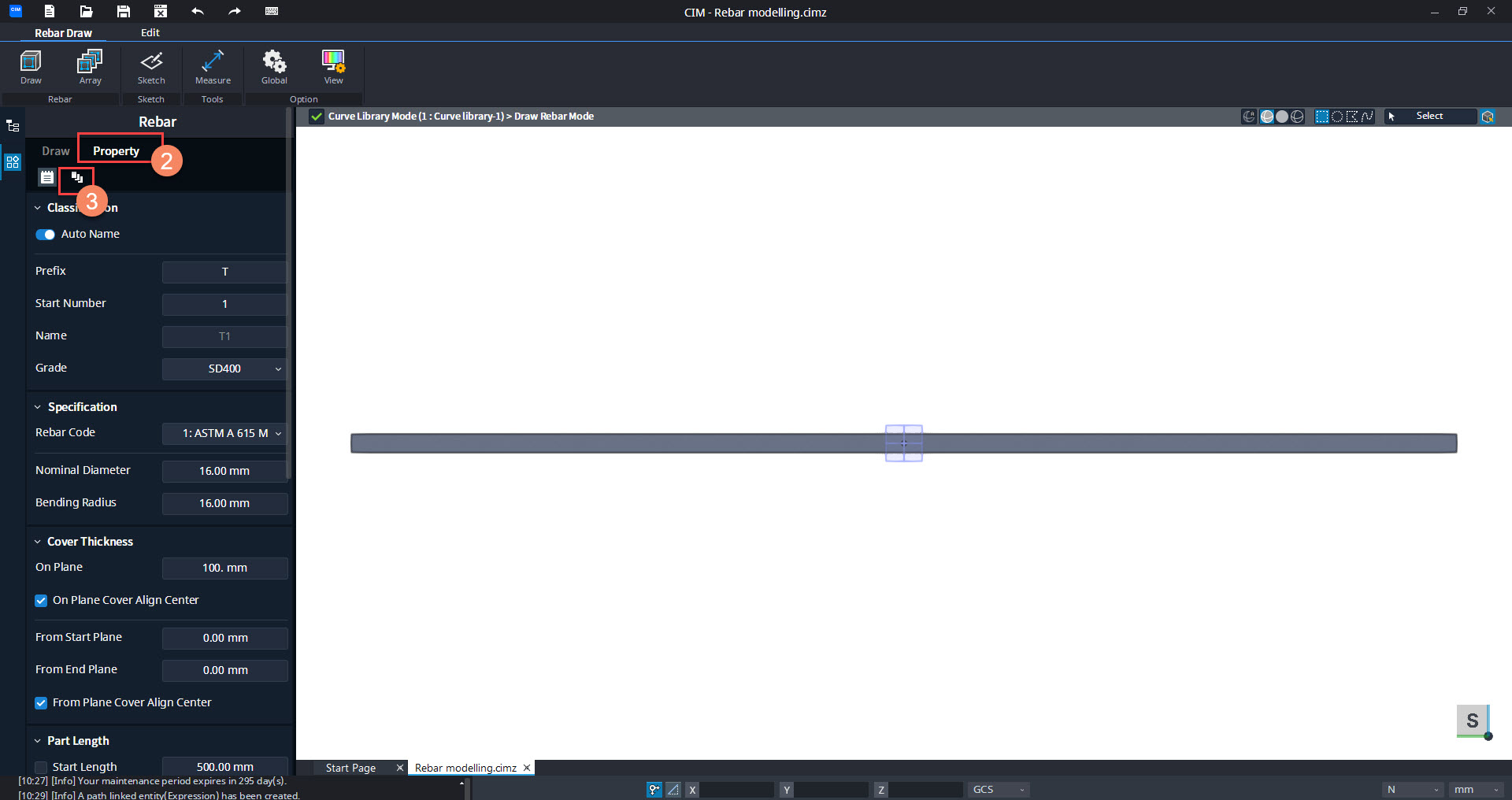

- Click on the Property tab.
- Click on the second tab below the Property tab.

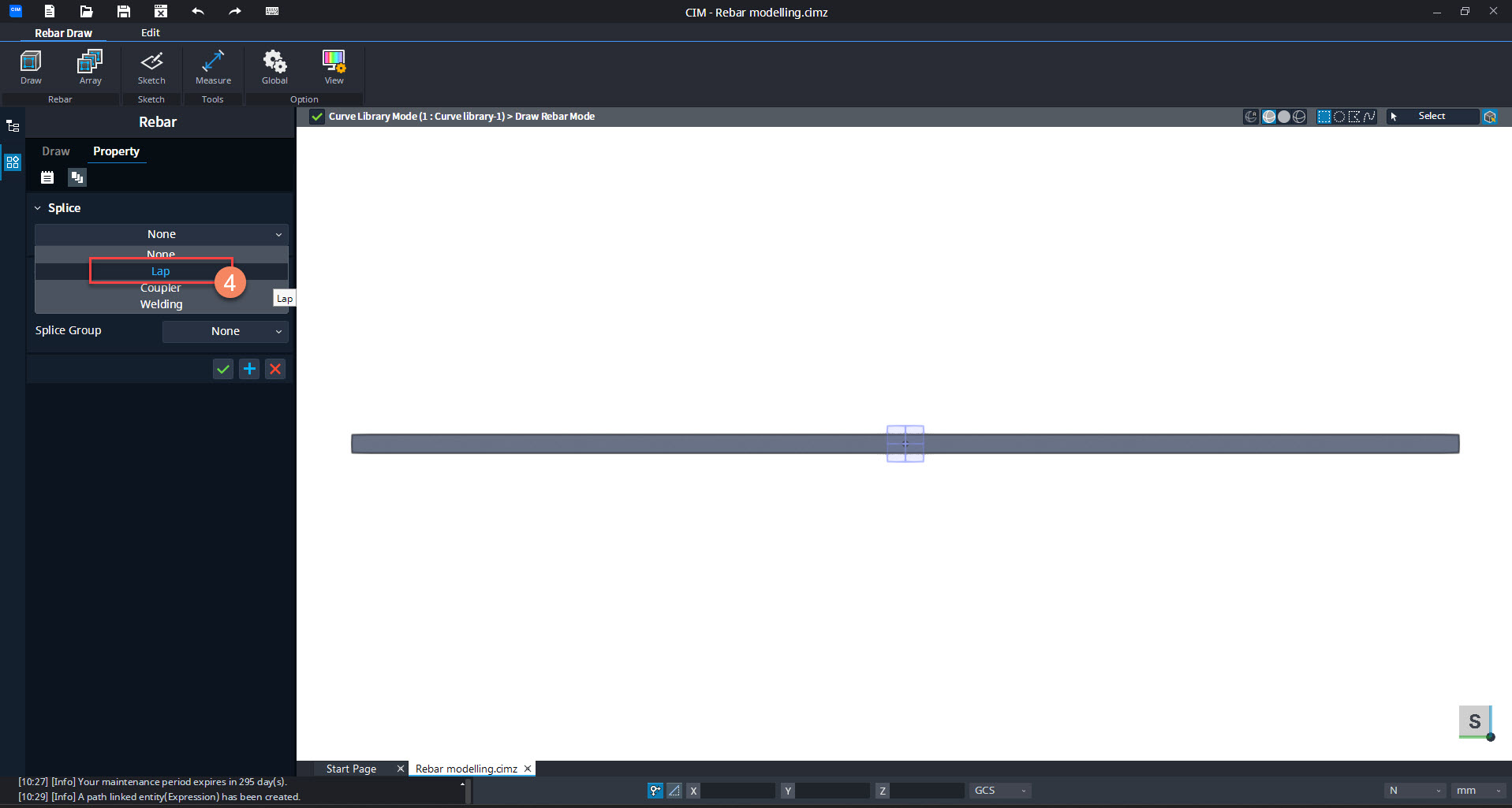

- From the drop-down menu under the Splice option, select Lap.

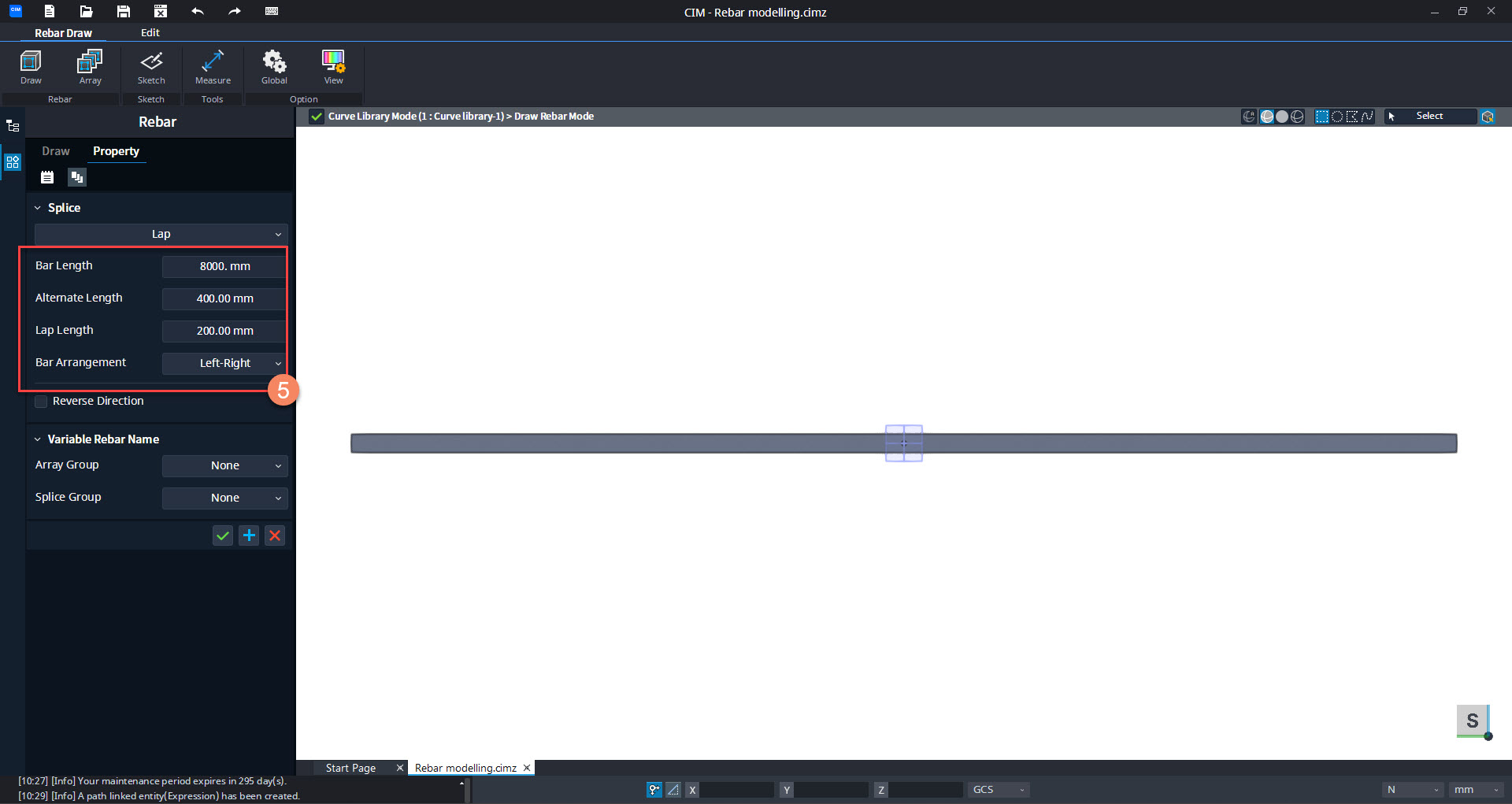

- Define the Rebar Lap Properties by specifying the Bar Length, Alternate Length, Lap Length, and Bar Arrangement.
- Enter the other rebar properties as usual and model the rebar. The modeled rebar will include the lap based on the defined properties.
Adding a Lap to an Already Modeled Rebar
If you have already modeled a rebar without a lap and later want to add one, follow the steps below:

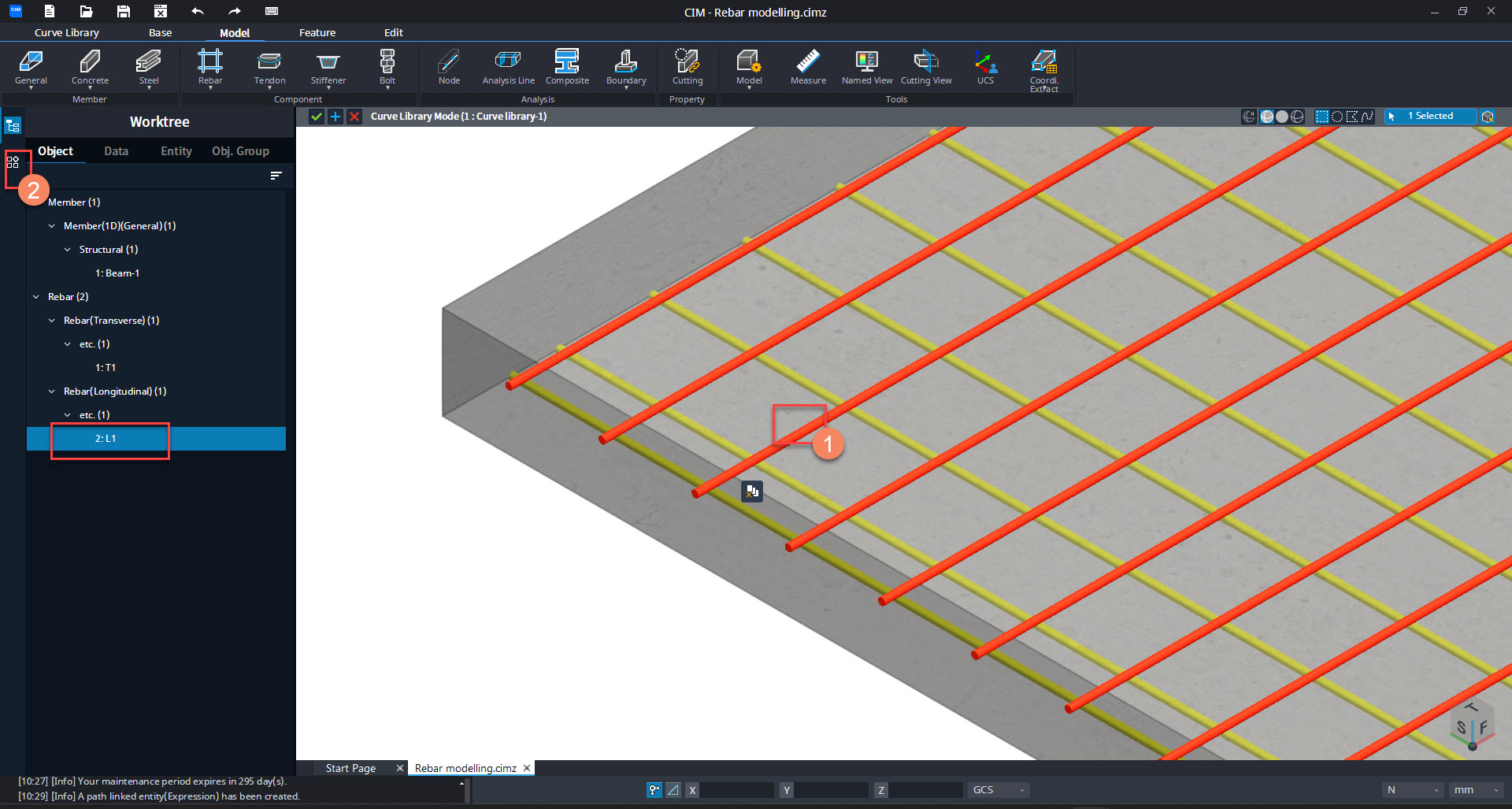

- Select the rebar(inside the library) to which you need to add the lap using the left mouse click.

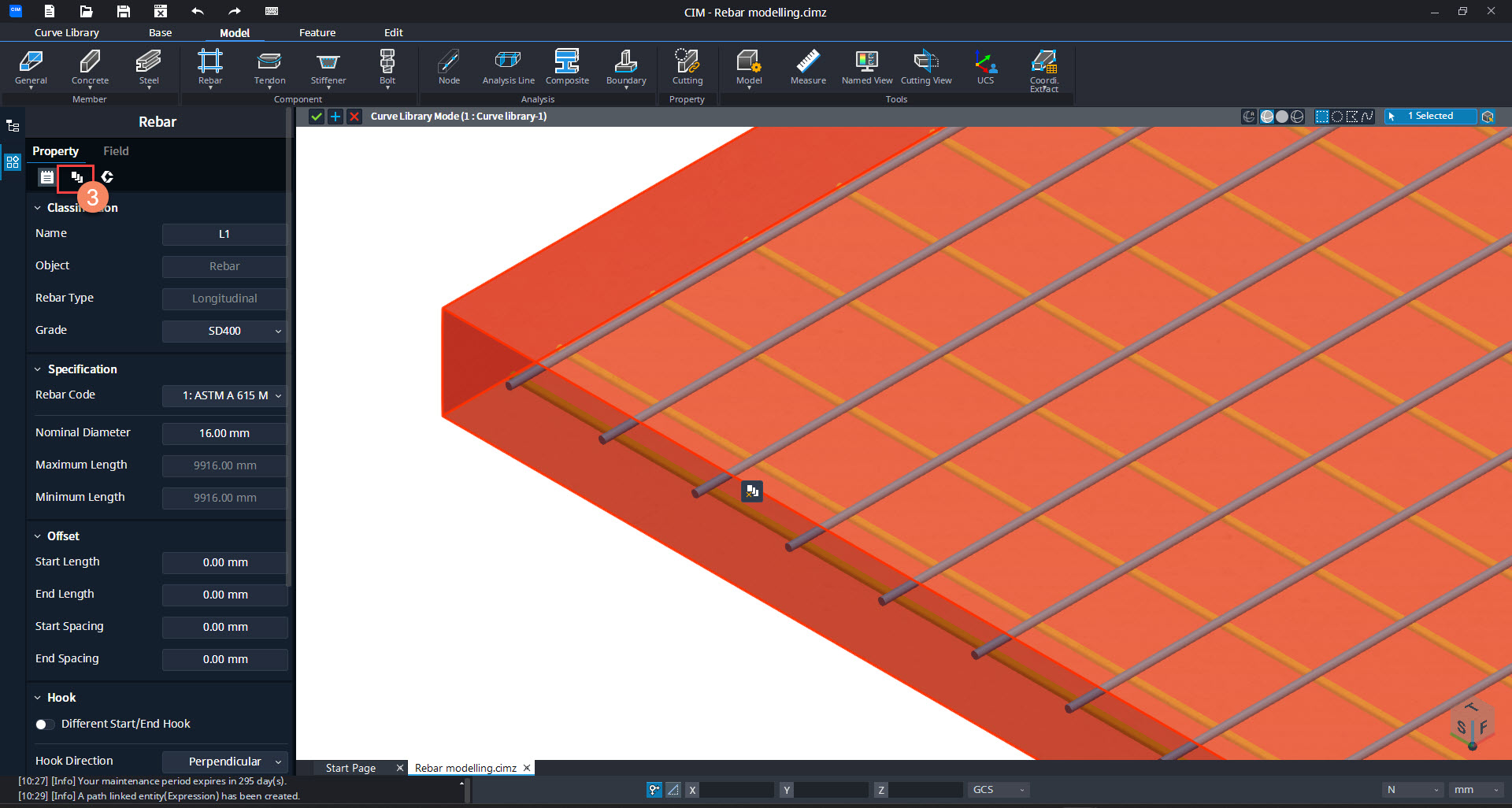

- Click on the Properties tab.
- Click on the second tab below the Property tab.

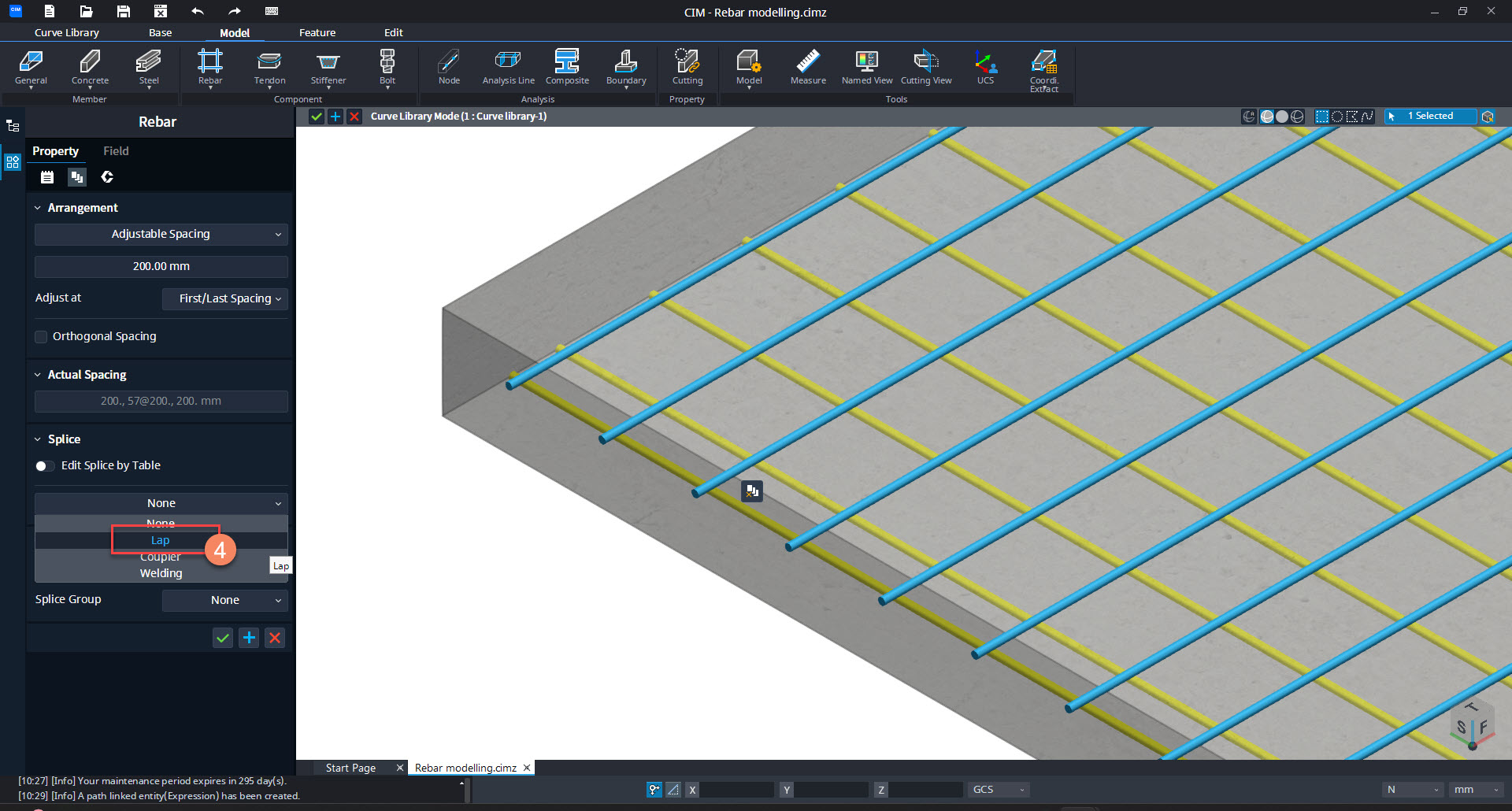

- From the drop-down menu under the Splice option, select Lap.

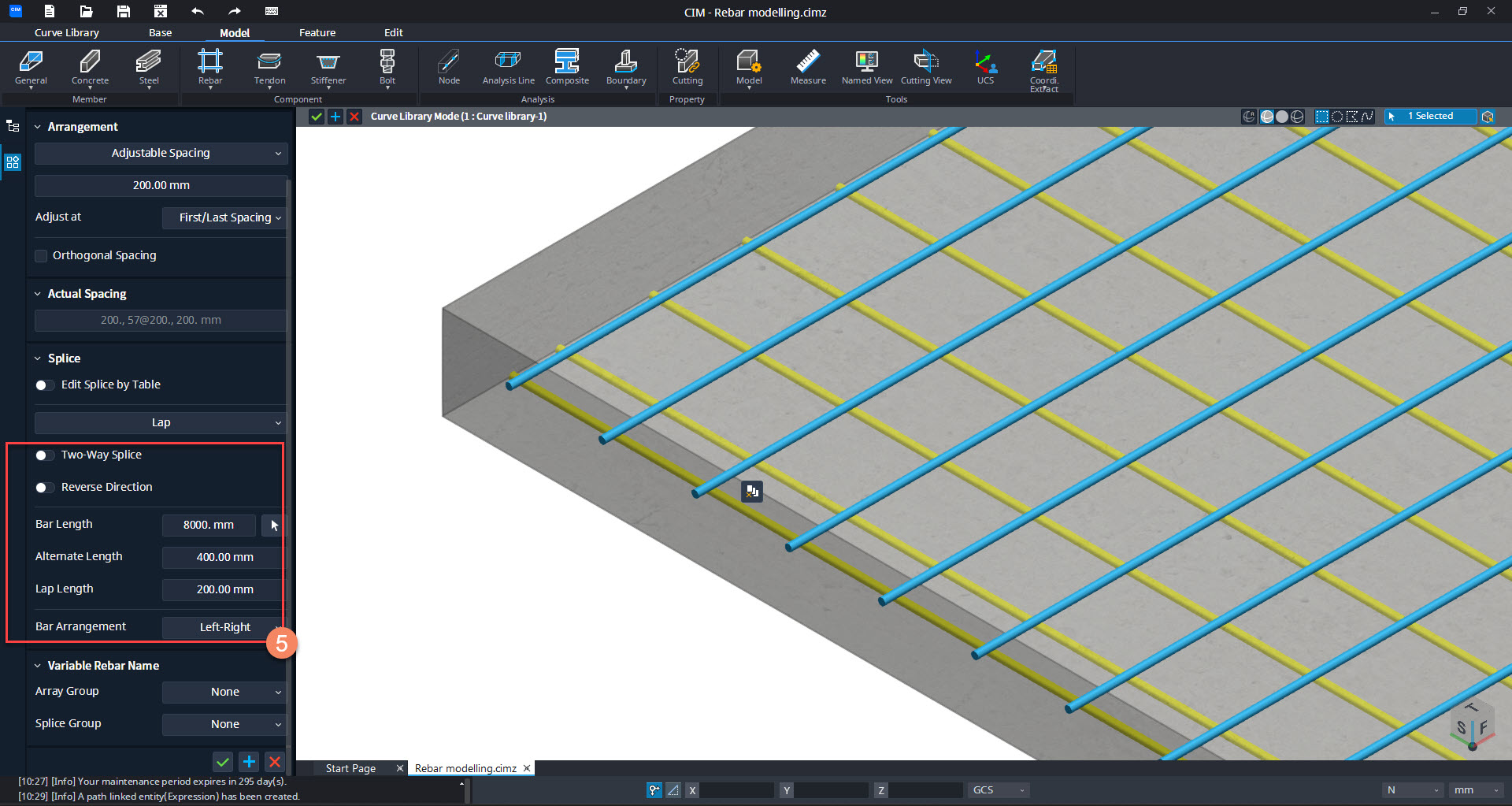

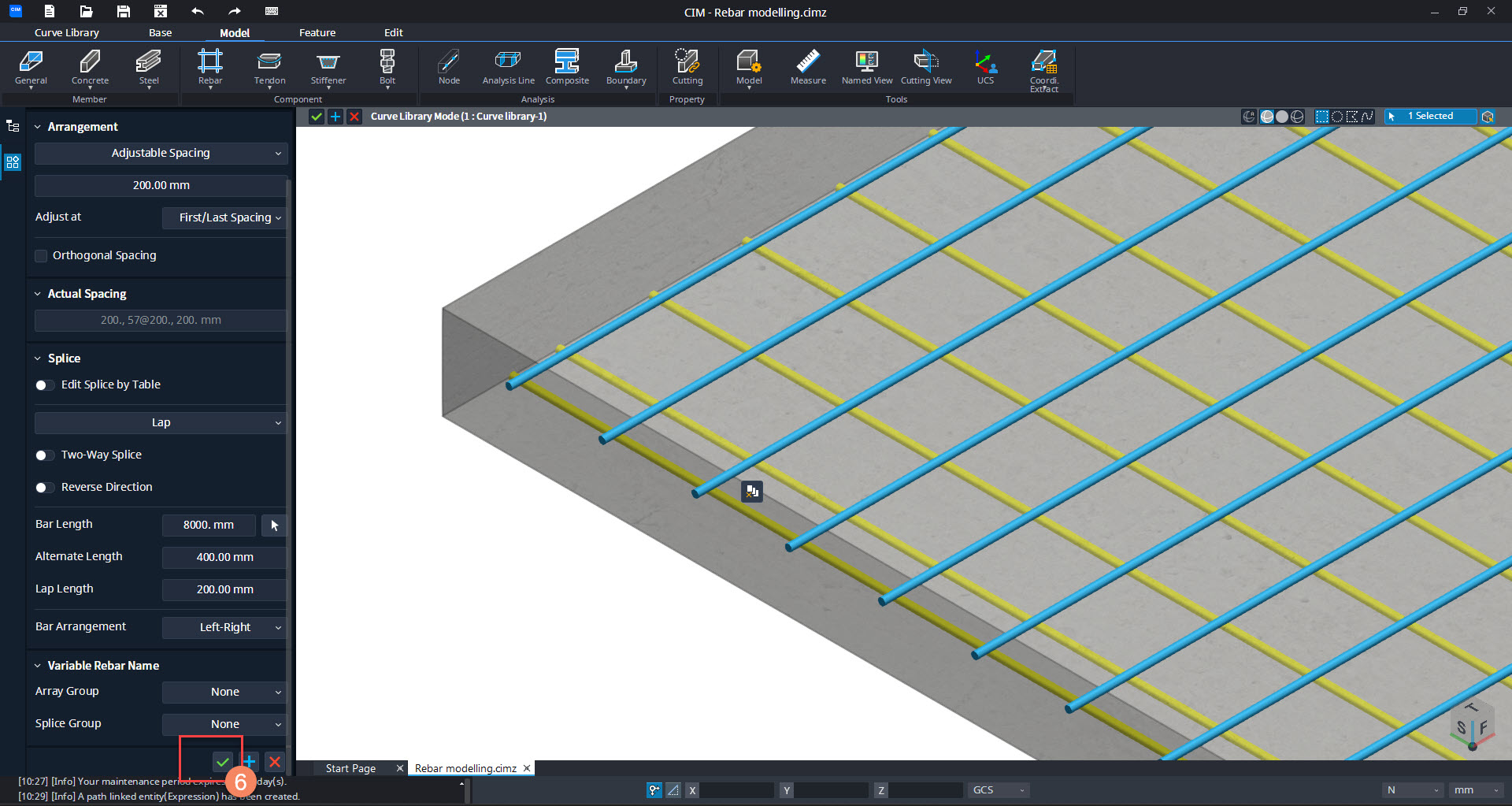

- Define the Rebar Lap Properties by specifying the Bar Length, Alternate Length, Lap Length, and Bar Arrangement.

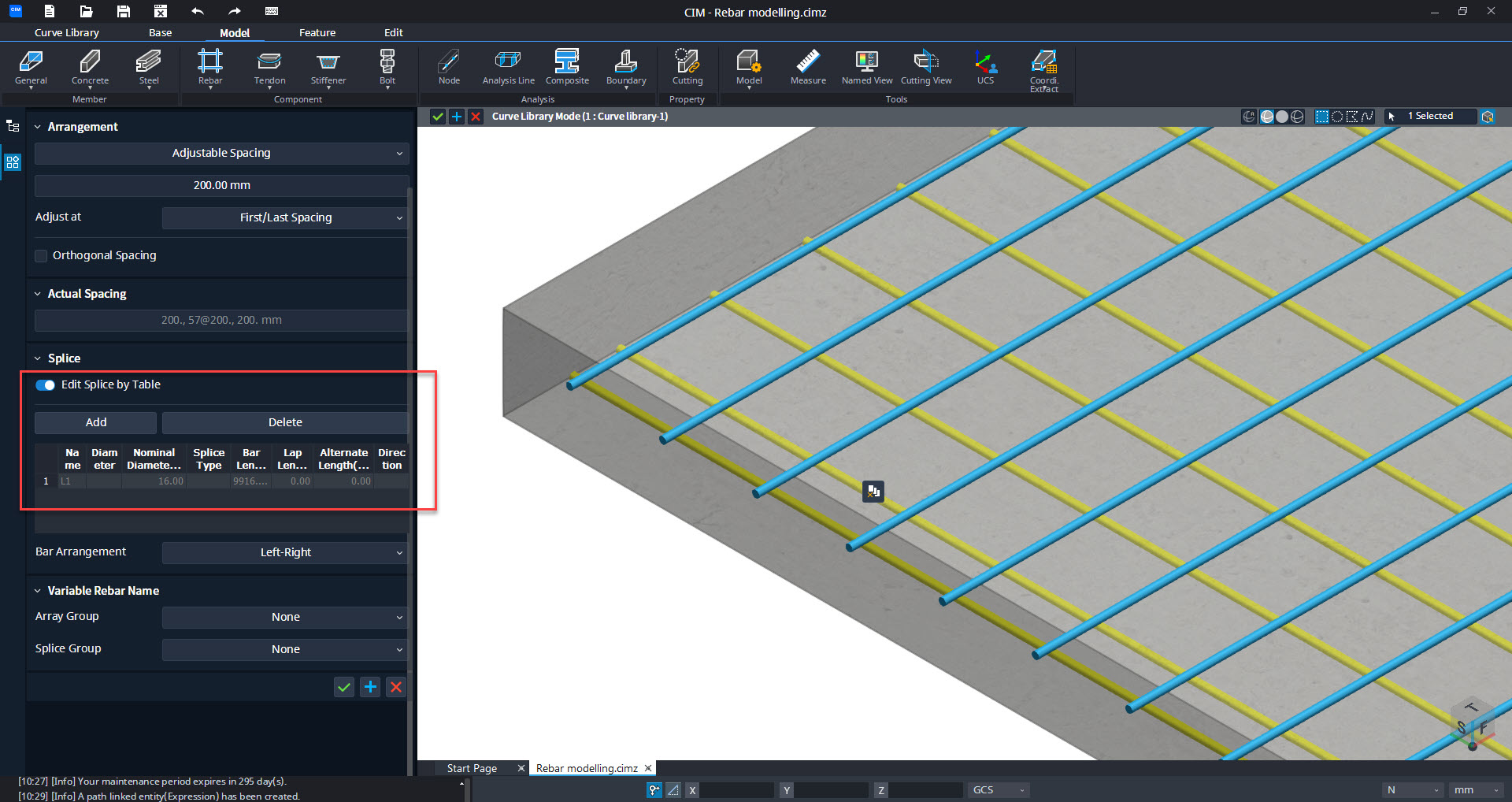

[Note: If you need to model a complex rebar lap, check the Edit Splice by Table option, click Add, and define the lap properties in the table.]
- Click on the Green Tick at the bottom.

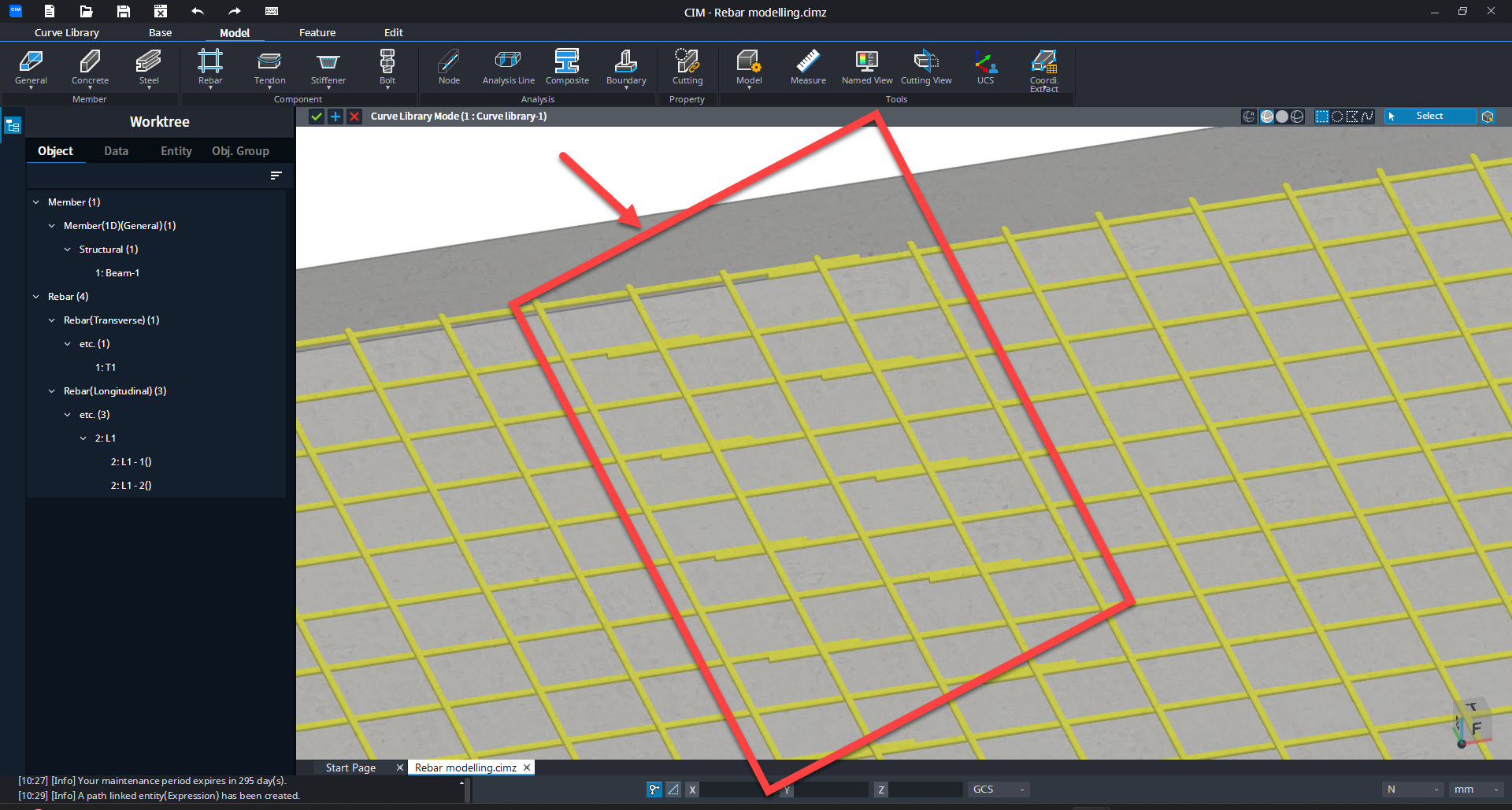

- The lap will now be modeled in the rebar based on the properties you have defined.
