[CIM] How to dynamically rotate the model in CIM?

Question

How to dynamically rotate the model in CIM?

Answer

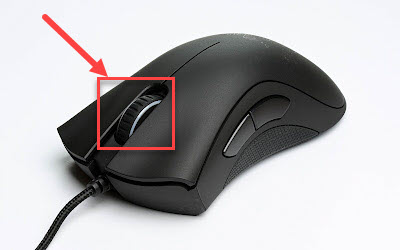

To dynamically rotate the model, press and hold the 'Ctrl' key while simultaneously clicking the scroll wheel of the mouse. Then, move the mouse while holding both, and you will observe that the model rotates dynamically.

1. mouse.jpg
