Question

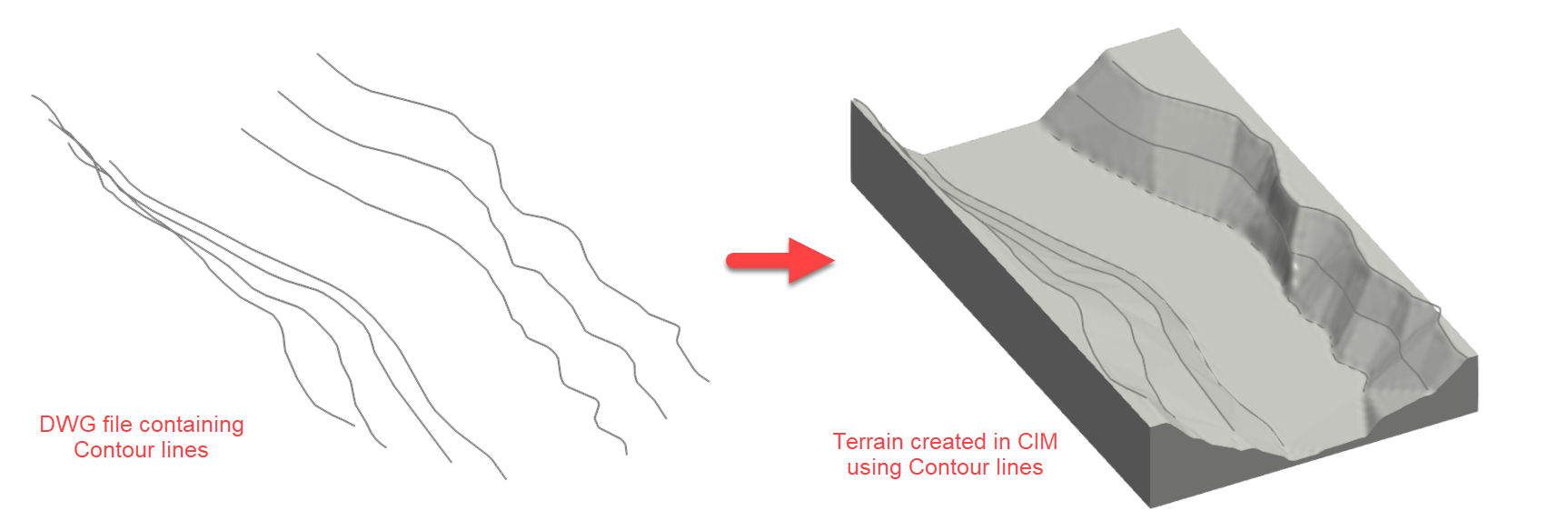

How to create terrain in CIM using the DWG Contour lines?
Answer
Follow these steps to create terrain profile in CIM using DWG contour line data:
Importing the DWG file in CIM project:

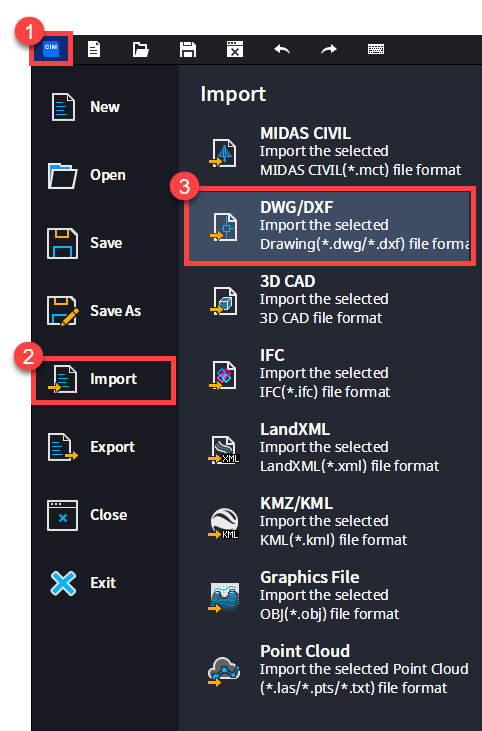

Step 1: Click on the CIM icon at the top-left corner of the application window
Step 2: Click on the Import option
- Alternatively, press Ctrl+1 key on keyboard to open the Import DWG dialog box
Step 3: Choose DWG/DXF file option
An Import DWG file dialogue box shall appear on the screen.

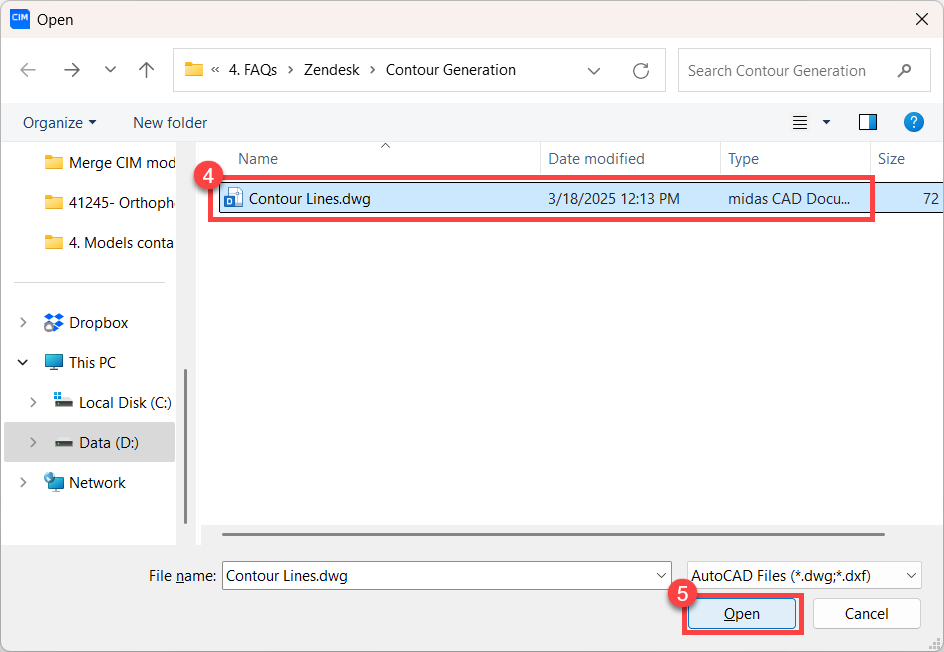

Step 4: Select the DWG file which contains contour data
Step 5: Click on Open button
Note: If the contour lines in the DWG file use Geographic Coordinates, ensure the correct Geographic Coordinates are set in CIM before importing.

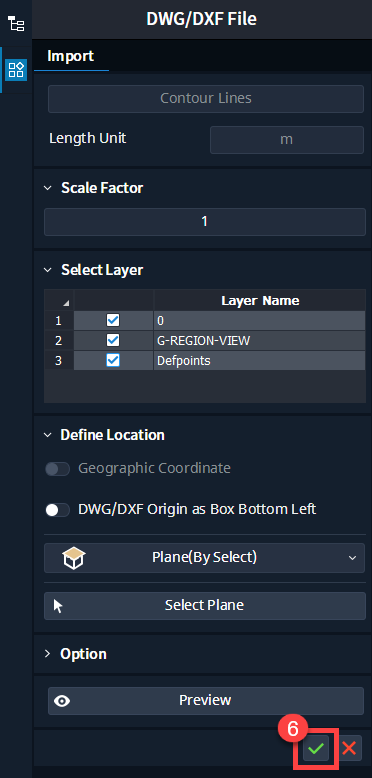

Once you click on Open button, in CIM, a menu panel shall appear on the left of model window
Step 6: Click on Apply button at the bottom of menu panel to import the contour line.
Now the contour lines have been imported into our CIM file.
Generating Terrain from DWG Contour lines:

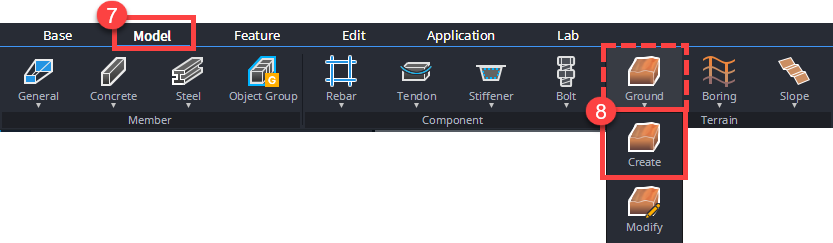

Step 7: Navigate to Model ribbon
Step 8: Click on Ground> Create option
A menu panel shall appear on the left of modelling window.

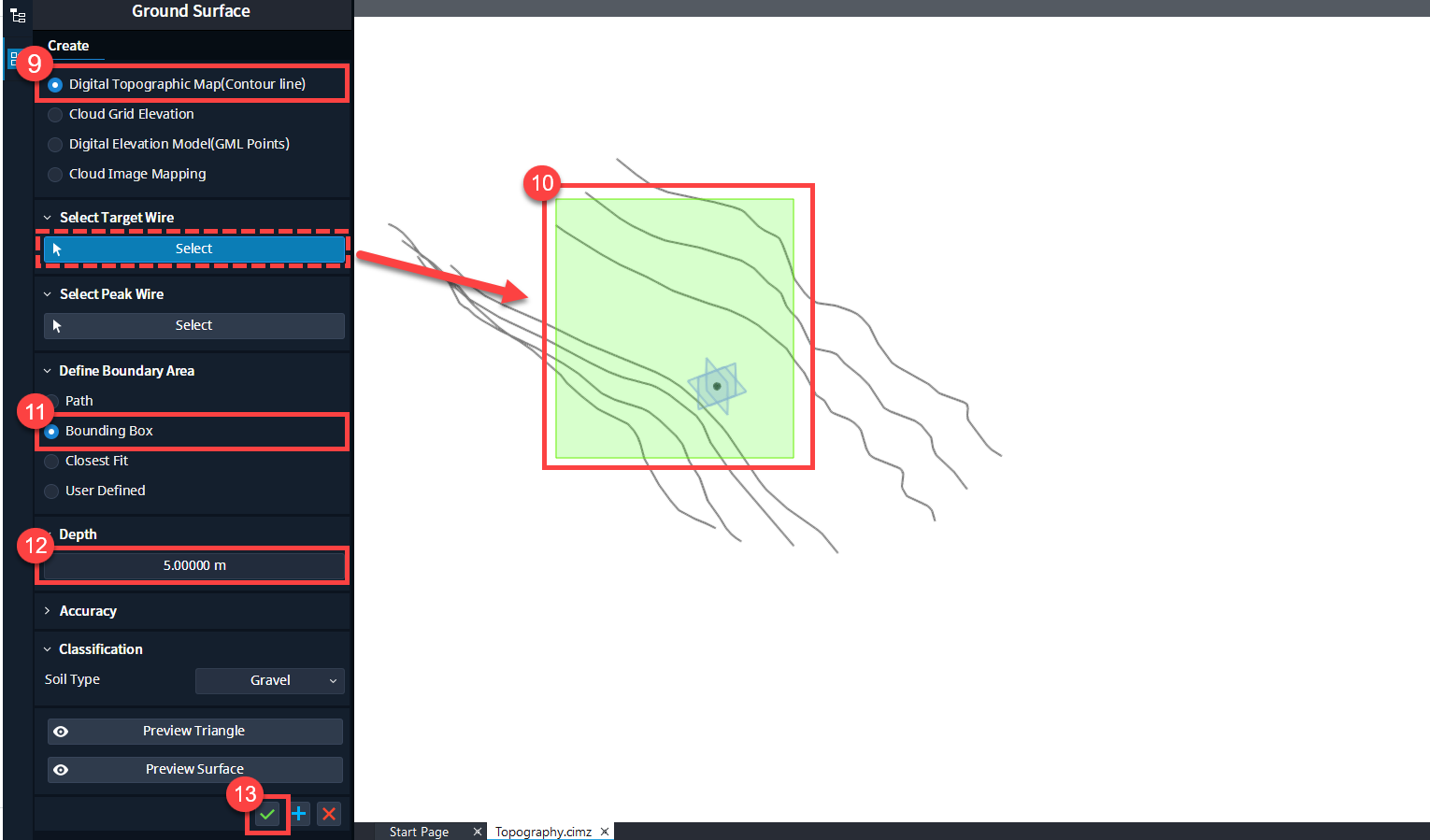

Step 9: Select Digital Topographic Map (Contour line) option
Step 10: Using cursor cross selection, select the Contour lines in model window
Step 11: Under Define Boundary Area sub-section, select the Bounding Box option
Note: User can choose the type of Boundary area he wants to model for the given terrain profile. Brief about the Boundary area definition methods is provided below:
- Path: Creates an offset boundary along a selected path
- Bounding Box: Forms a rectangular boundary around the outermost points
- Closest Fit: Connects the innermost points to create the boundary
- User defined: Allows manual boundary creation
Step 12: Assign the Depth of terrain (Optional)
Step 13: Click on Apply button to generate the Terrain profile

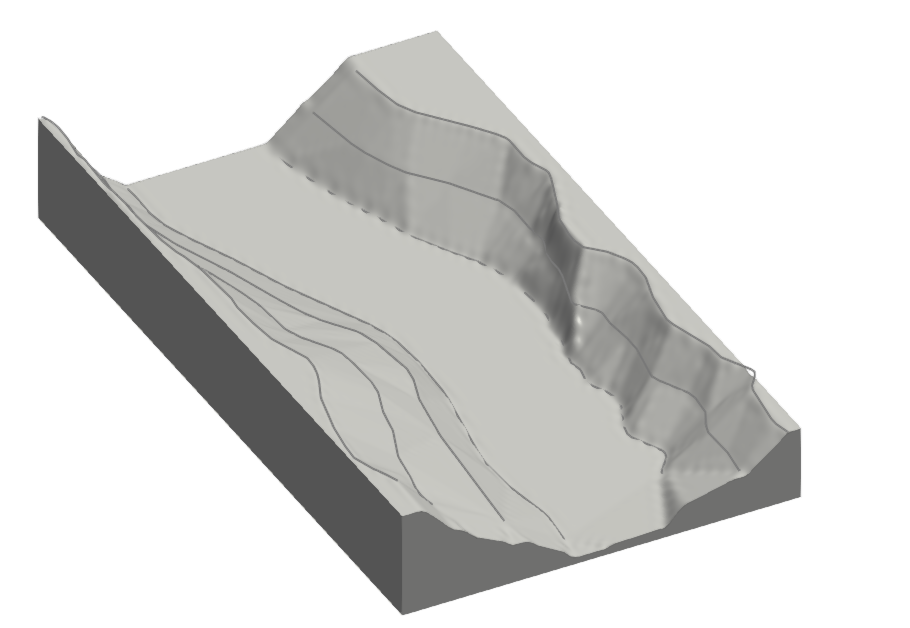

A terrain model will be created based on the imported contour lines.
By following these steps, you can efficiently generate a terrain profile in CIM using DWG contour files.
