Question
How to annotate all the rebars in a view at once?
Answer
When working in CAD Infra Design, adding details to the views generated from the CIM model is one of the essential steps in the CIM environment. This step is further simplified by provision of a quick annotation command.
An example, to use the above command is shown in the steps ahead.

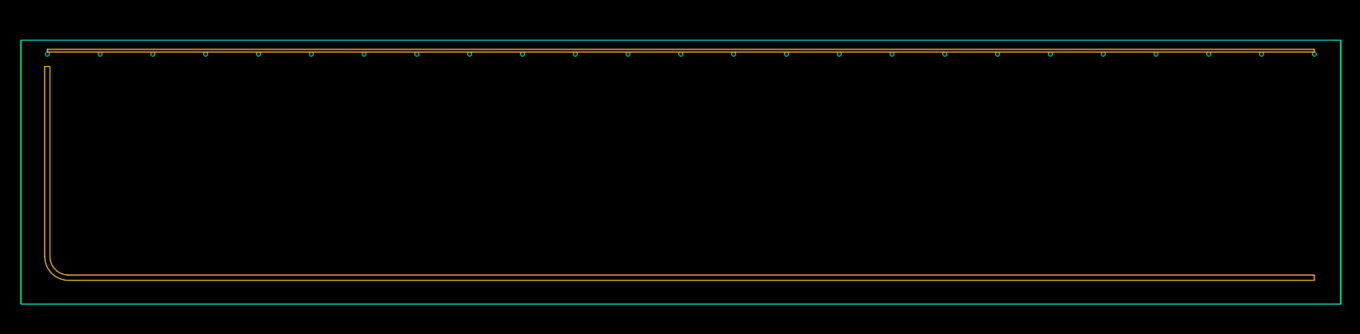

The image below highlights multiple rebars in a cross section view.
To annotate all the rebars in the view above at once, we use the command Object Show.

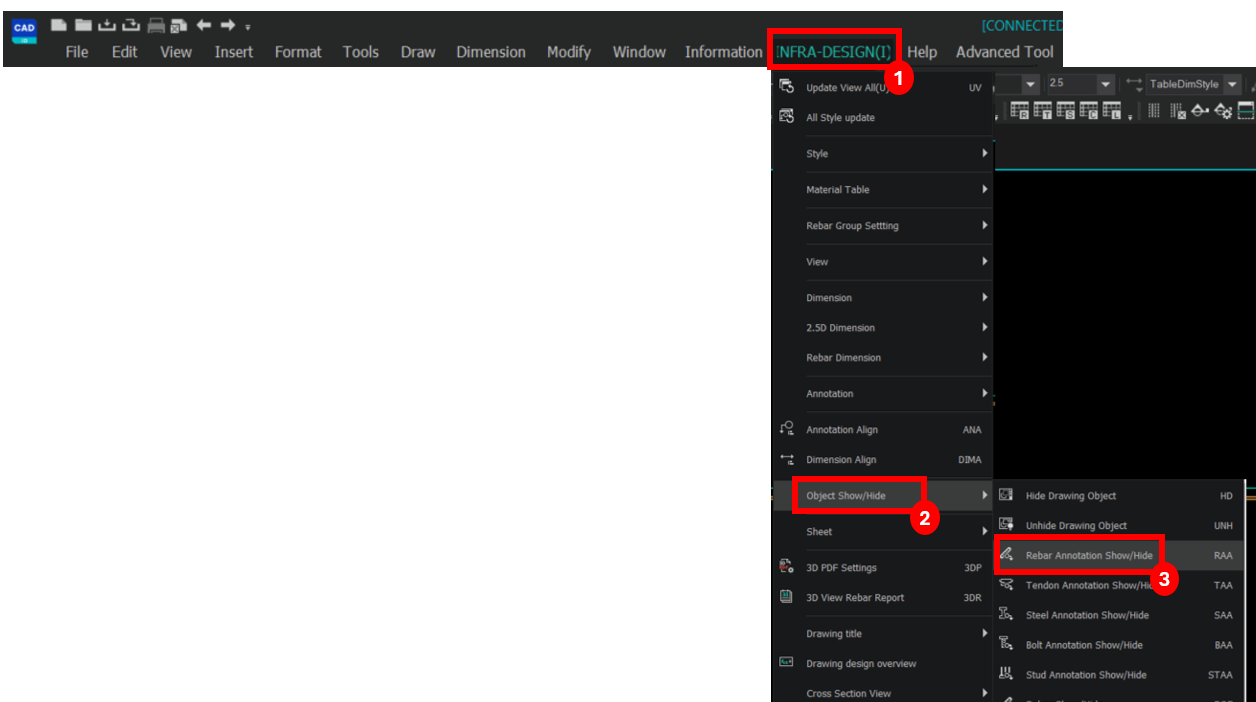

This can be found in the CAD Infra Design interface as shown in the image below.
Infra Design > Object Show/Hide > Rebar Annotation Show/Hide
Once selected, the command bar prompts a message Select view [All(A)] : as shown below

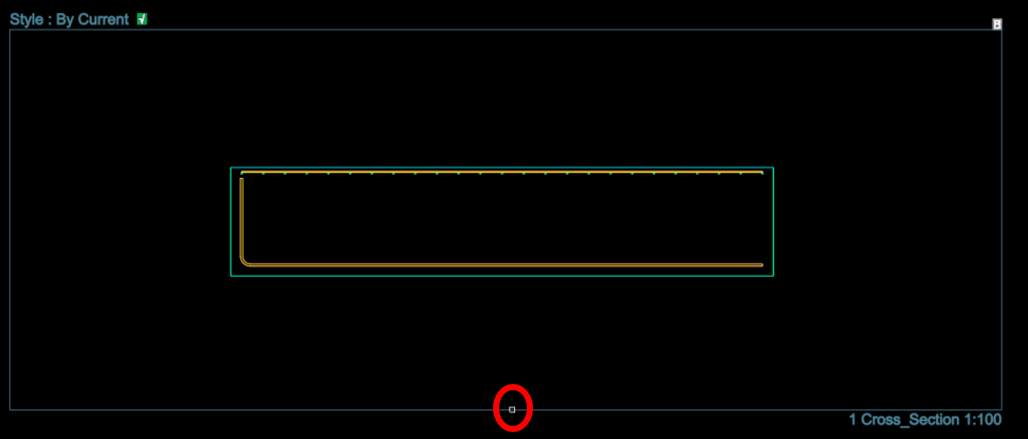

Use the cursor pickbox to choose the view as shown in the highlighted circle in red in the image below
Upon selection, press (enter/spacebar) to confirm
Next, the command bar prompts a message Object Setting [Show(S) Hide(H) Toggle(T)]: as shown below
Here, in command bar input S and press (enter/spacebar) to confirm

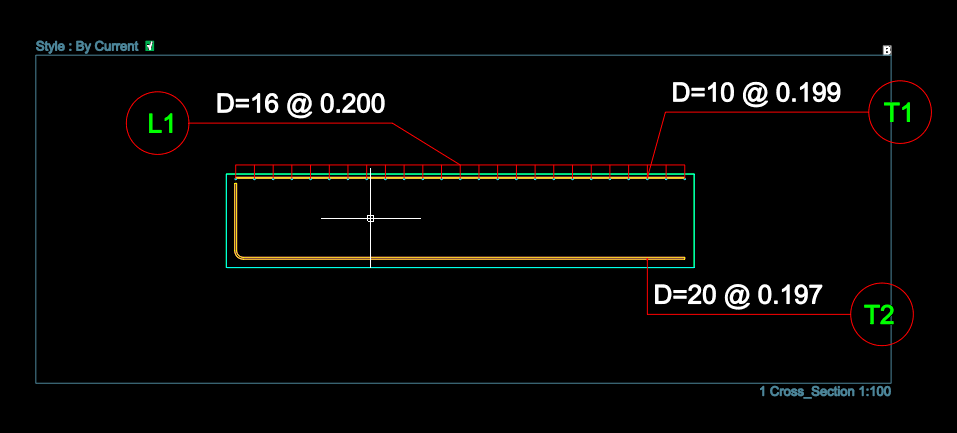

The result of the command shall be displayed in the CAD ID interface as shown in the image below.
With this function rebar annotation for all the rebars in a view can be achieved at once.
