Intro
The Easy Load Combinations plug-in simplifies the process of creating load combinations in MIDAS CIVIL NX. With just a few clicks, users can import load cases, apply combination factors, and directly send the combined load cases into their models, saving time and reducing errors.
Applicable standards
- General Use
Benefits of this plugin
- Automatic Import: Load cases are automatically imported and updated to match your MIDAS modeling file.
- Effortless Combination: Quickly create new load combinations by selecting load cases and applying factors.
- One-Click Application: Send combined load cases directly into your model with a single click.
How to use this plugin?
Concrete Tab

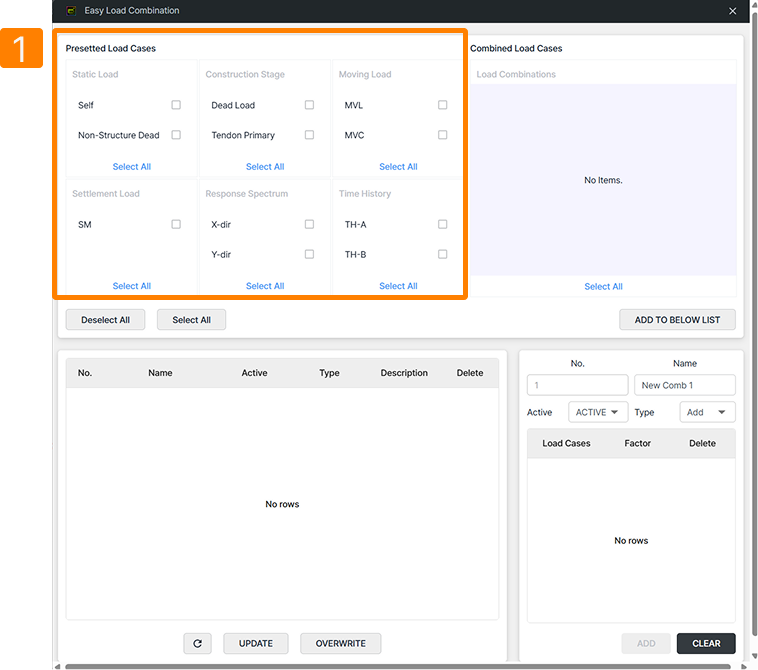

- Open the plug-in, and it will automatically import all load cases from your MIDAS CIVIL NX file.

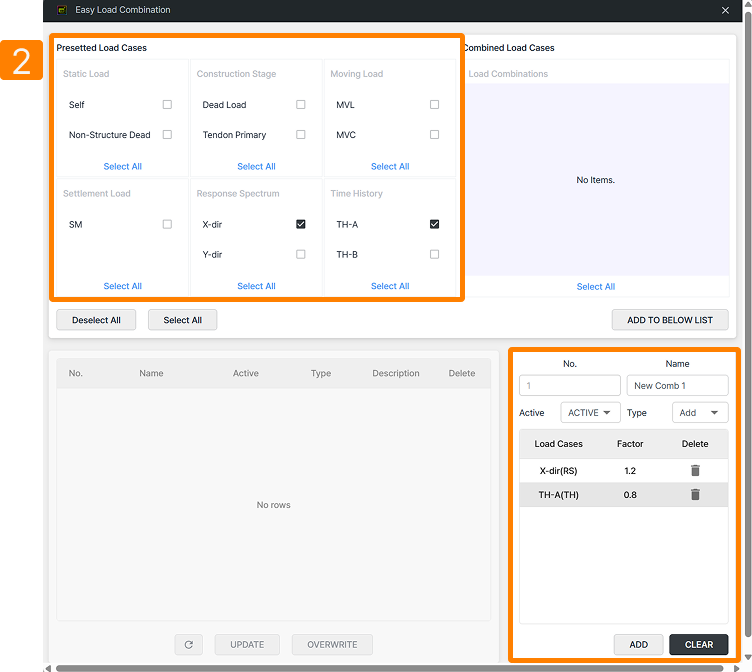

- Choose the desired load cases from the list provided in the plug-in interface. Enter the appropriate combination factors for each selected load case as per design requirements.

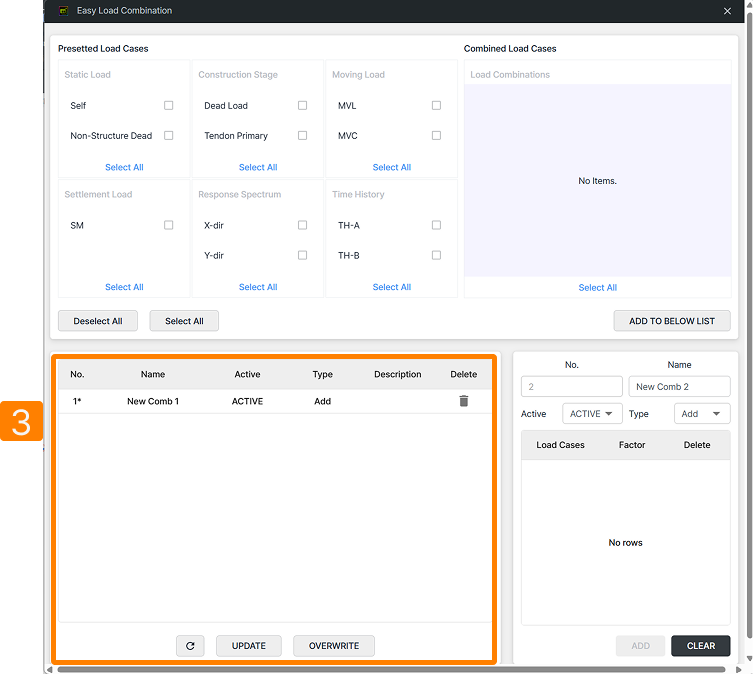

- Click [add] to generate a new set of load combinations based on your input parameters. Click Update/Overwrite button to send Load Combinations to the CIVIL NX.

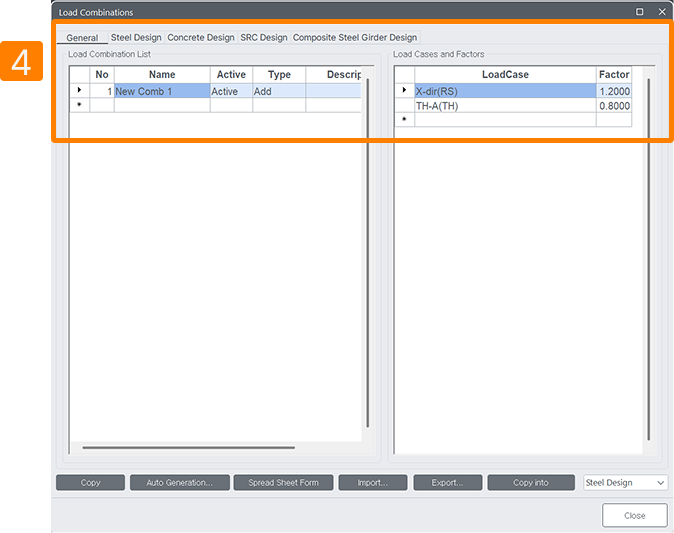

- You can check whether the data update successfully or not in the product (Result > Load Combination).
Note
-
- Ensure that all imported load cases match your MIDAS CIVIL NX model before creating combinations.
- For Eurocode moving loads, ensure you are using version 1.1.0 or later to avoid compatibility issues.
- Double-check combination factors for accuracy before applying them to your model.
