Question
How can I integrate it with CIVIL NX?
Answer
To use MIDAS GH, you must first establish a connection with CIVIL NX.

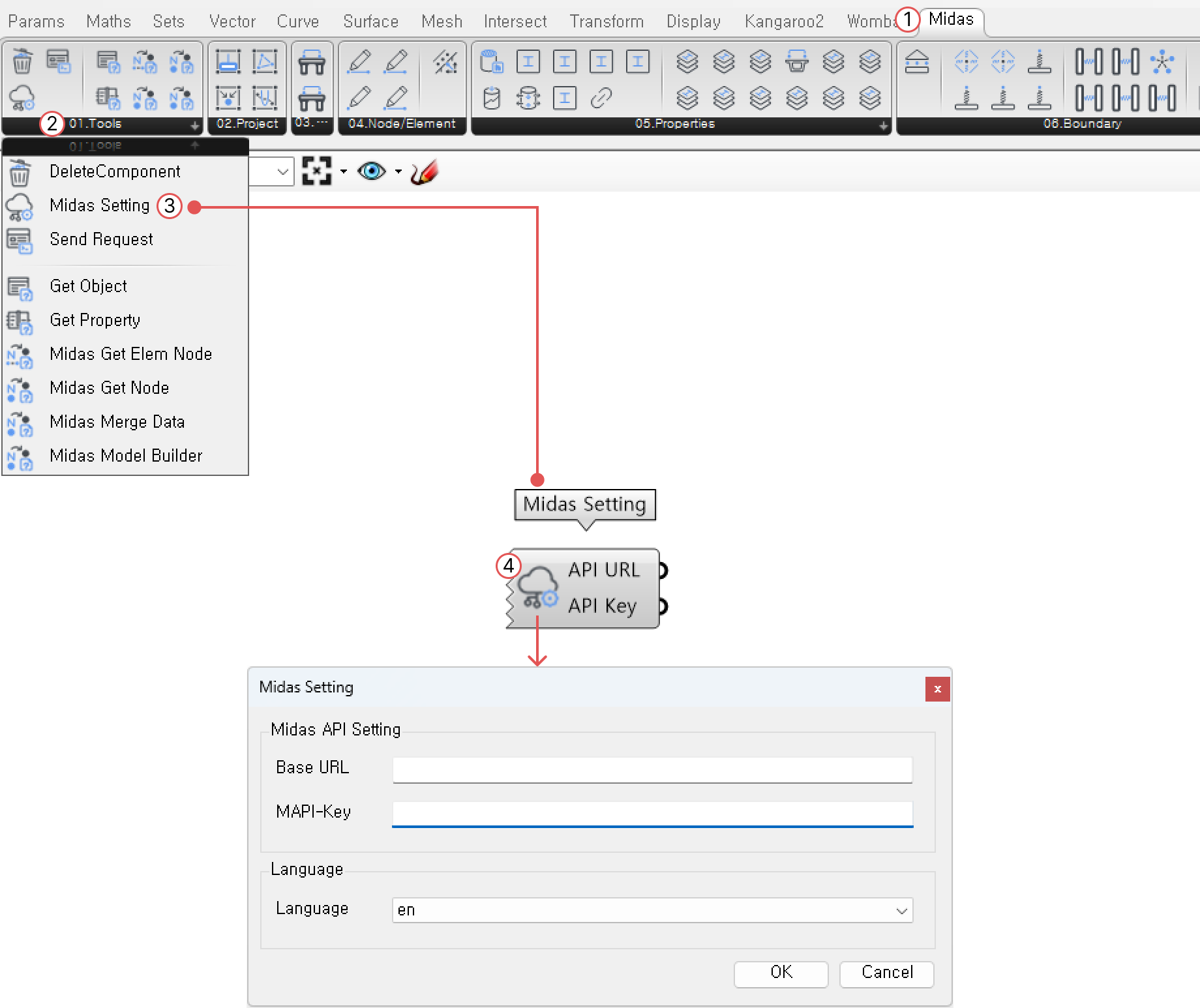

Execute the Grasshopper API Connection Component
1. In Grasshopper, navigate to:
① [Midas] > ② [Tools] > ③ "Midas Setting" component, and execute it.
2. Double-click the ④ icon in the "Midas Setting" component to open the "Midas Setting" window.

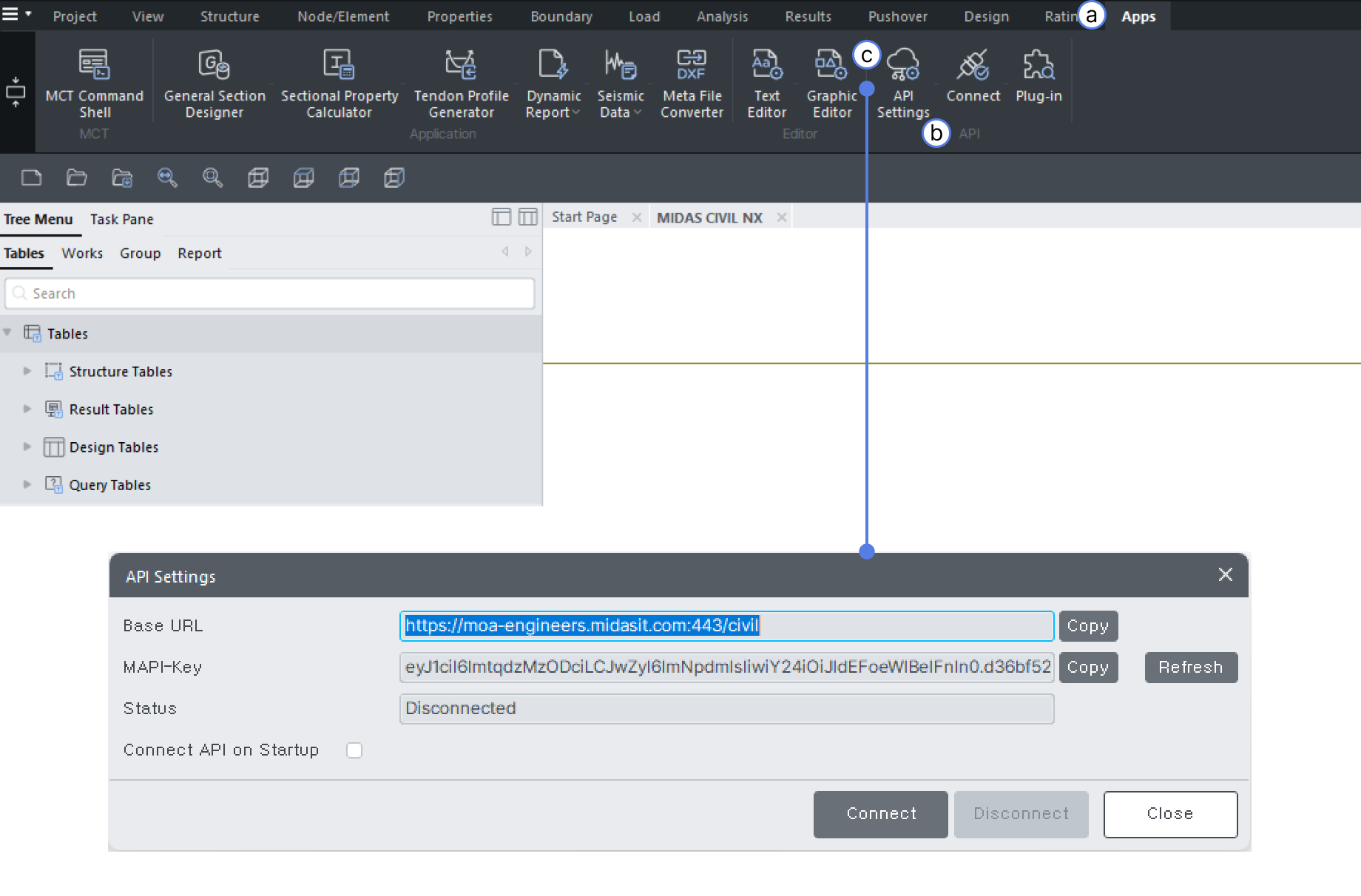

CIVIL NX API Setting
1. In CIVIL NX, navigate to:
ⓐ [Apps] tab > ⓑ [API] group > ⓒ Midas Settings, and execute it.

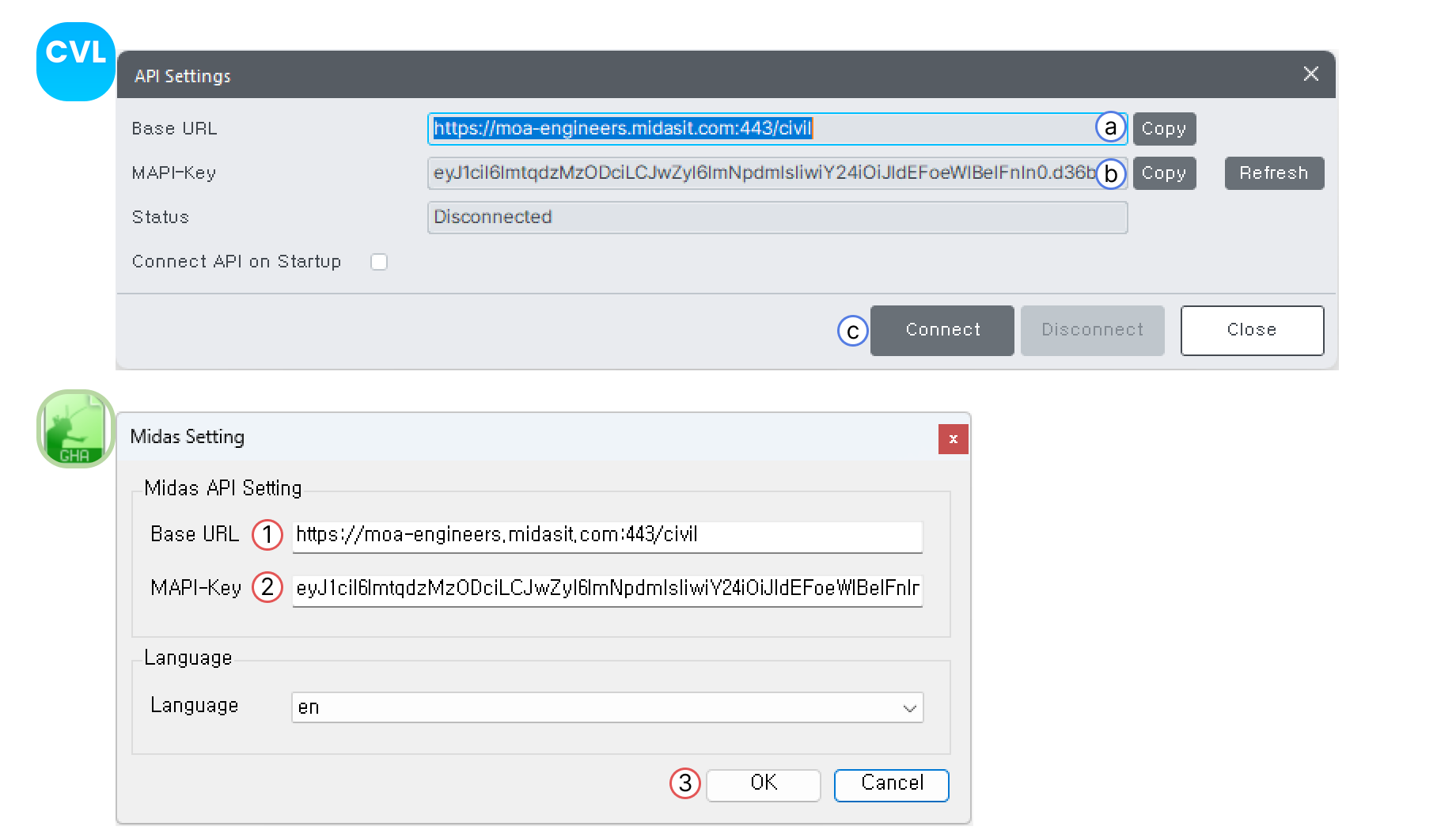

API Connection
1. In CIVIL NX, click the "Copy" button for ⓐ Base URL.
2. Paste the copied value into ① Base URL in Grasshopper.
3. In CIVIL NX, click the "Copy" button for ⓐ MAPI-Key.
4. Paste the copied value into ① MAPI-Key in Grasshopper.
5. In CIVIL NX, click the ⓒ "Connect" button.
6. In Grasshopper, click the ③ "OK" button.
Once connected, the Midas Setting in Grasshopper retains the settings information. It only needs to be updated if the MAPI-Key changes.
