Question
How to extract high quality images from CIM?
Answer
In CIM, several options are available to share real time model images. This can be achieved with the help of Export function. One of the export options available is the (.png) file format.
The Export function in CIM can be accessed from the interface as shown in the image below.

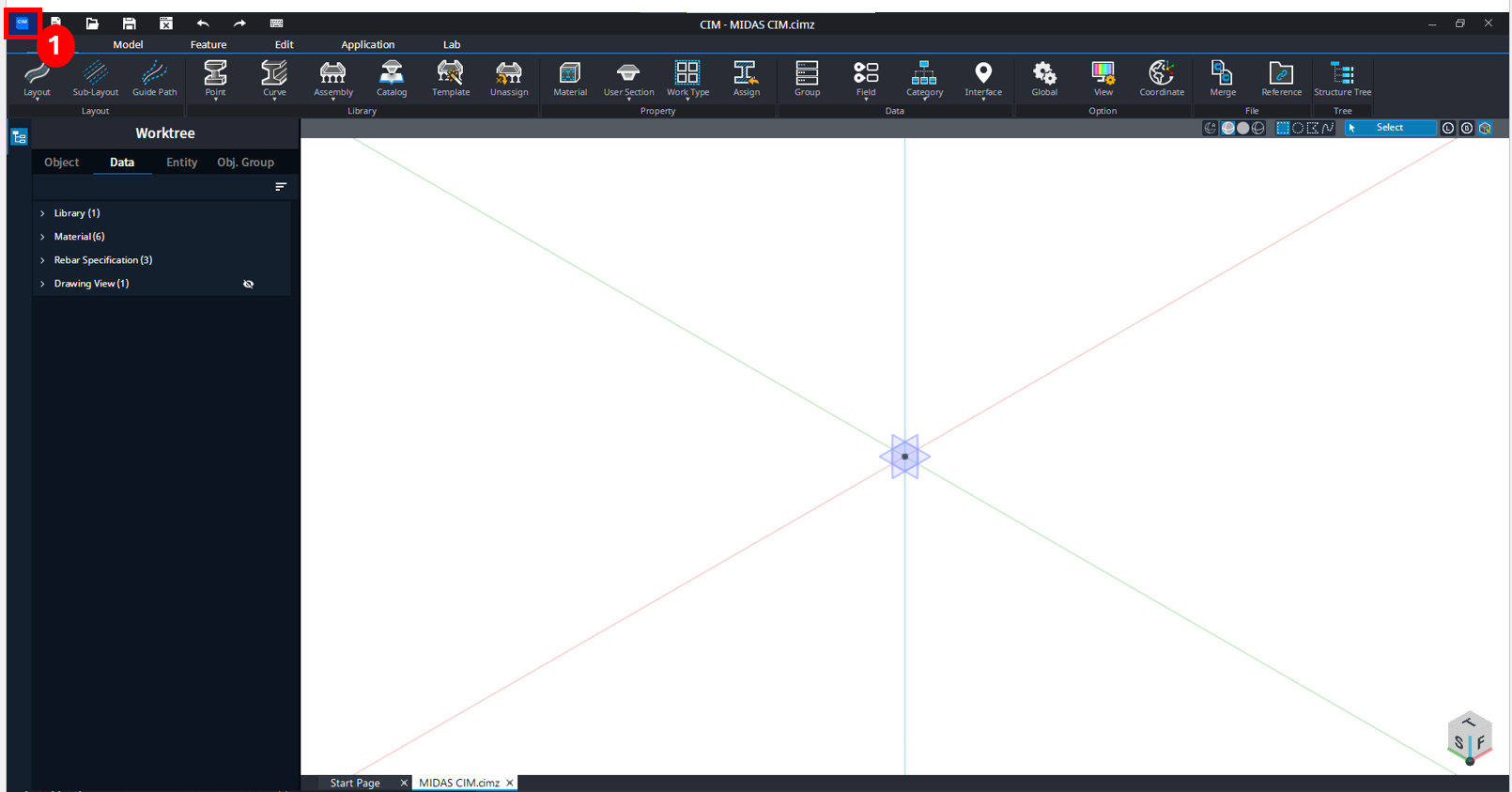

Step 1 - Click on the CIM icon
A sub menu appears in the interface.

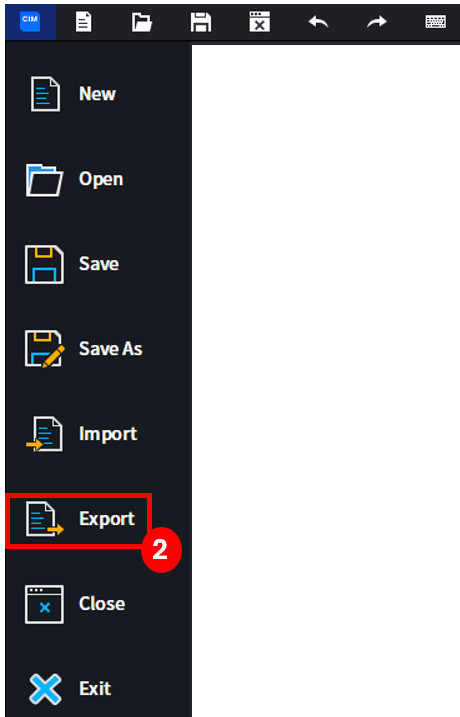

Step 2 - Click on Export (as shown in the image below)
Next, under the Export sub menu, we find all the available export file formats/types

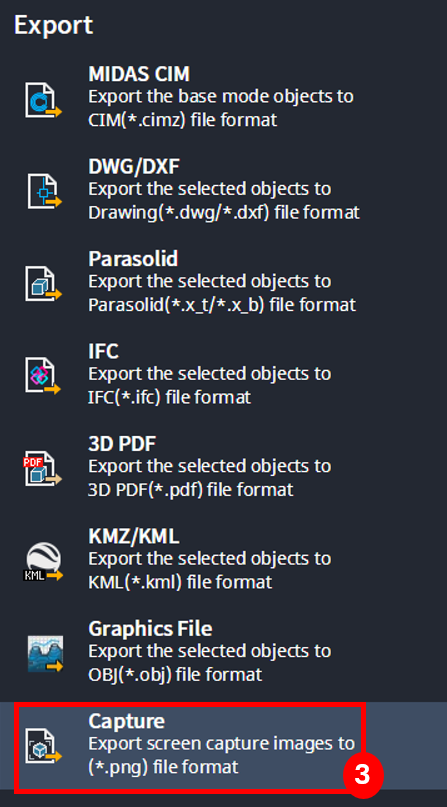

Step 3 - Click on Capture (as shown in the image below)

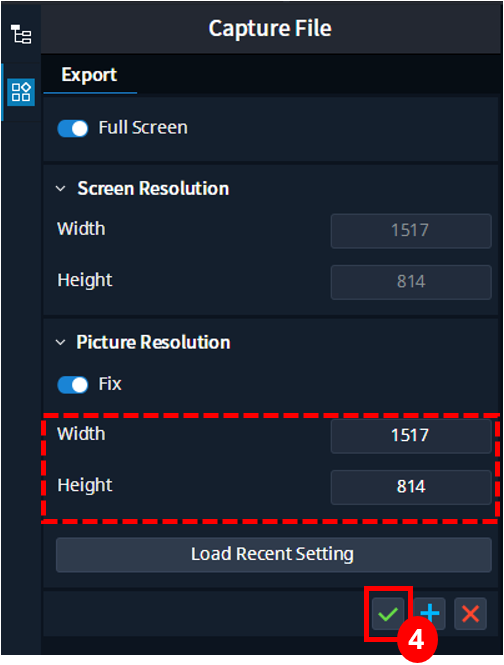

Next, the properties panel shall display the export constraints to choose. Keep the default selection or change as per output requirement.
Keep the Full Screen button checked ON.
The Screen Resolution is detected and displayed by the program (as per the screen used for the interface)
Under the Picture Resolution Width and Height can be altered as per the output requirement.
Step 4 - Click on the green tick to apply and close the function (as shown in the image below)
Above image highlights the model used for the PNG file export, in the base mode of CIM.

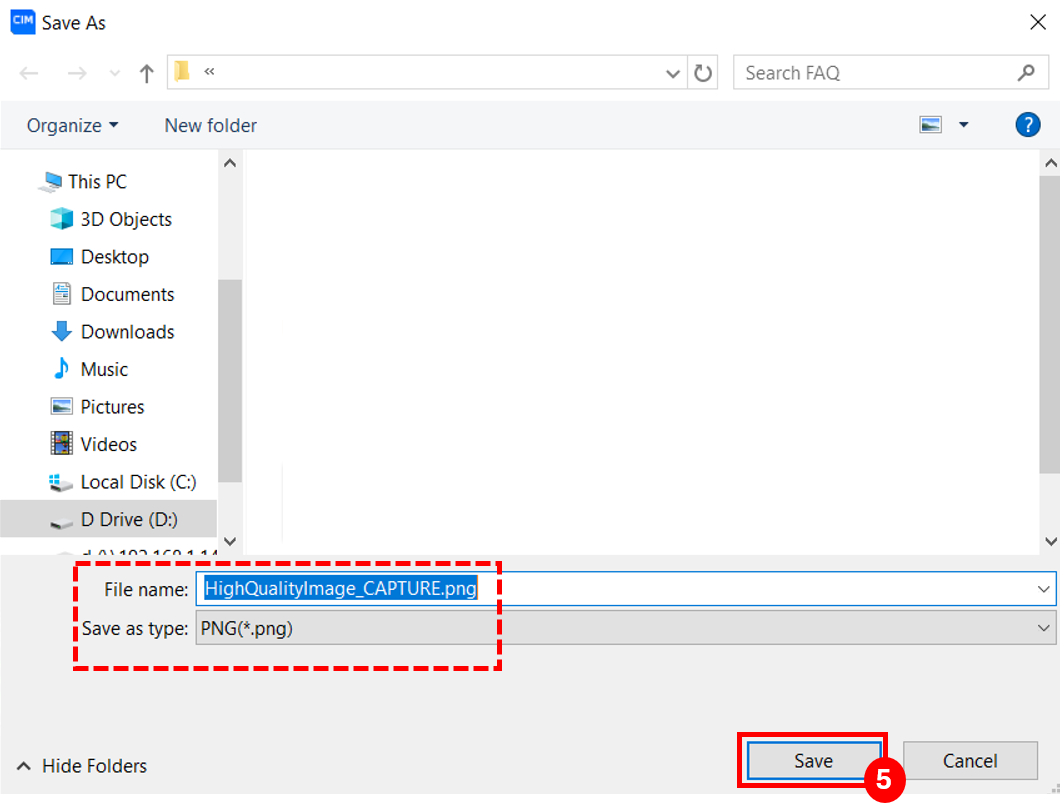

Next, in the Save as window provide a path and a file name for the output file to be saved.
Step 5 - Click on Save. (as shown in the image below)
The image with (.png) file is successfully exported from the CIM model.
