[CIM] How can multiple body members be converted into member elements simultaneously?

Question

How can multiple body members be converted into member elements simultaneously?

Answer

Follow the steps below to convert multiple body elements into member elements:

For the demonstration, we created a few Body elements in the Base mode of CIM.

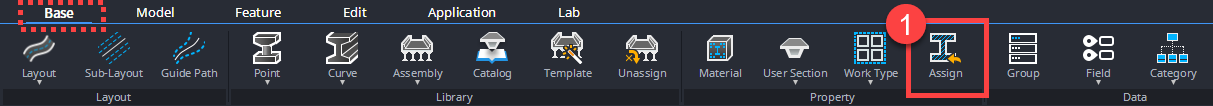

Step 1: In the "Base" ribbon, go to the Assign option

(This option is available in each major mode of CIM, like Point Library mode, Curve Library mode and Assembly unit mode)

A menu panel shall appear on the left of the model window.

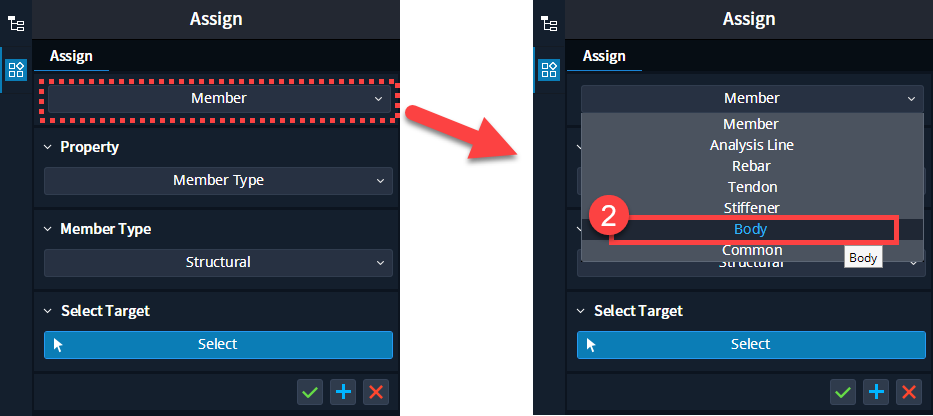

Step 2: From the 1st dropdown menu, at the top, select the Body option

The Menu Panel will be updated with options related to the Body element.

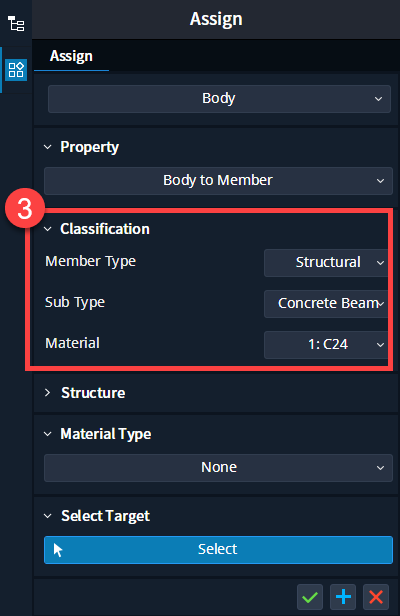

Step 3: Under the Classification sub-section, change the parameters as per your requirement.

Member Type:

• This option lets you define the overall classification of the member you are modeling. You can choose from:
  1. Structural Member: Members that will actively contribute to the structural behavior of the bridge or structure (like Deck Slab, Girder, Abutment, etc.). These members will appear in the Analysis mode of CIM.
  2. Non-Structural Member: Elements that are part of the model but do not participate in the structural load transfer (like guard rails, parapets, etc.). These members will not appear in the Analysis mode of CIM.
  3. Void Member: Used for cut-outs or openings in the structure, like holes for cables or pipes. These don’t carry structural or non-structural properties.

Sub Type:

• The available subtypes are dependent on the Member Type selected:

  • For Structural and Non-Structural Members:
    You can choose specific element types such as:

    1. Beam
    2. Column
    3. Wall
    4. Plate

    The options will be available for both Concrete and Steel materials.

  • For Void Members:
    Since Void members are used solely for cuttings and openings, no subtype option is provided.

Material:

• After selecting the Sub Type, the software will automatically update the Material dropdown based on the element type selected:
  • For Concrete members, available concrete grades will be listed.
  • For Steel members, available steel grades will be listed.

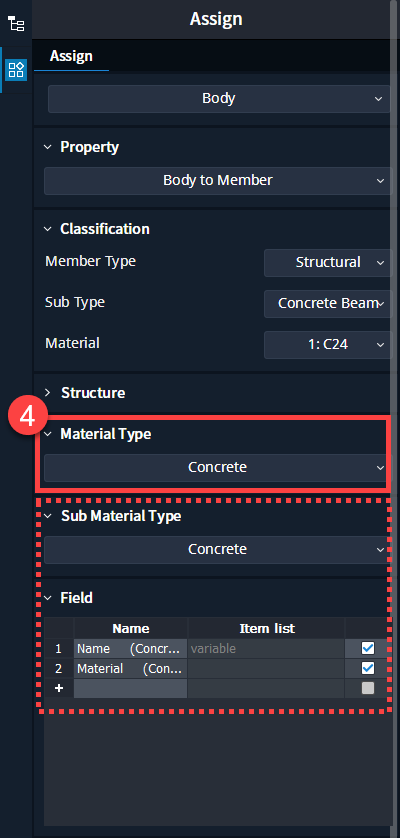

Step 4: Under the material type subsection, choose the material type for entering the field data.

Once the material type is chosen, the field data will be updated in the menu panel.

If you don't want to enter the Field data to resultant elements, choose the None option in the Material type.

Step 5: Using the cursor cross-selection select the Body elements you want to convert to Structural Members

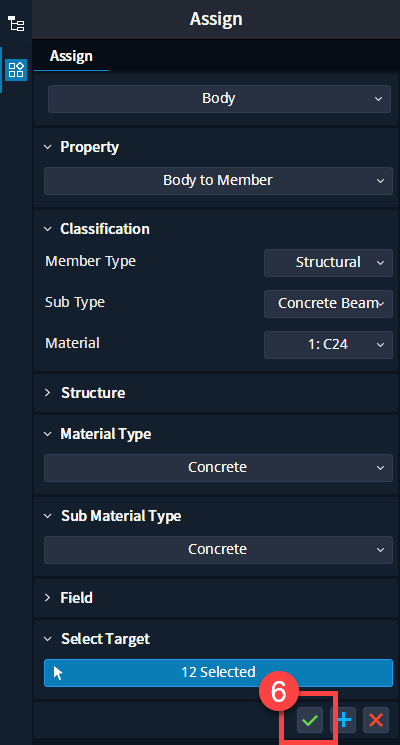

Step 6: After selection of Body elements, click on the      button to convert the elements to desired member elements.

For verification: Select any body element that you converted to member elements in step 6. Go to the Properties of these element by pressing Alt+2 key.

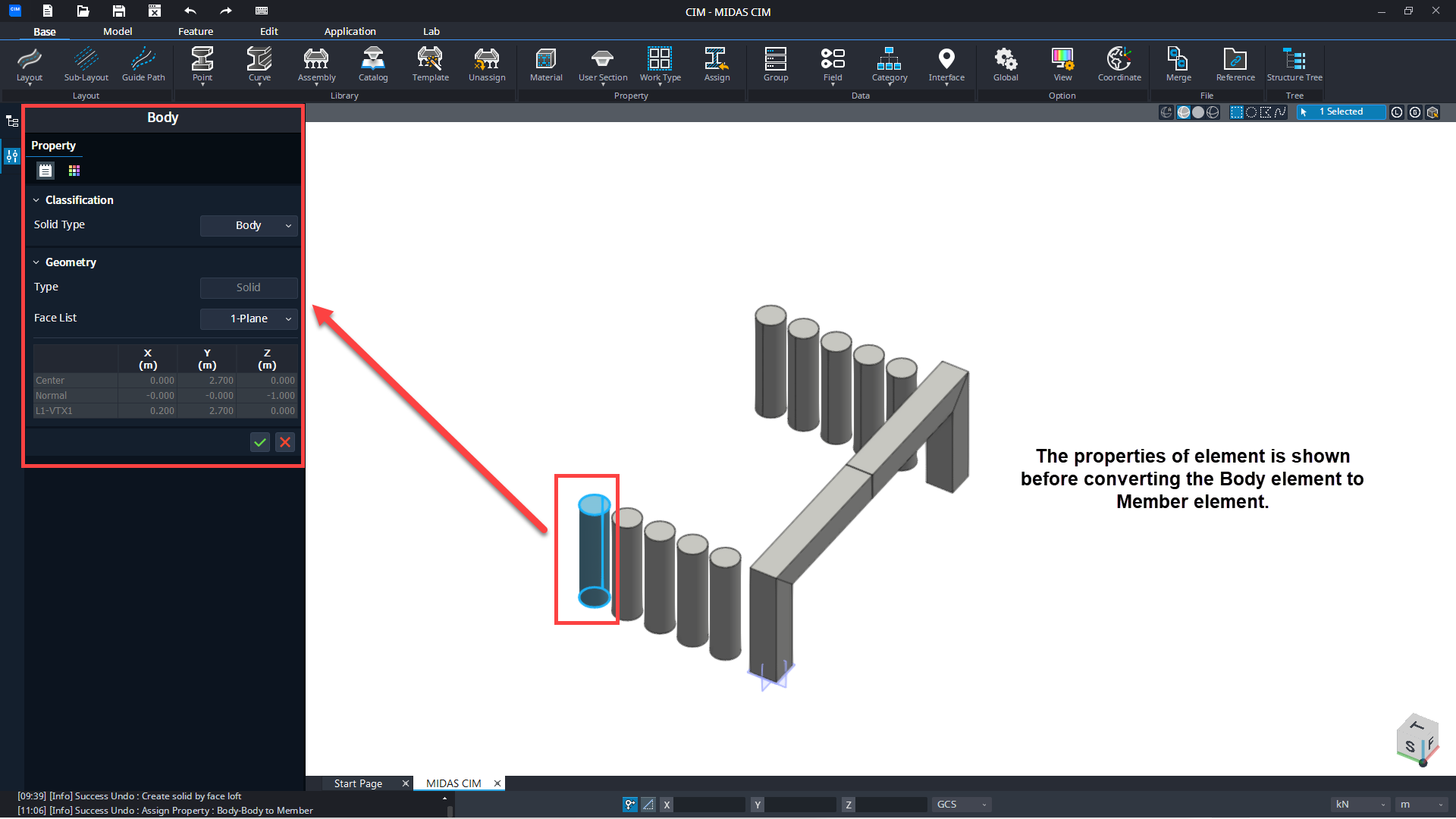

Image: Before conversion

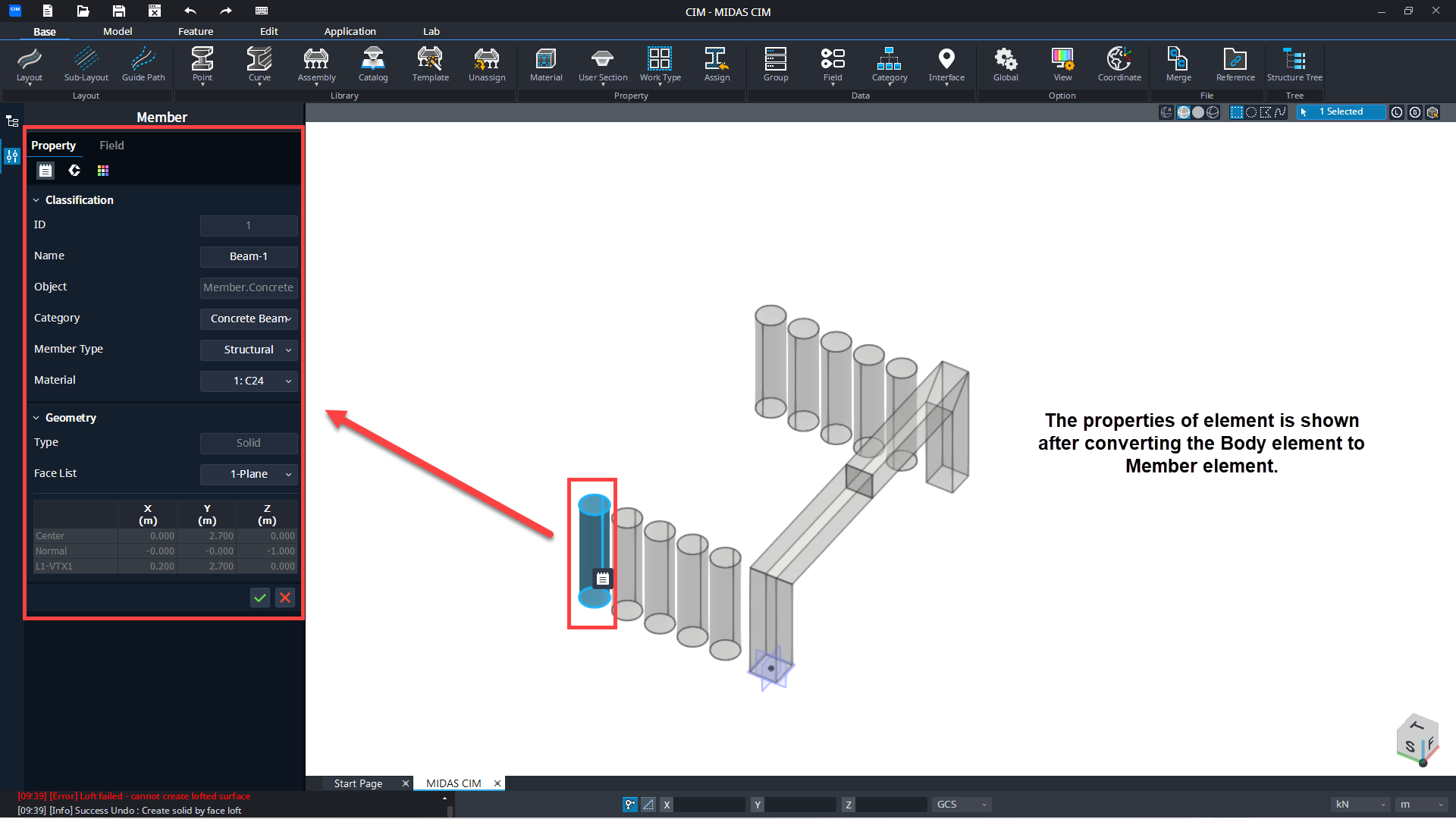

Image: After conversion

That is how, by following these easy steps, you can convert single or multiple body elements to Member elements.
