Question
How to modify the coordinates of a point library in assembly mode?
Answer
In CIM, when working in the modelling environment, users may need to modify library elements in the assembly
unit mode. An example of modifying the coordinates of a library of bearings (point library) is highlighted below.

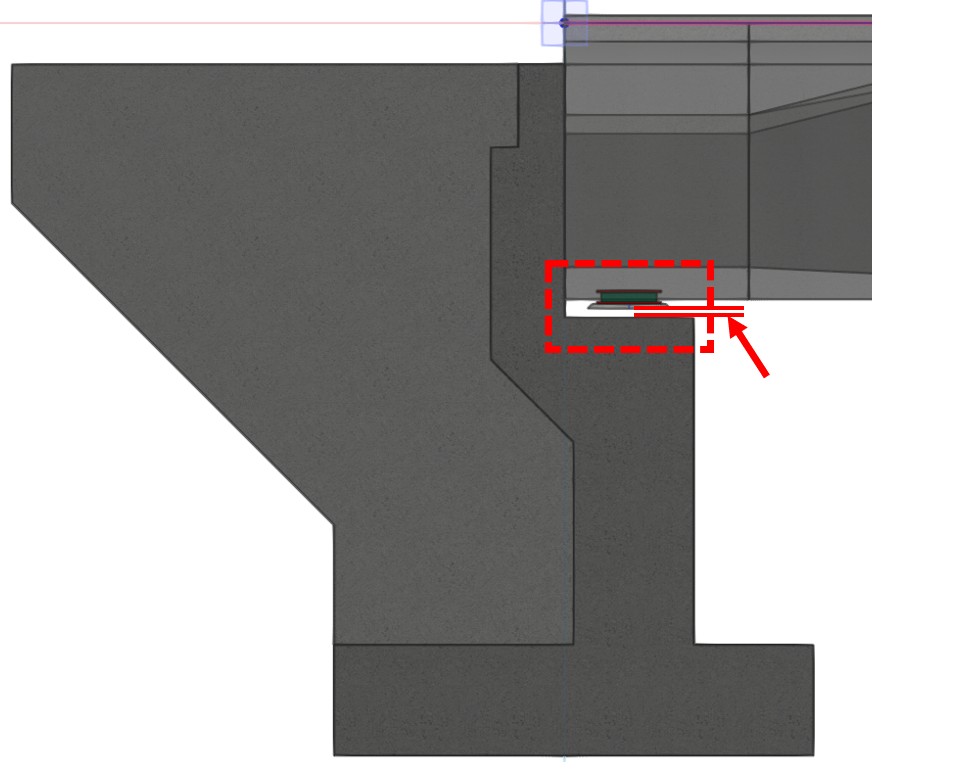

Here, in the assembly library mode multiple libraries are assigned. Now the library for bearing after placement
might require additional offset coordinate value to fit exactly on top of the library for Abutment pad as shown in
the image below.
Now, to modify the bearing coordinates we use the following steps-

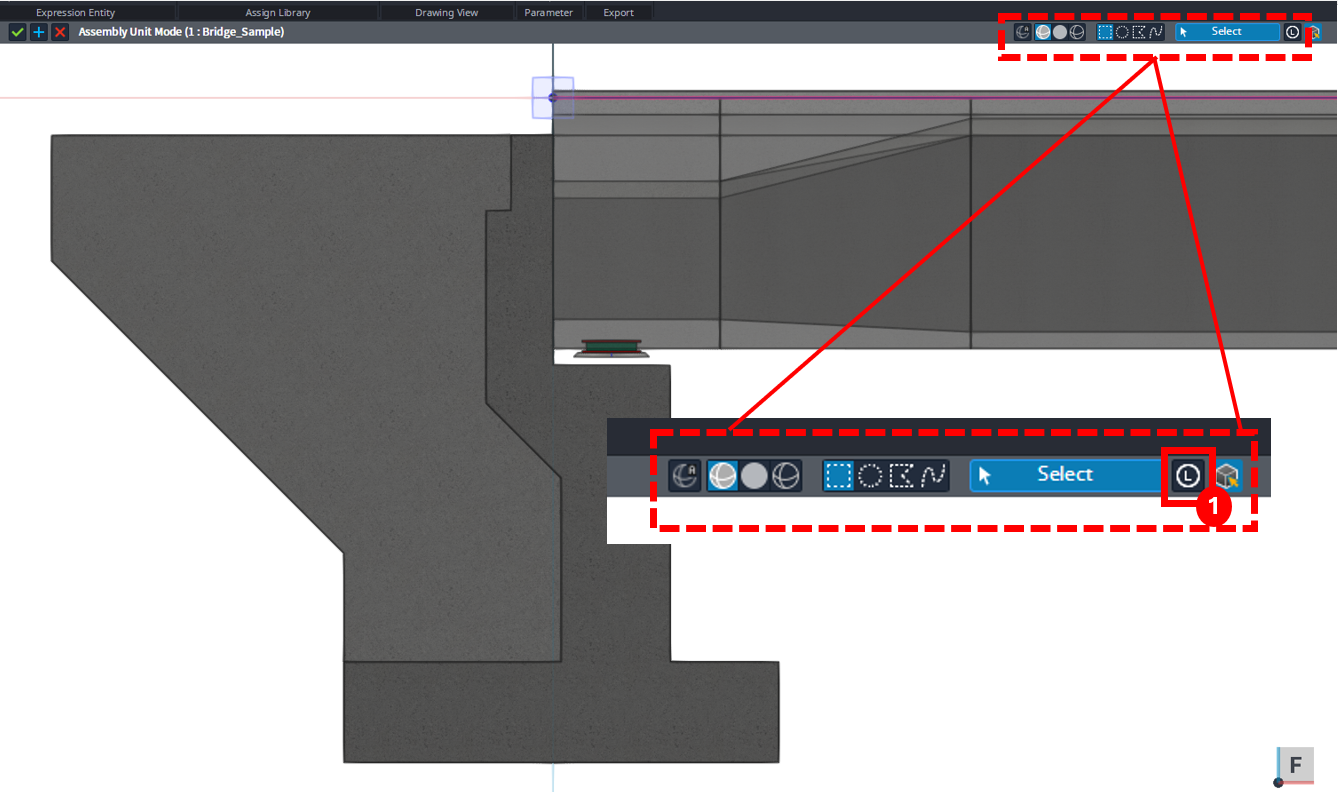

Step 1 - In the Assembly unit mode click on the icon to activate the select assigned library function
Now, in the Worktree menu select the properties display option
Step 2 - Click on the icon to activate the properties function

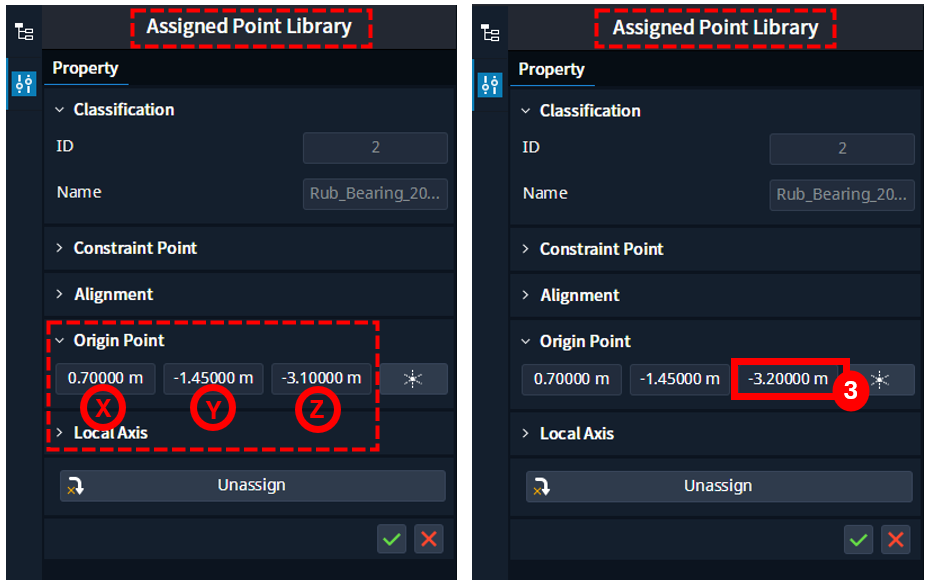

The Properties for the selected library type shall be displayed in worktree menu, to revise the coordinate values
in the properties panel, the sub function Origin Point should be used. This function is available for PLBs
(point libraries) and the coordinates can be controlled in X, Y, Z values of the Cartesian Coordinate system.
Step 3 - Enter the revised value in the Z coordinates window as -3.2m
Now, once the new Z value is entered to apply the property use the green tick as shown below

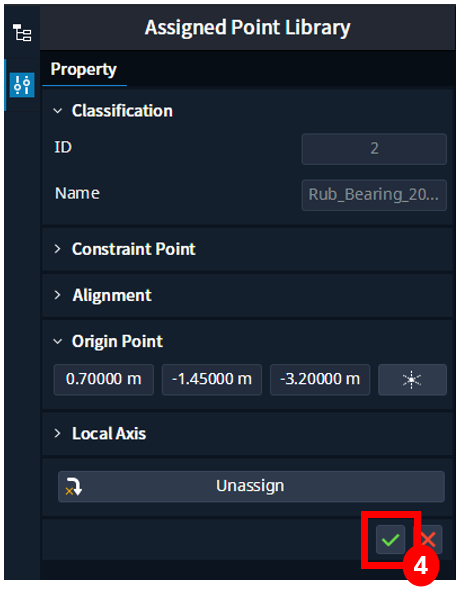

Step 4 - Click on the Green tick to apply the function and close the command.

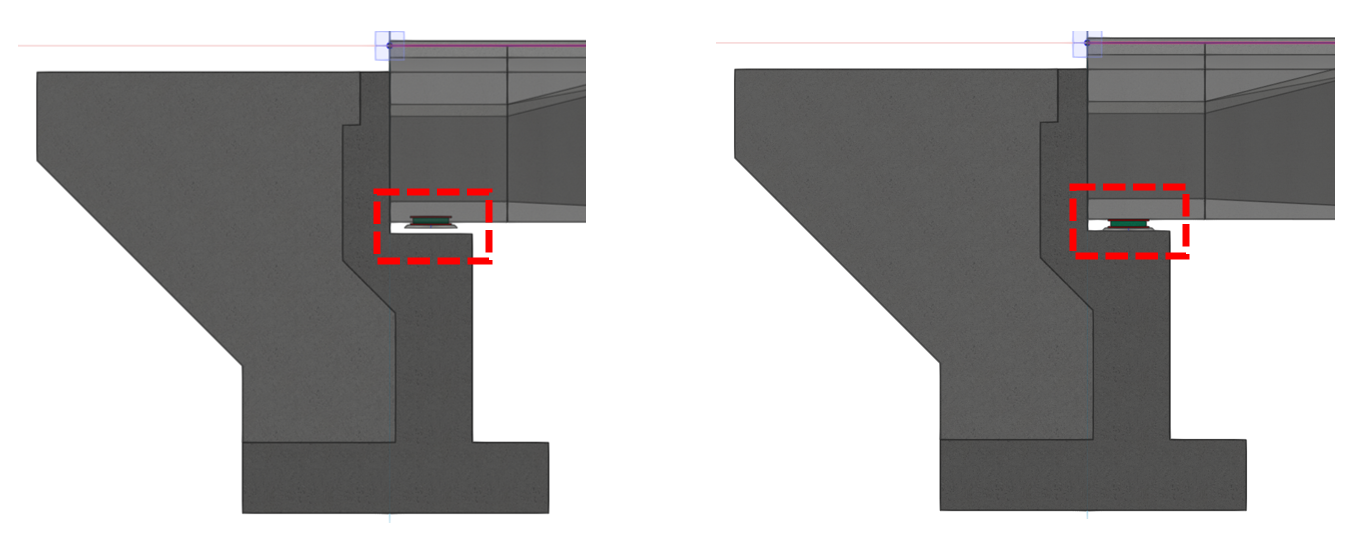

Now, we observe that the bearing library is placed exactly on top of the Abutment pad as shown below.
The coordinates modify function is complete.
