Question
How to create user-defined material properties?
Answer
Follow the steps below to create user-defined material properties in CIM:

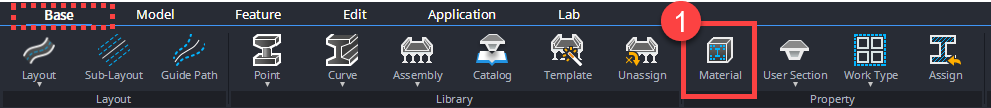

Step 1: In the Base ribbon, click on the Material option
[Material option is available in all four major modes, like Point library mode, Curve library mode, Assembly unit mode and Base mode.]

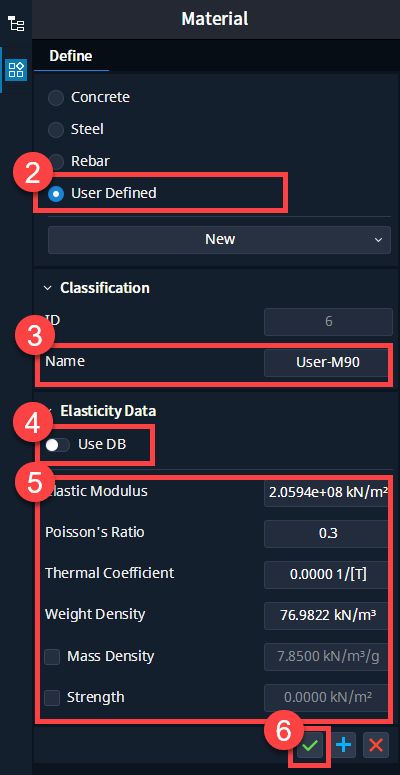

Step 2: In the menu panel, select the User Defined option
Step 3: Assign the name as per your convenience
Step 4: Turn off the Use DB option under Elasticity data
Step 5: Assign the required values, like Modulus of Elasticity, Poisson's ratio, etc.
Step 6: Click on to Save the user-defined material properties
Following the steps mentioned above, we can easily create user-defined material properties in the CIM project.
