Question
How to define the Structure Tree in CIM?
Answer
Follow the steps below to define the structure tree in CIM:

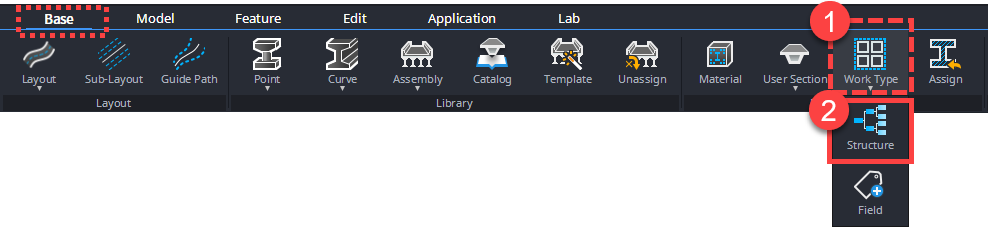

Step 1: In the Base ribbon, click on the drop-down of the Work Type option
Step 2: From the drop-down menu, Click on the "Structure" option
[This option is available in all the major modes of CIM like Point library mode, Curve library mode, Assembly unit mode and Base mode.]
Note: This FAQ only explains how to define the structure tree in a CIM project.
To learn how to assign model elements—such as members, rebar, tendons, and stiffeners—to the structure tree, please refer to the separate FAQ:
"How to assign structure tree to components of the model?"

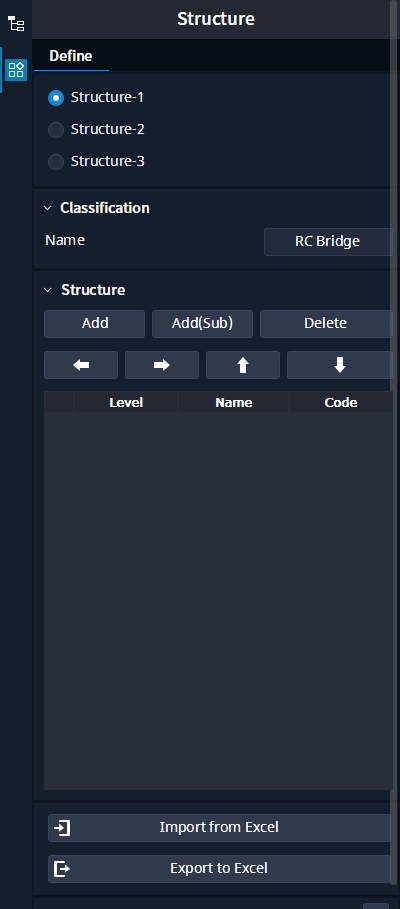

A menu panel shall appear on the left of the modelling window.
- 3 Structure Tree can be defined
- Structure-1
- Structure-2
- Structure-3
-
Name: Assign the name of structure
- Example: 1.-- RC T Girder Bridge
-
Add: Adds a main branch of structure tree in the table
- Example:
- 1.1--Pier_A
- 1.2--Pier_B
- Example:
-
Add(Sub): Adds a sub branch of main branch
- Example: (Adding sub branch for "1.1--Pier A")
- 1.1.1--Pier Cap
- 1.1.2--Pier
- 1.1.3--Foundation
- Example: (Adding sub branch for "1.1--Pier A")
- Delete: Deletes selected row
-
Import from Excel: Entire structure tree will be imported from Excel sheet
- Configure the Excel table with identical column headings to maintain consistency.
- Export to Excel: Entire structure tree will be exported from Excel sheet
🔗For detailed explanation, watch the video attached below:
