Question
How to activate CAD ID from CIM?
Answer
In a CIM model, when drawing views are generated with the help of CAD ID to access these views, users should
activate the CAD ID interface from CIM. An example highlighting the steps is shown below.
In the CIM interface, navigate to the Applications menu.

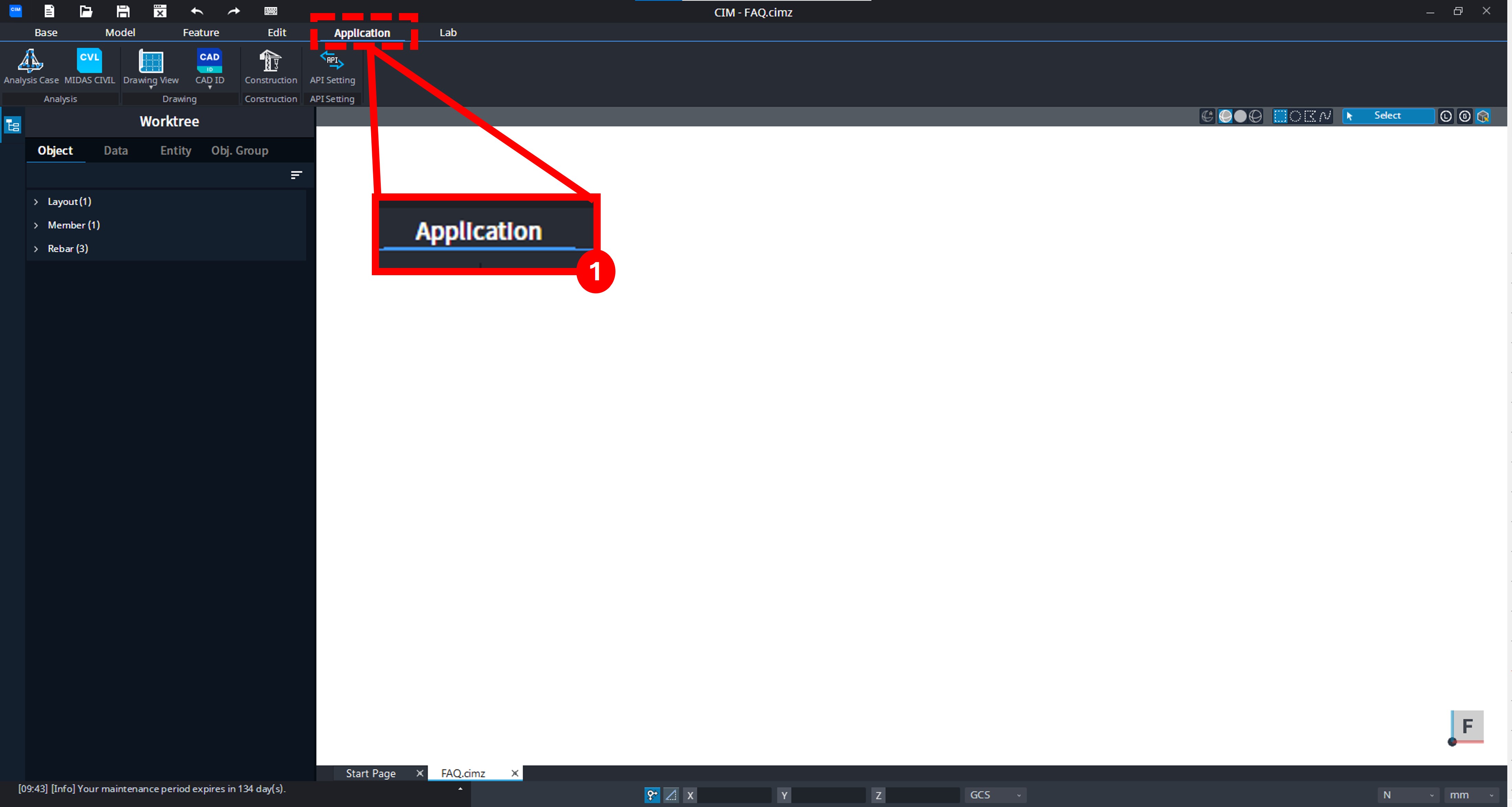

Step 1 - Click on Application icon in the ribbon menu.
From the sub menu.
Step 2 - Click on arrow pointing in the downward direction on CAD ID icon.
In the drop down sub menu, navigate to the Run icon.
Step 3 - Click on Run icon
This step integrates to the CAD ID interface as shown below.
To access the drawing views in the CAD ID window, refer the article here
